Three-Wire Connection
· Connect red wire from oven to red wire in junction box.
· Connect black wire from oven to black wire in junction box.
· Connect green ground wire from oven to gray neutral wire in junction box.
The conduit cable, where connected at the oven, swivels. Rotate conduit cable upward (or downward)
and direct through hole prepared in cabinet to attach to J-Box.
To maintain serviceability, the flex conduit must not be shortened and should be routed to permit
temporary removal of the oven. (See Figure 4)
11

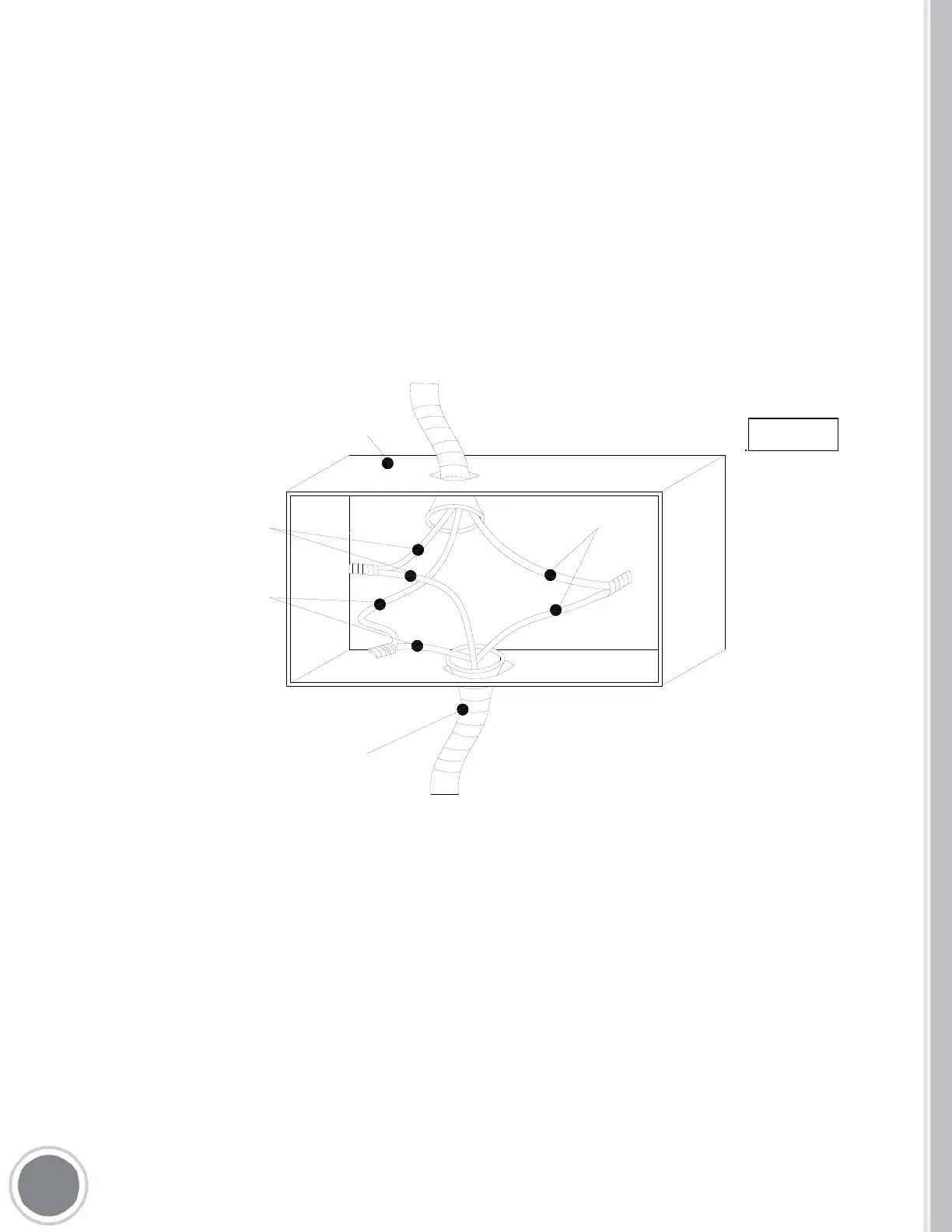

Cable from
power supply
Cable
from oven
Grounded Neutral
U.L.-Listed conduit connector
Black wires (Black)
Red wires (White)
Green wires (Ground)
Junction box
Figure 4
