24

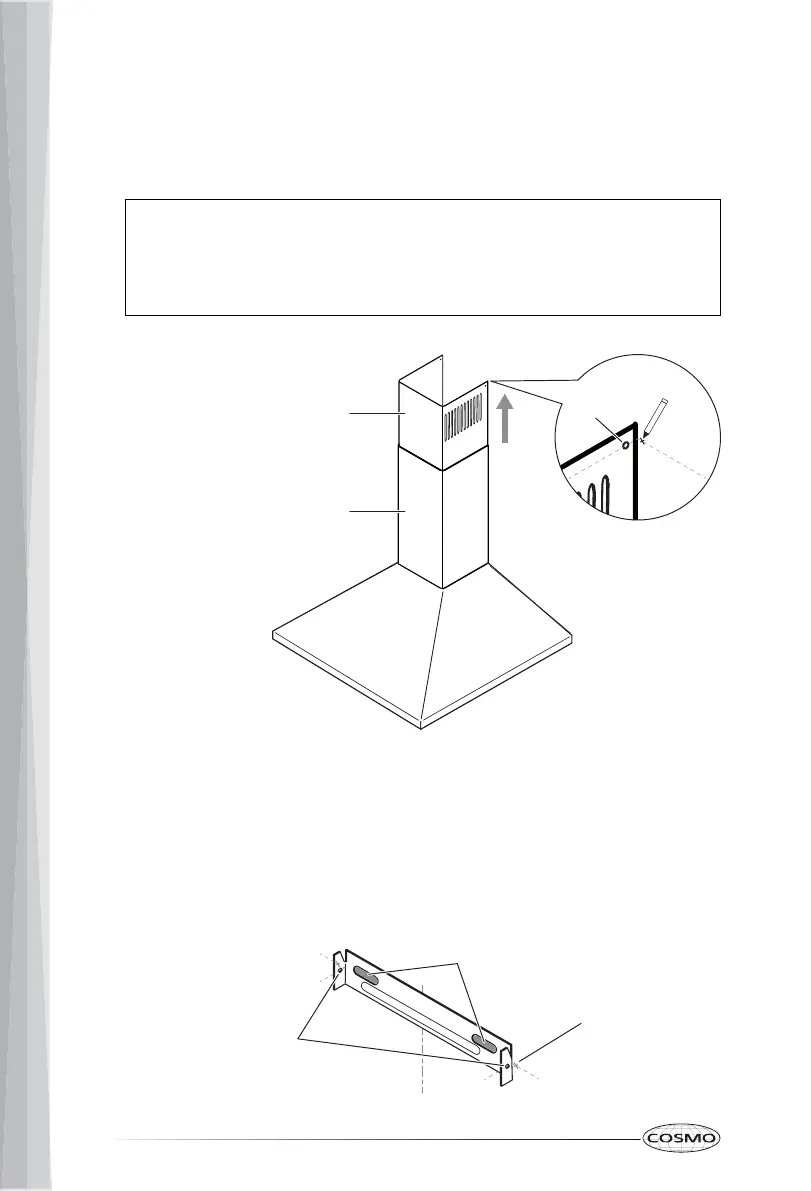

3. Lift inner (upper) chimney to ceiling. Using a pencil, mark on the wall
adjacent to the inner chimney the center of the screw locations near the
top on both sides of the inner chimney. Carefully slide the inner (upper)
chimney down.
NOTE:
• For ductless (recirculating) installations, the venting holes near the
top of the inner (upper) chimney should be exposed from the outer
(lower) chimney to allow air recirculation.
4. Align the center of the inner chimney support bracket with the centerline
on the wall, and align the screw hole on both sides of the support bracket
with the previously marked inner (upper) chimney screw locations on the
wall. Make sure the support bracket is level, and mark the (2) mounting
screw locations.
Outer (lower) chimney
Inner (upper) chimney
WALL
Screw
location
Centerline
Mounting screw
location
Screw hole
Marked chimney
screw location
To Next Page
