Venting Methods
• This range hood is factory set for venting through the roof or through the
wall. The exhaust opening is 6" (15.2 cm) round. A 6" (15.2 cm) round duct
system is recommended. The duct system needed for installation is not
included.
• If it is not possible to vent cooking fumes and vapors to the outside, the
range hood can be used in the ductless (recirculating) version, using a
charcoal filter kit. To order, see "Optional Parts" in the "Tools and Parts"
section.
NOTE:
• If exhaust ducting is less than 5.91" (15.0 cm) in diameter or if flat
ducting is used, the noise level of the range hood may increase and the
exhaustion may be less efficient.

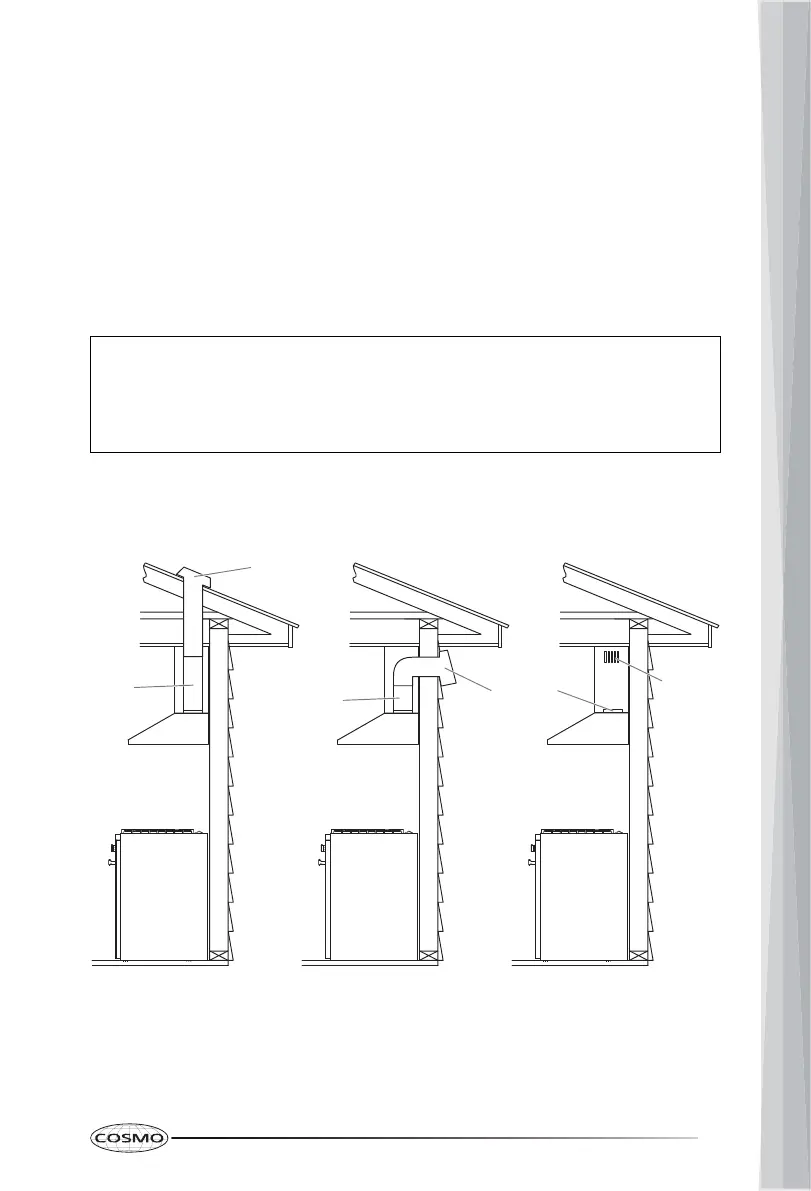

RRooooff VVeennttiinngg WWaallll VVeenntitinngg DDuuccttlleessss ((NoNonn--VVeenntteedd))
A. Roof cap
B. 6" (15.2 cm) round
duct
A. Wall cap
B. 6" (15.2 cm) round
duct
A. Duct opening
B. Chimney venting
holes
A
B
A
B
A
B
