25

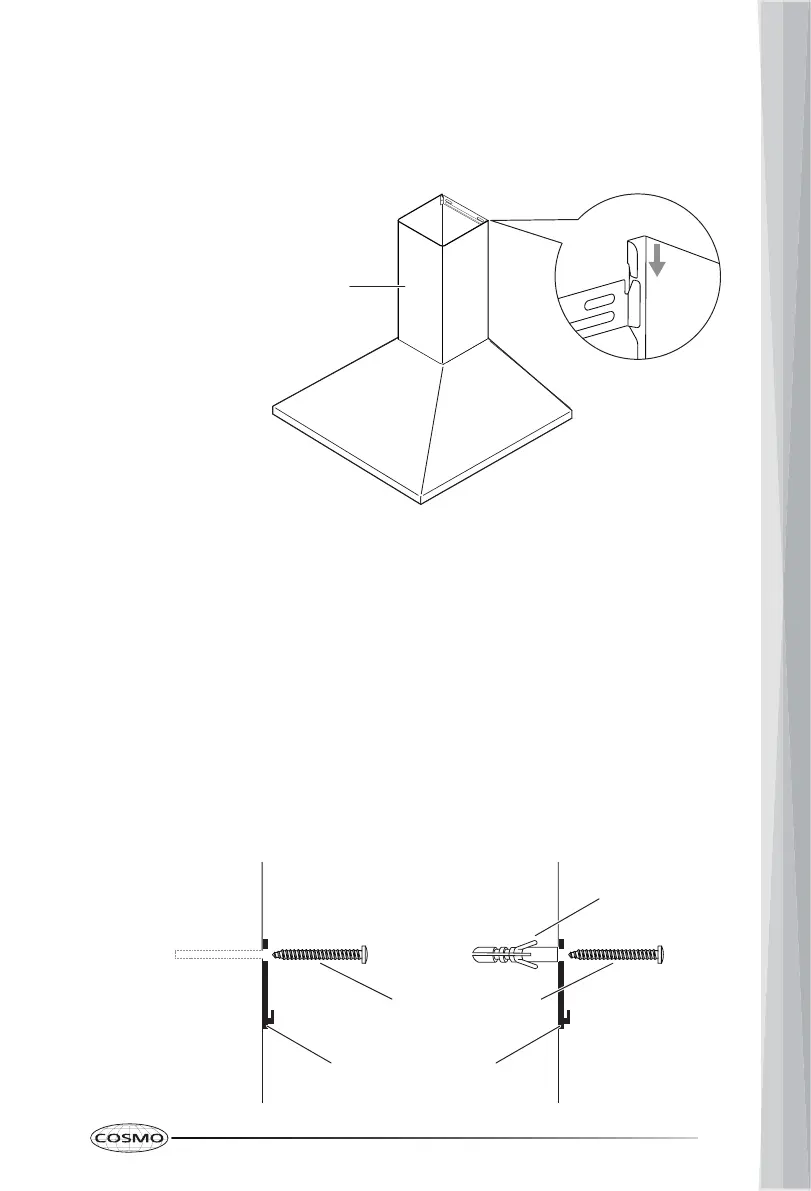

5. Position the outer chimney support bracket on the wall with the top of the
outer chimney hooking onto the support bracket on both sides. Align the
center of the support bracket with the centerline on the wall, and make
sure it is level. Mark the (2) mounting screw locations of the support
bracket.
6. Rest chimneys and range hood on covered surface.
For wood, drill 5/32" (4mm) pilot holes at all locations where mounting
screws are being installed into wood.
For wall anchors, drill 5/16" (8 mm) holes at all locations where wall
anchors are being used.
7. Attach chimney support brackets to the wall with (2) mounting screws
each.
For wood, install the 4 x 30 mm mounting screws.
For wall anchors, install the 8 x 35 mm wall anchors and install the 4 x 30
mm mounting screws into the wall anchors.
Outer (lower) chimney
WALL
WOOD STUD
Mounting bracket
Wall anchor
Mounting screw
