5. Place both inner (upper) and outer (lower) chimneys onto hood, and hang
outer chimney onto the lower support bracket on the wall. The inner
chimney must slide into the outer chimney.
NOTE:
• To help prevent scratches, lay paper or a kitchen towel over the
top edges of the outer (lower) chimney to protect the surface.
6. Lift inner (upper) chimney to upper support bracket on the wall, install
with (2) 3 x 10 mm screws on both sides of the chimney, or hang chimney
onto the support bracket.

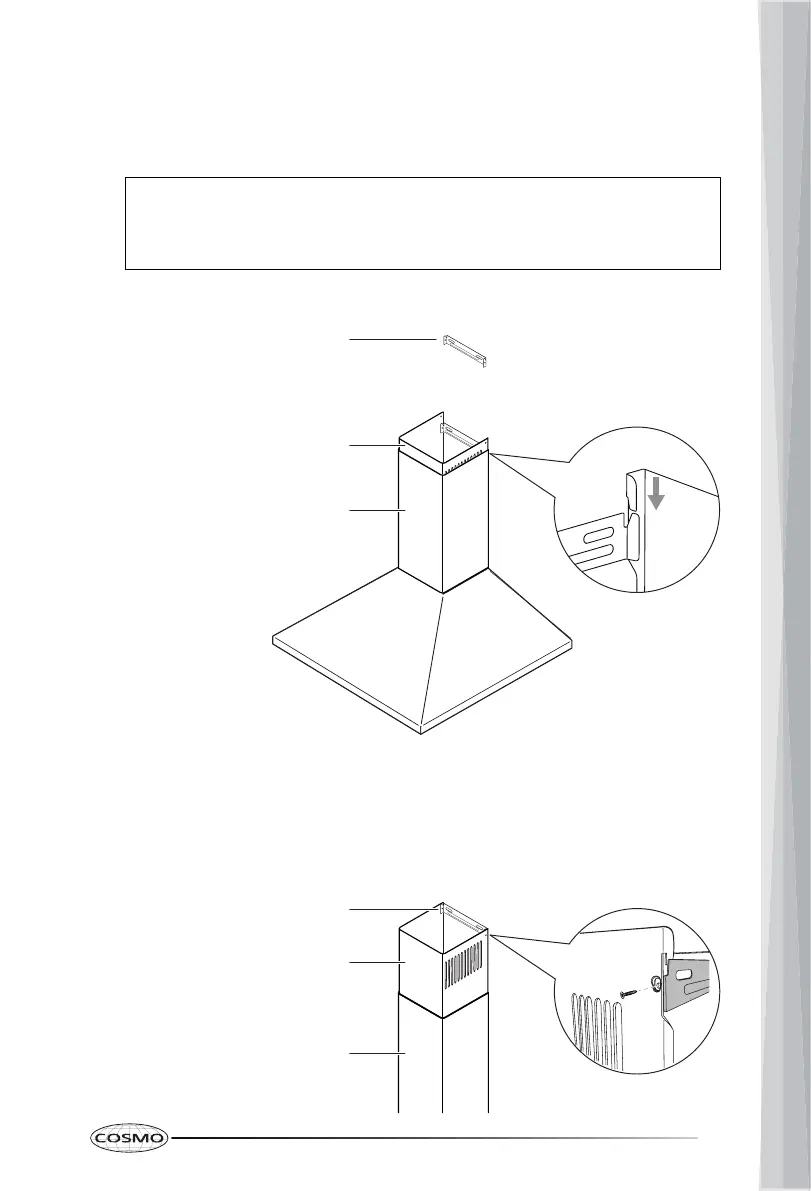

Inner (upper) chimney
Outer (lower) chimney
Inner (upper) chimney
support bracket
Inner (upper) chimney
support bracket
Inner (upper) chimney
Outer (lower) chimney
To Next Page
