13
24 in
(610 cm)
Lower
Cabinet
Depth
13 in
(33 cm)
Maximum
36 in
(91.4 cm)
18 in
(45.7 cm)
30 in
(76.2 cm)
A
6 in
(15.2 cm)
to right
wall
6 in
(15.2 cm)
to left
wall
Overhead
Cabinet
Depth
NOTE:
• 30" (76.2 cm)
minimum clearance between cooking surface and bottom of
the overhead cabinet.
IMPORTANT: If installing a range hood, hood liner, or microware hood
combination above the cooking surface, follow the range hood or
microwave hood combination installation instructions for dimensional
clearances above the cooktop surface.
• 18" (45.7 cm) minimum clearance from upper cabinet to countertop on
either side of unit.
MODEL A
COS-DIC304 30" (76.2 cm)
COS-DIC366 36" (91.4 cm)

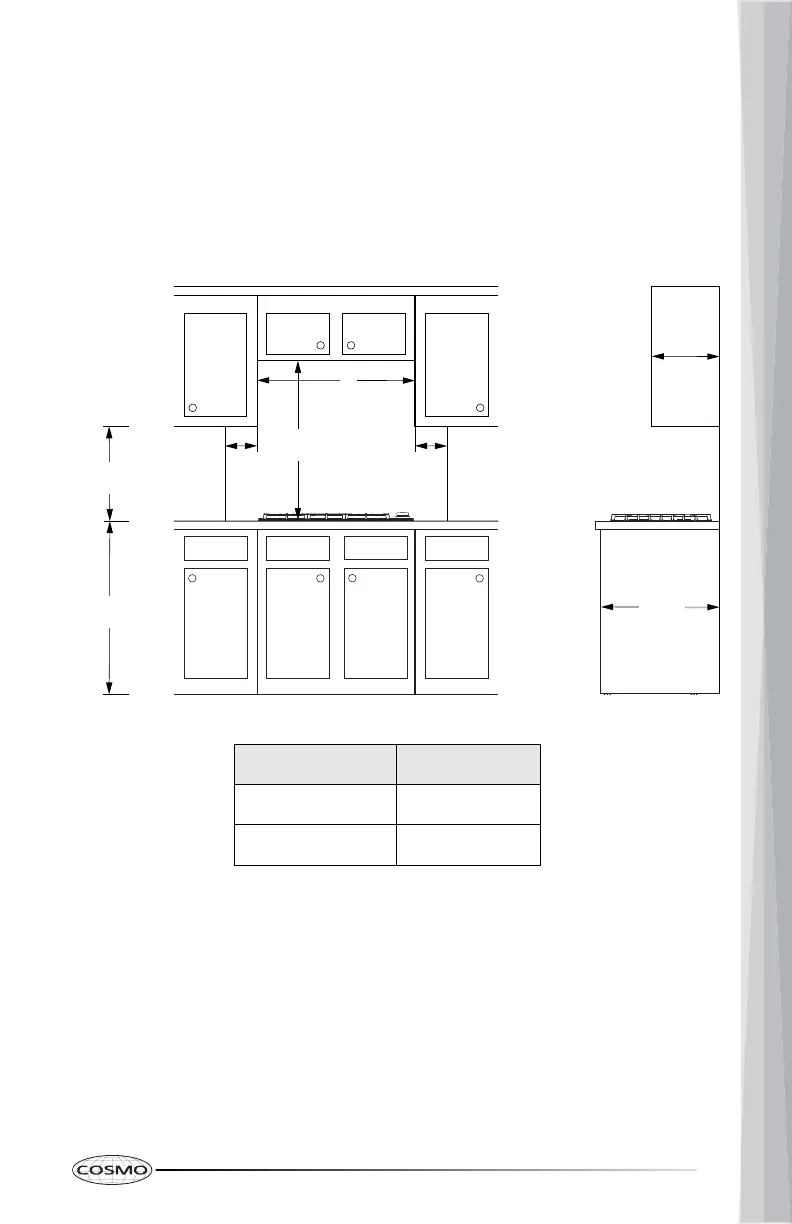

CLEARANCES
IMPORTANT: Some cabinet and building materials are not designed to
withstand the heat produced by the cooktop. Check with your builder or
cabinet supplier to make sure that the materials used will not discolor,
delaminate or sustain other damage.
GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
