20 21

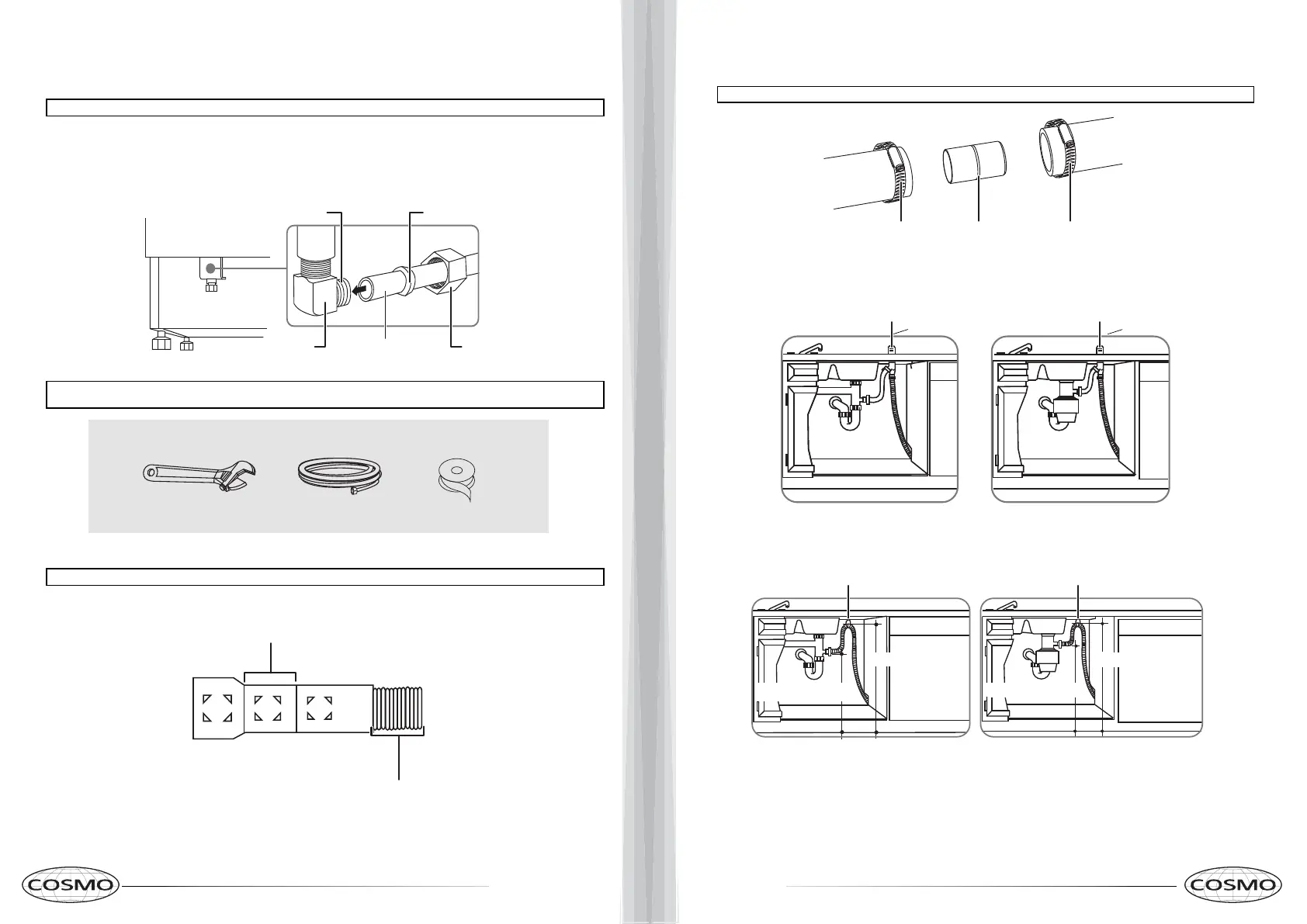

Step 12: Connecting the water supply line
1 Make sure that you wrapped the 90° elbow with Teflon thread seal tape twice.
2 Slide the compression nut, then the ferrule over the end of the water supply line.
3 Insert the water supply line into the 90° elbow.
4 Slide the ferrule against the 90° elbow and secure it with the compression nut.
Step 13: Connecting the drain hose
1 Cut on the marked line as required for your installation. The drain hose’s molded end will fit 5/8”, 3/4” or 1" diameter
connections on the air gap, waste tee, or garbage disposal.
Note:
If you have a steel-grated line, you do not need a ferrule or compression nut.
IMPORTANT: Make sure that the door spring does not rub or contact the water supply line or drain hose. Test by opening and
closing the door. Reroute the lines if interference occurs.
You’ll need:
IMPORTANT: Follow all local codes and ordinances.
Compression nut
Ferrule
Water supply line
90° elbow
Two wraps of Teflon
thread seal tape
Back of dishwasher
Adjustable wrench
Hot water line kit
Teflon thread seal tape
Cutting lines
IMPORTANT: Do not cut
corrugated portion of hose
2 If a longer drain hose is required, you can add up to 42" (1.1 m) of length, for a total of 10 ft. (3.01 m) to the factory
installed hose. Use 5/8” or 7/8” inside diameter hose and a coupler to connect the two hose ends. Secure the
connection with screw-type hose clamps.
3 Secure the drain hose to the air gap, waste tee, or garbage disposal with a screw-type clamp, using the appropriate
method below. See “Drain preparation on page 6” on page 6, if you do not know which method to to use.
Method 1 - Air gap to a waste tee or garbage disposal.
Method 2 - High drain loop to a waste tee or garbage disposal
IMPORTANT: For proper drain operation, the total drain hose length must not exceed 10 ft. (3.01 m).
Screw-type hose clamp
Screw-type hose clamp
Coupler
AirgapAirgap
Waste tee installation
Garbage disposal installation
Fasten to the underside of
the countertop
Fasten to the underside
of the countertop
Waste tee installation
Garbage disposal installation
32 in. (81.28 cm) min.
32 in. (81.28 cm) min.
18 in. (45.72 cm) min.
18 in. (45.72 cm) min.
