12 13

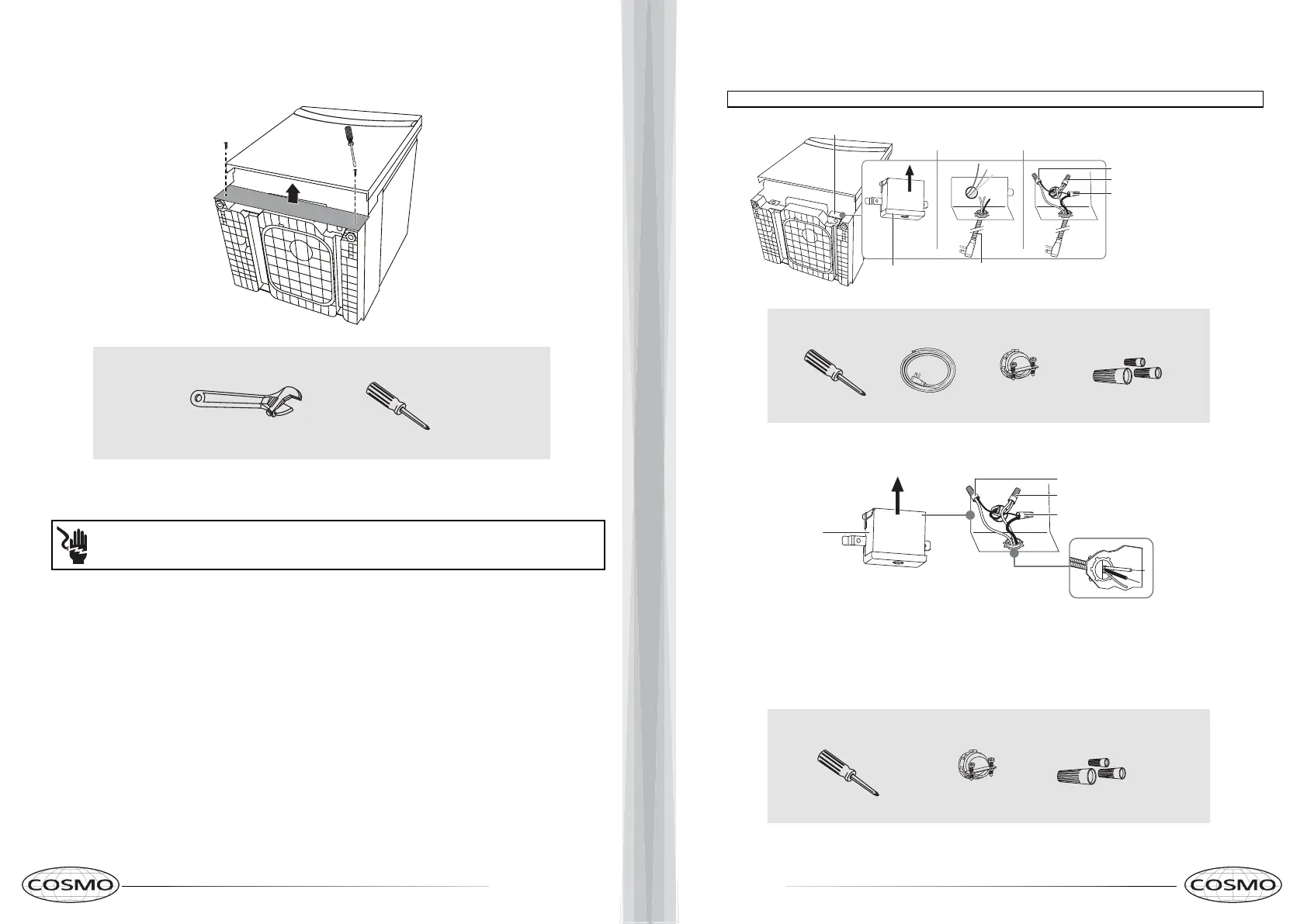

Step 3: Remove the toekick
• Remove the two toekick screws with a Phillips screwdriver, then remove the toekick.
Step 4: Install to power
Turn off the electricity to the dishwasher’s electrical circuit.
Make sure that the electrical power is turned off at the source.
Power cord
1 Remove the junction box cover on the front right of the dishwasher.
2 Make sure that the junction box’s electrical wires are pulled inside of the junction box.
3 Remove the lock nut from the strain relief, then push the strain relief into the round opening of the junction box.
4 Install the lock nut on the strain relief from inside the junction box.
5 Insert the ends of the power cord’s electrical wires into the junction box through the strain relief.
6 Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the black (or smooth) wire to the
dishwasher’s black wire, and the ground wire to the dishwasher’s green wire. Use cUL/UL listed wire nuts of the
appropriate size.
7 Tighten the strain relief screws and lock nut to stabilize the power cord’s electrical wires, then make sure that all of the
connections are secure.
You’ll need:
Warning:
•If your house wiring is not 2-wire with a ground, a ground must be provided by the installer.
•If your house wiring is aluminum, be sure to use cUL/UL Listed anti-oxidant compound and aluminum-to-copper
connectors.
8 Replace the junction box cover on the right front of the dishwasher. Be sure that the wires are not pinched under the
cover.
Direct wiring
1 Remove the junction box cover from the power supply junction box on the wall.
2 Locate the three dishwasher wires, (white, black, and green) with stripped ends, then insert the dishwasher wires
through the small hole in the junction box.
3 Secure the house wiring to the bottom of the junction box with a strain relief fitting.
4 Use wire nuts to connect incoming ground to green, white to white, and black to black.
5 Replace the junction box cover. Make sure that no wires are pinched under the cover.
Note:
If you have trouble replacing the junction box cover, loosen the screws on the strain relief.
You’ll need:
You’ll need:
Junction box
Junction
box
Power cord
Black to black
White to white
Ground to green
Three wire nuts
(UL listed)
Strain relief (for
electrical connections)
Power cord
Junction box
White to white
Black to black
Ground to green
Insert wires through strain relief fitting and tighten
Phillips screwdriver
Three wire nuts
(UL listed)
Strain relief (for
electrical connections)
