DUC
T W
OR
K
HOUSE
POWER
CABLE
MOUNTING
SCREWS(4)
7. Securely fasten the hood to the cabinet with the mounting
screws
8. Securely fasten the hood to the wall with the mounting
screws
9. Install the lters

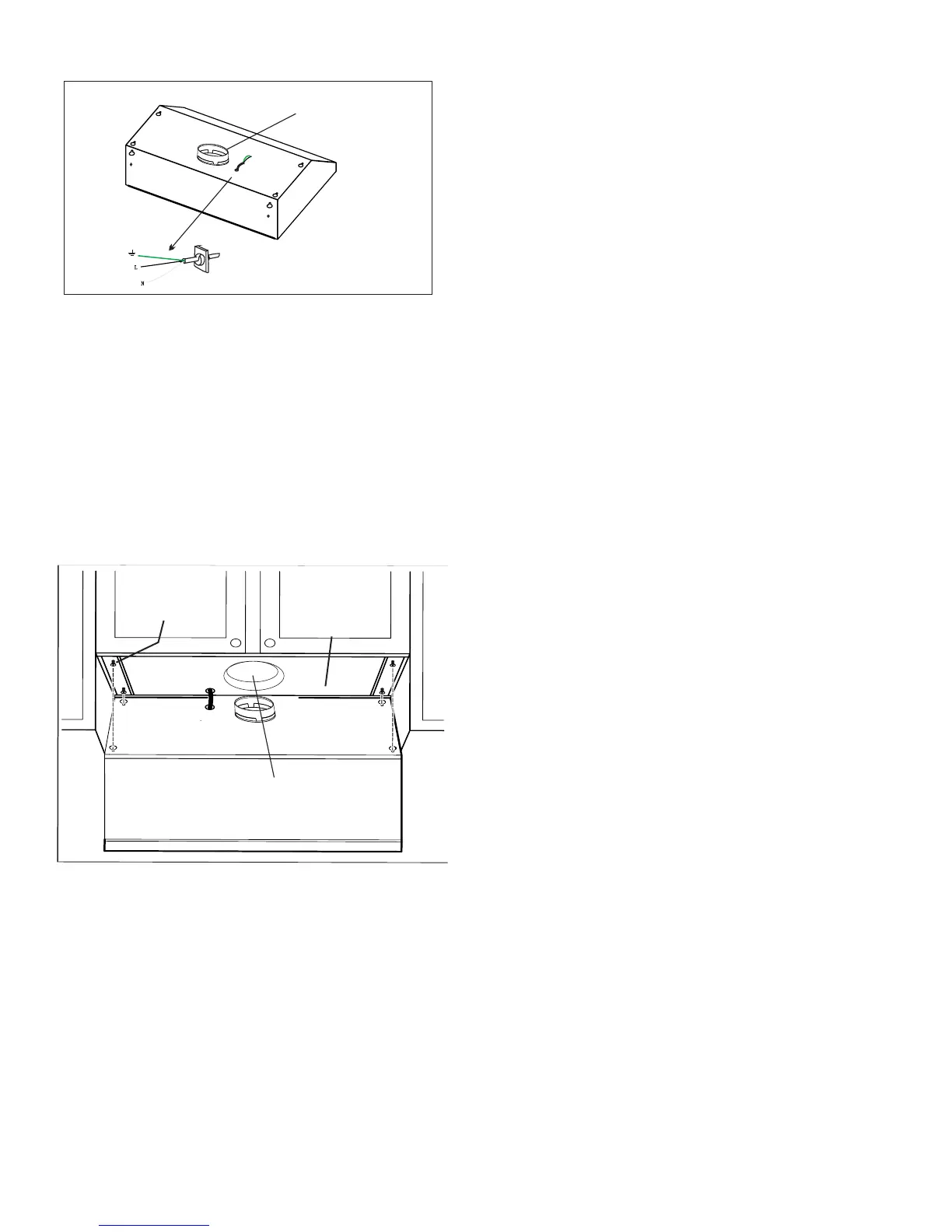

3.Temporarily position the rangehood in its intended place.
Using a pencil measure, mark the mounting holes, duct and
electrical locations.
4. Drill/cut out the required openings for duct and electrical
access; ensure the damper/duct connector enter the ductwork
and the damper opens and closes freely
5. Connect the electical supply wiring (make sure power supply
is off)
6. Leave enough space to apply duct tape to the connection
6" VERTICAL DUCT
KNOCKOUT
N
L
POWER CABLE
-
Heat Sensor :
(available with Model"UMC30"only)
The hood is equipped with a heat sensing thermostat. If the
safety device detects heat in excess of 158°F (70°C) above
the cooking surface, it will turn on or speed up the fan. If the
fan is not on or running at a low speed, the heat sensor will
override the normal fan control and run the fan on high speed.
When the temperature level drops below 158°F (70°C) the fan
speed will revert back to its original setting.
To Next Page
