Costco Vitis - Step 2: Assemble Middle Lintels

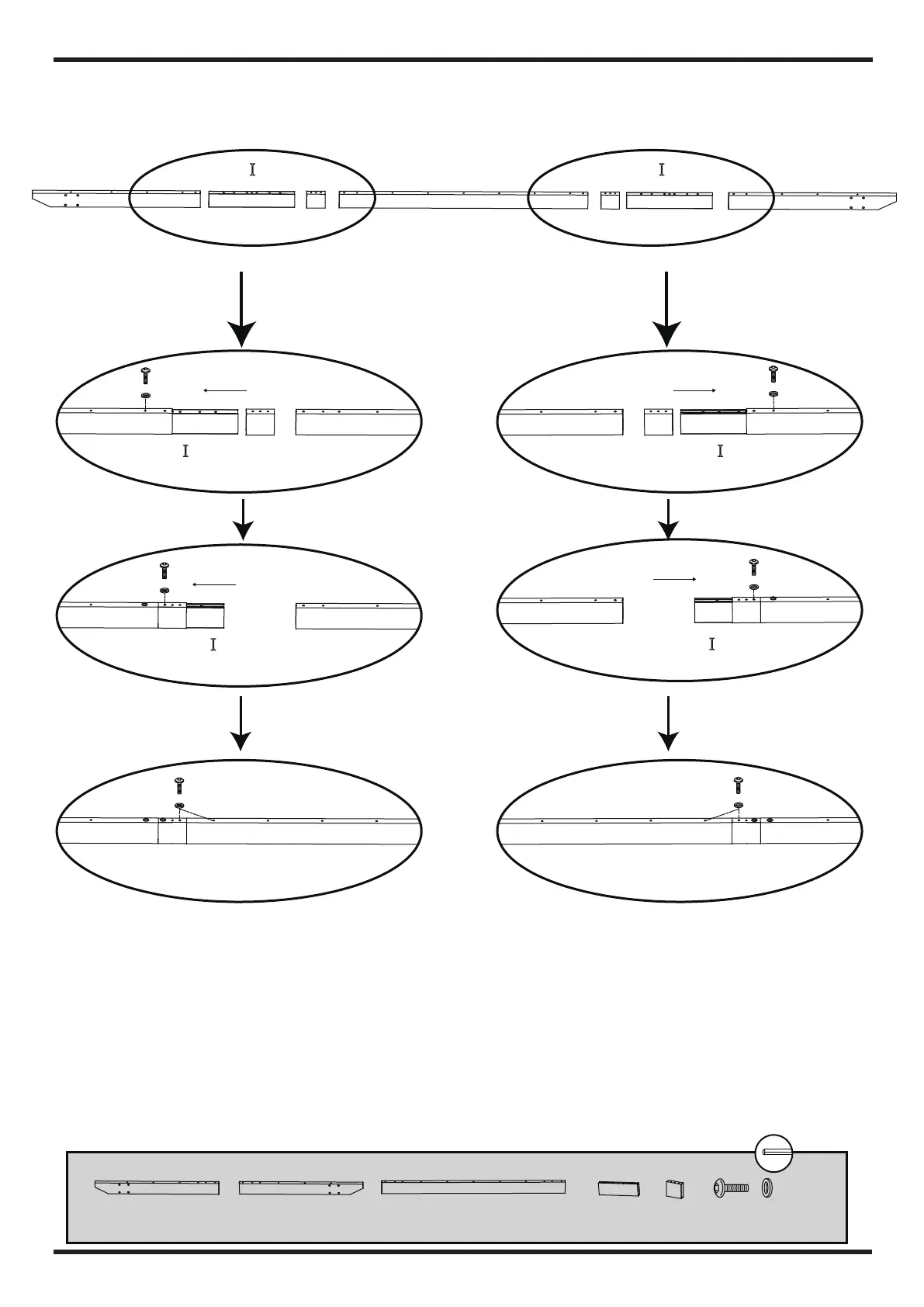

2.1 Insert one end of the Connector (I)into the Middle Lintel (B1) with Bolt (AA) and please
don't tighten it, then put on the Shield (K),
insert the other end into the Middle Lintel (B3)
with Bolt (AA) and tighten it, see Fig.2
2.2 Insert one end of the Connector ( I ) into the Middle Lintel (B2) with Bolt (AA) and
please don't tighten it, then put on the Shield (K), insert the other end into the Middle Lintel
(B3) with Bolt (AA), see Fig.3
Tighten all bolts now.
B1
I
K
B3
K
I
B2
Step 2
I
K
B3
AA
B3
B1 K
I
AA
AA
B3
B1 K
K
I
B2
AA
B3
B3
I
K
B2
B3
B2
AA
AA
K
B1
Fig.2
Fig.3
B1*2 B2*2 B3*2 I*4 K*4 AA*16
