Cotech CB5-5L-BS1 - Functions; Re-Setting; <14 Ah - Charge Setting 1; >14 Ah - Charge Setting 2

5
ENGLISH

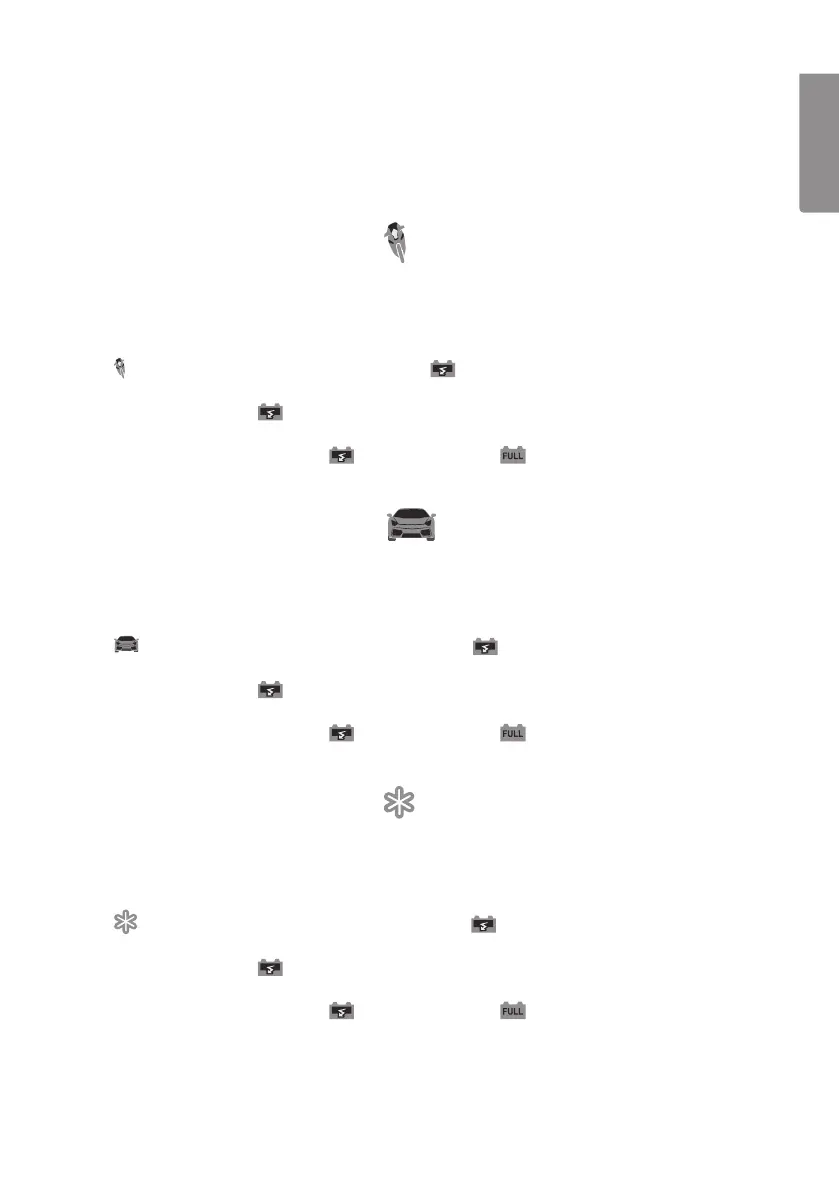

4. Functions
4.1 Re-setting
When thecharger is connected to anelectric socket it is automatically reset and
charging does not commence until you have started thecharger manually.
4.2 <14 Ah – Charge setting 1
Suitable for motorcycle batteries and other smaller batteries (14.4 V/0.8 A).
Setting 1 is to be used for batteries with alower capacity than 14Ah. Connect
thecharging clamps to thebattery (red to + and black to -), then press [ MODE ] to
select thedesired function and start charging.
• flashes. Ifyou do not press any button will light up and charging will
commence at 0.8 A (±10 %).
• If everything is OK will light up during theentire charging cycle until thevoltage
reaches 14.4 V (±0.25 V).
• When charging is complete will switch off and will belit.
Charging will switch to conservation charging.
4.3 >14 Ah – Charge setting 2
Suitable for car batteries, regular batteries etc. (14.4 V/4A).
Setting 2 is to be used for batteries with ahigher capacity than 14Ah. Connect
thecharging clamps to thebattery (red to + and black to -), then press [ MODE ] to
select thedesired function and start charging.
• flashes. Ifyou do not press [ MODE ] again will light up and charging will
commence at 4A (±10 %).
• If everything is OK will light up during theentire charging cycle until thevoltage
reaches 14.4 V (±0.25 V).
• When charging is complete will switch off and will belit.
Charging will switch to maintenance charging.
4.4 COLD – Charge setting 3
Suitable for large batteries or if charging commences at low temperatures (14.7 V/4A).
Setting 3 is to be used for batteries with amuch higher capacity than 14Ah (or if com-
mences at low temperatures). Connect thecharging clamps to thebattery (red to +
and black to -), then press [ MODE ] to select thedesired function and start charging.
• flashes. Ifyou do not press [ MODE ] again will light up and charging will
commence at 4A (±10 %).
• If everything is OK will light up during theentire charging cycle until thevoltage
reaches 14.7 V (±0.25 V).
• When charging is complete will switch off and will belit.
Charging will switch to maintenance charging.
