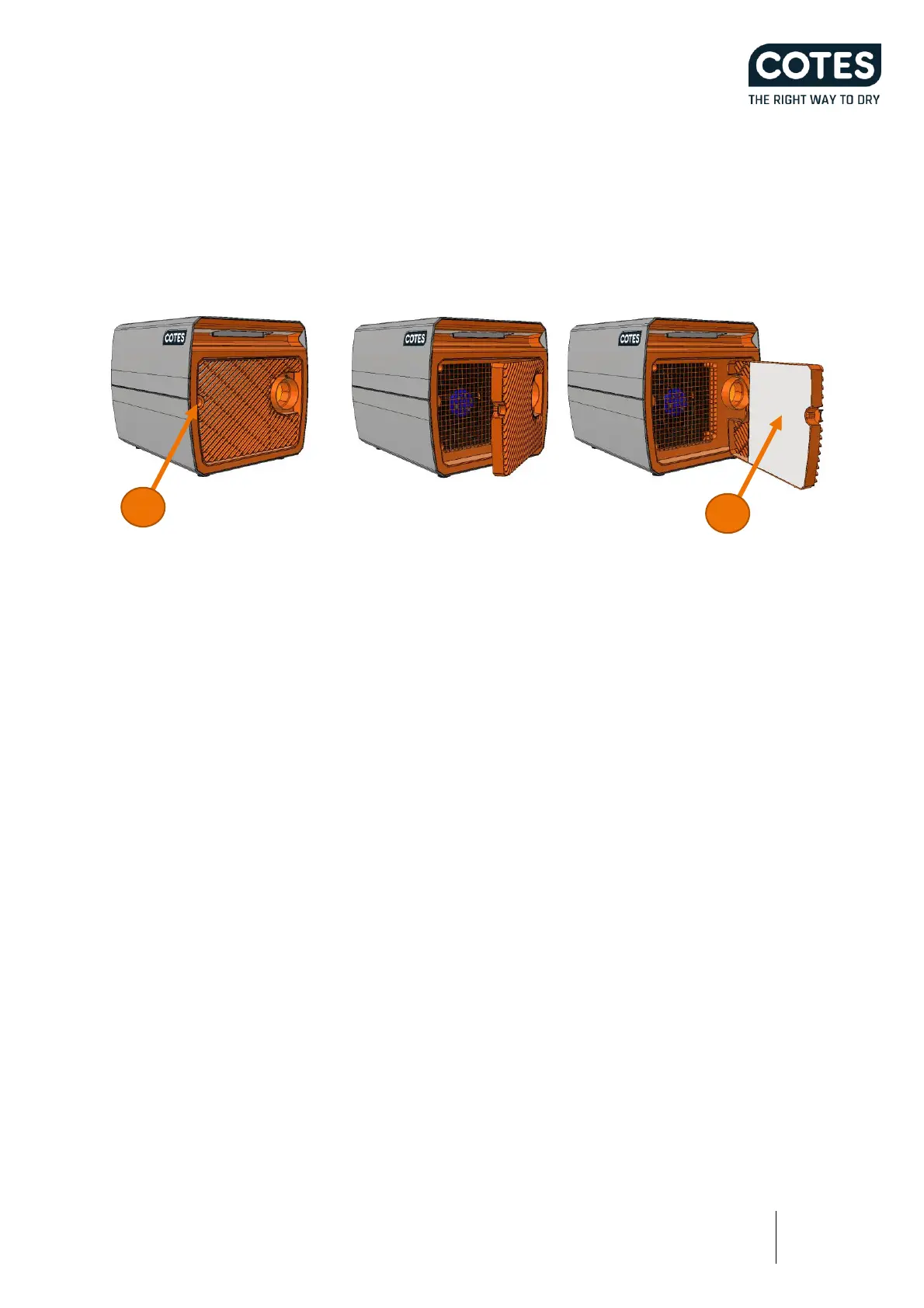

Air filter replacement
Access to the filter is done by tipping the finger tap (1) to the right and remove the filter lid. Once accessed the
filter (2) can be removed and replaced. The filter can be replaced without turning the dehumidifier off, but it is
easier when turned off. Replacement filter (no. 650009) fits into the shape of the filter lid. When reattaching
the filter lid make sure the lid is proper installed. No unnecessary force should be used, but the lock should be
pressed back in to place to lock the filter lid.
Air fan replacement
To replace the fan, disconnect the fan electrical connectors, and then unscrew the screws securing the fan. The
screws (4 pcs) are located inside the air filter box and can be accessed from the outside by removing the filter
cover. For easier access remove the 2 rubber feet’s that holds the fan section. Then the fan section can be
separated from the bottom shell.
Rotor, drive belt, gearmotor and electrical heater replacement
To replace the rotor, drive belt or gear motor, but also the electrical heaters, you need to:
1. Disconnect the flexible hose from the Rotor section and the Fan section.
2. Disconnect the ground connection, 1x power, 1x Selector, 1x Potentiometer, and 2x fan - connectors
3. Lift up the complete rotor section and place it on a flat horizontal surface.
Now all components are easily accessible for replacement.
Reassembly of the dehumidifier
Reverse the workflow and be observant when refitting the rotor section back in the bottom shell. Take care that
the sheet metal is correct fitted in to the bottom rib, and ribs on the control panel, and grabs the plastic part
on each side. No unnecessary force should be used.
When refitting the lid, take care that the lid does not grab the “Air trap foil” placed on the inside of the bottom
shell.
