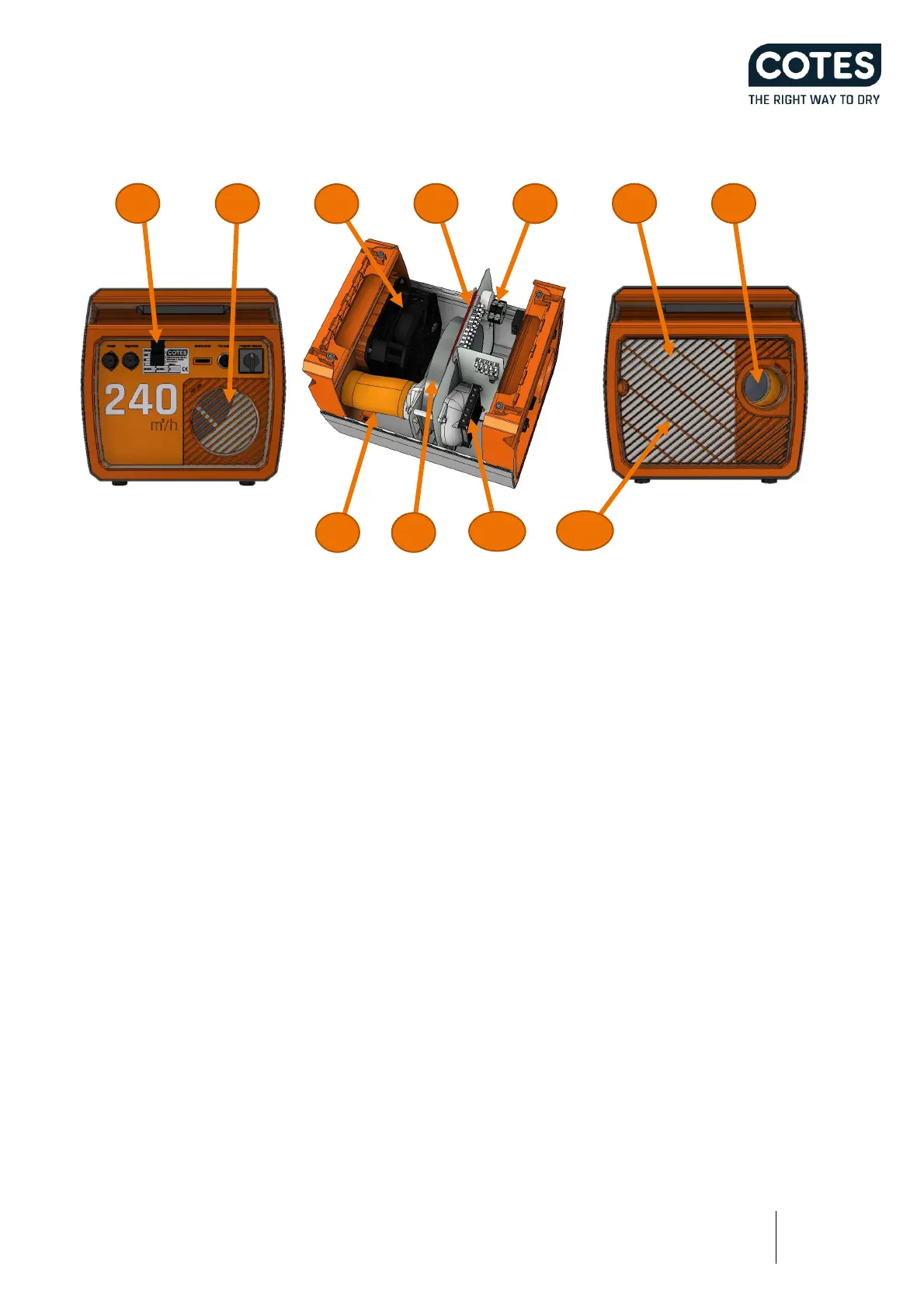

2.3 MAIN COMPONENTS
1. Cable strap
2. Dry air outlet – 125 mm female
3. Air fan
4. Drive belt
5. Gearmotor for rotor
6. Filter (Standard - G4)
7. Regeneration Air Outlet – 80 mm female
8. Flexible hose
9. Desiccant rotor
10. Heater
11. Filter lid
See section 6 / SERVICE AND MAINTENANCE for information on how to access main components.
Access for service/repair
To access components inside the machine, remove the top cover.
The top cover is fastened with 4 screws on the top of the device.
