Contra angle and motor connections

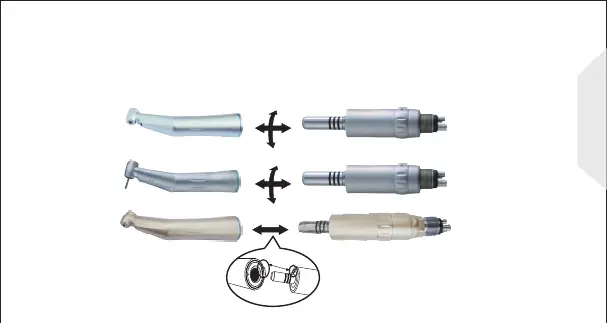

1. Straightly insert the motor into the connection of contra angle, until you
hear a “cracking" sound can be.
2. Hold the bending machine and pull out the motor, it will be separated[fig.3.2].
3. Alignment the groove,contra angle can insert into the air motor[fig.3.3].
Fig.3.2
optic fiber
Optic Fiber Contra angle
Bur size:Ø2.35
Optic Fiber/LED Air motor
1:1 drive
Fig.3.4
Contra angle(CX235-1B)
Bur size:Ø2.35
Air motor(CX235-3B)
1: 1 drive
Fig.3.3
(CX235- 1C)
(CX235-3C/CX235-3D)
Fig.3.1
Contra angle with generator
(CX235-1E) Bur size:Ø2.35
Air motor(CX235-3B)
1: 1 drive
Inner channel1:1
