13
Adjustment
After a period time, wear in some of the moving components
may need to be adjusted.

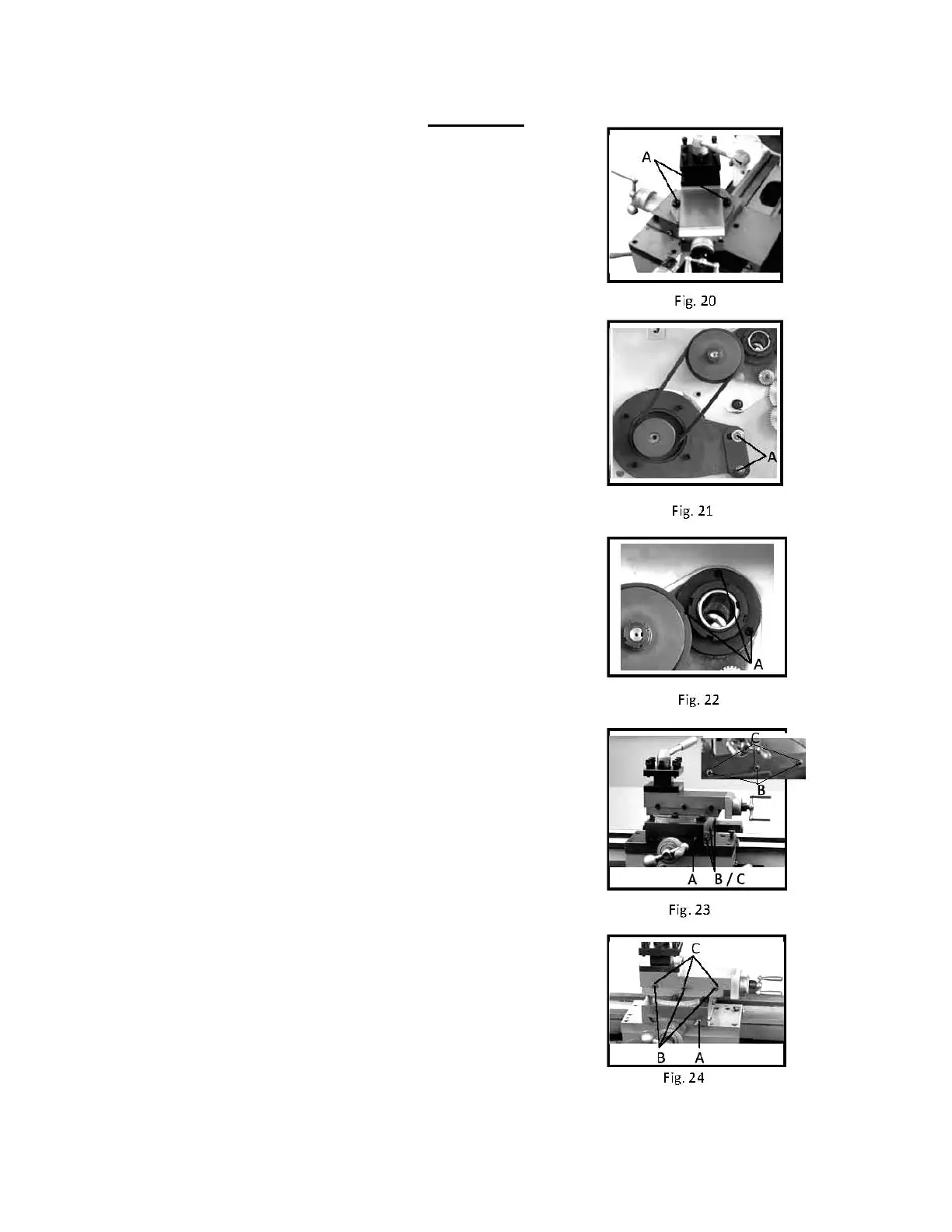

Compound Rest Adjustment
Loosen the two screws (A. Fig. 20), after you have obtained
The angle you want, do not forget to tighten them again.
Belt Adjustment
Loosen the two nuts and screws (A. Fig. 21) to remove the
Plate of mounting motor and position.
Main Spindle Bearing Adjustment
The main spindle bearings are adjusted at the factory. If end play
becomes evident after considerable use, the bearings may be
adjusted. Loosen two hex socket cap screws (A, Fig. 22) in the
slotted nut on the back of spindle. Tighten slotted nut until all
end play is taken up. The spindle should still revolve freely.
Tighten two hex socket cap screws
Caution: excessive tightening or preloading will damage
the bearings
Cross Slide Adjustment
The cross slide is fitted with a gib strip (A, Fig. 23) and can be
Adjusted with screw (B, Fig. 23) fitted with lock nuts (C, Fig. 23)
Loosen the lock nuts and tighten the set screws until slide moves
freely without play. Tighten lock nuts to retain adjustment.
Top Slide Adjustment
The top slide is fitted with a gib strip (A, Fig. 24) and can be
adjusted with screw (B, Fig. 24) fitted with lock nuts (C, Fig. 24).
Loosen the lock nuts and tighten the set screws until slide moves
freely without play. Tighten lock nuts to retain adjustment.
