3. Installation Preparation.
ON
OFF
ON
OFF
4. Hanging Bracket Installation.
Turn o circuit breakers to current xture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing xture.
WARNING: When using an existing outlet box, be sure the
box is securely attached to the building structure and can
support the full weight of the fan. Ensure it is clearly marked
"Suitable for Fan Support." If not, it must be replaced with an
approved outlet box. Failure to do so can result in serious
injury.
CAUTION: Be sure outlet box is grounded and that a ground
wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original screws,
spring washers and at washers provided with new or
original outlet box.* If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the bracket opening.
*Note: It is very important that you use the proper hardware
when installing the hanging bracket as this will support the
fan.
Vaulted ceiling
angle is not to
exceed 25 degrees.

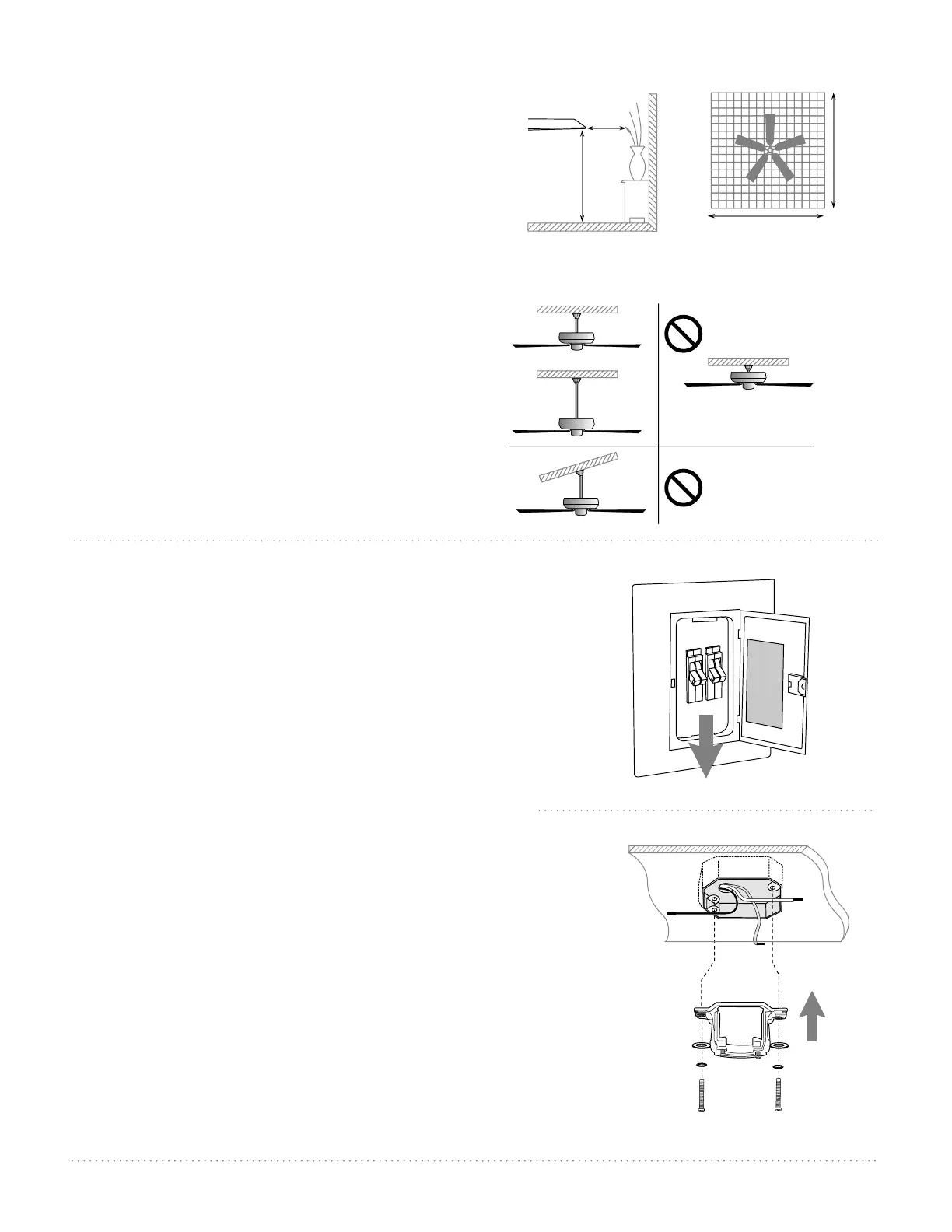

downrod
installation ushmount
installation
10 feet
(3.05m)
(76cm)
30
inches
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
blade edge
To prevent personal injury and damage, ensure that
the hanging location allows the blades a clearance
of 10 feet (3.05m) from the oor and 30in. (76cm)
from any wall or obstruction.
This fan is suitable for room sizes up to 400 square
feet (37.2 square meters).
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling. The
hanging length can be extended by purchasing a
longer downrod (0.5in./1.27cm diameter). Other
installation, such as ushmount, is not available for
this fan.
Installation requires these tools:
Phillips screwdriver, athead screwdriver,
adjustable pliers or wrench, stepladder, wire cutters,
and rated electrical tape
hanging bracket
spring washers
outlet box screws
at washers
