10. Handheld Remote Control Assembly.
IN ORDER TO USE THE HANDHELD REMOTE CONTROL,
PLEASE CONTINUE WITH SECTION 10 for remote control
assembly instructions. If you have already installed the wall
control but do not wish to use the handheld remote control,
please proceed to Section 11.

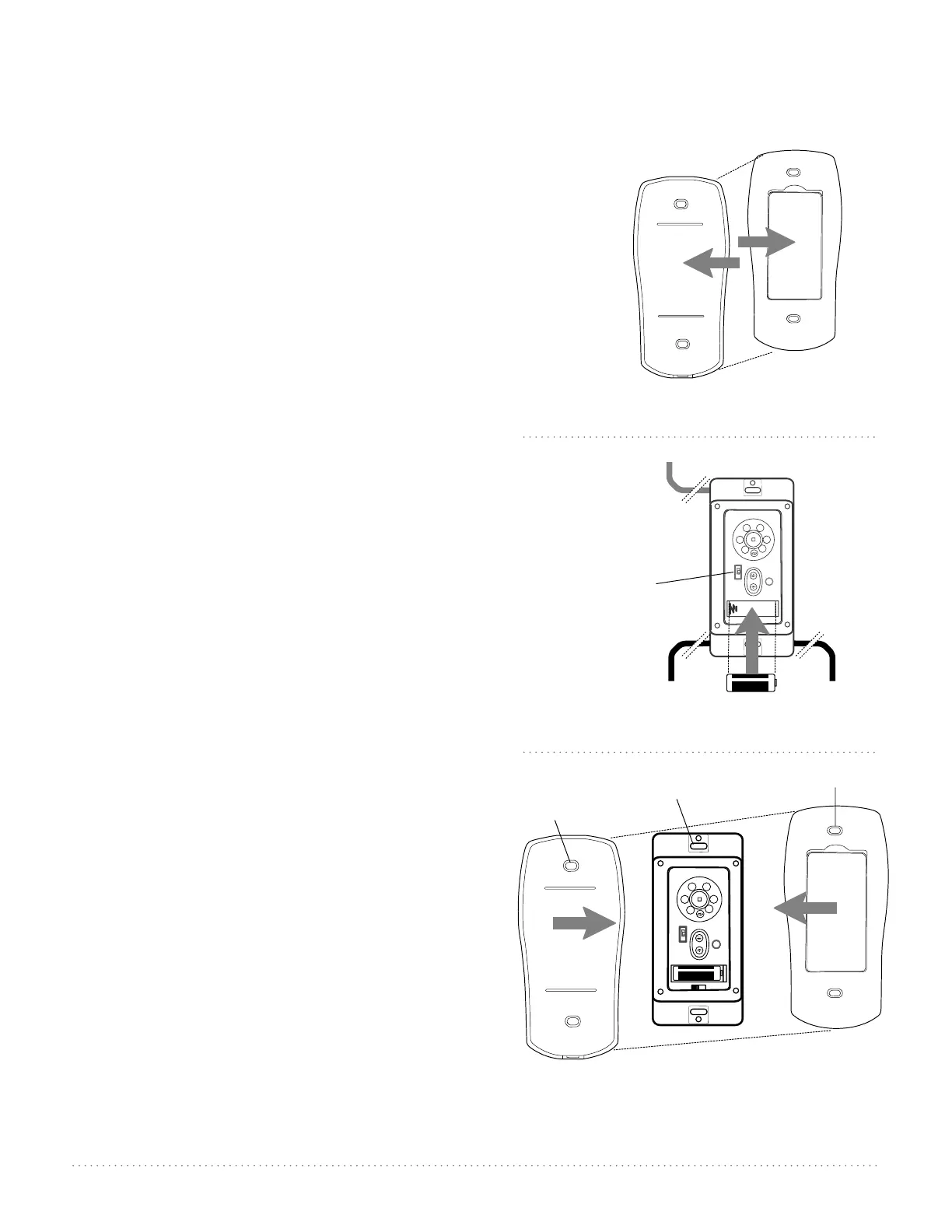

Gently pull on remote control cover to separate top and
bottom parts. [Refer to diagram 1.]
In order to use wall control as a handheld remote control,
cut each wire on wall control (that was not previously
used)--use wire cutters to cut o each wire as close to the
wall control as possible. [Refer to diagram 2.]
Install one battery (included) in wall control. [Refer to
diagram 2.]
WARNING: Battery is to be inserted with the correct
polarity.
Since this fan comes with an LED light kit, the dimmer
switch (labeled ON and D) has been pre-set to the "ON"
position (ON). If you do not wish to have dimming
capability, please move the switch to the "OFF" position
(D). [Refer to diagram 2.]
Attach black faceplate to front of wall control; press
down rmly. [Refer to diagram 3.]
Align holes in wall control with posts located on inside of
TOP part of remote control cover and press together
rmly. Place wall control into BOTTOM part of remote
control cover, aligning posts in top of remote control
cover with post holes in the bottom. [Refer to diagram 3.]
(NOTE: Make sure to align narrower ends of remote
control cover before closing.) Squeeze top and bottom of
remote control cover together until you hear a click at
each end, indicating that the remote control cover has
closed completely.
IMPORTANT: Store the handheld remote control away
from excess heat or humidity. To prevent damage to
handheld remote control, remove the battery if remote
control will not be used for long periods.
NOTE: Remove battery with low or no charge and
dispose of properly
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE,
BATTERIES MAY EXPLODE OR LEAK.” - When disposing of
household alkaline batteries, it is best to check with your
local and state recycling or household hazardous waste
coordinators concerning the specics of the program in
your area. You may also locate a recycling center by
calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org
for more information.
WARNING: Choking Hazard - Small parts. Keep battery
away from children.
