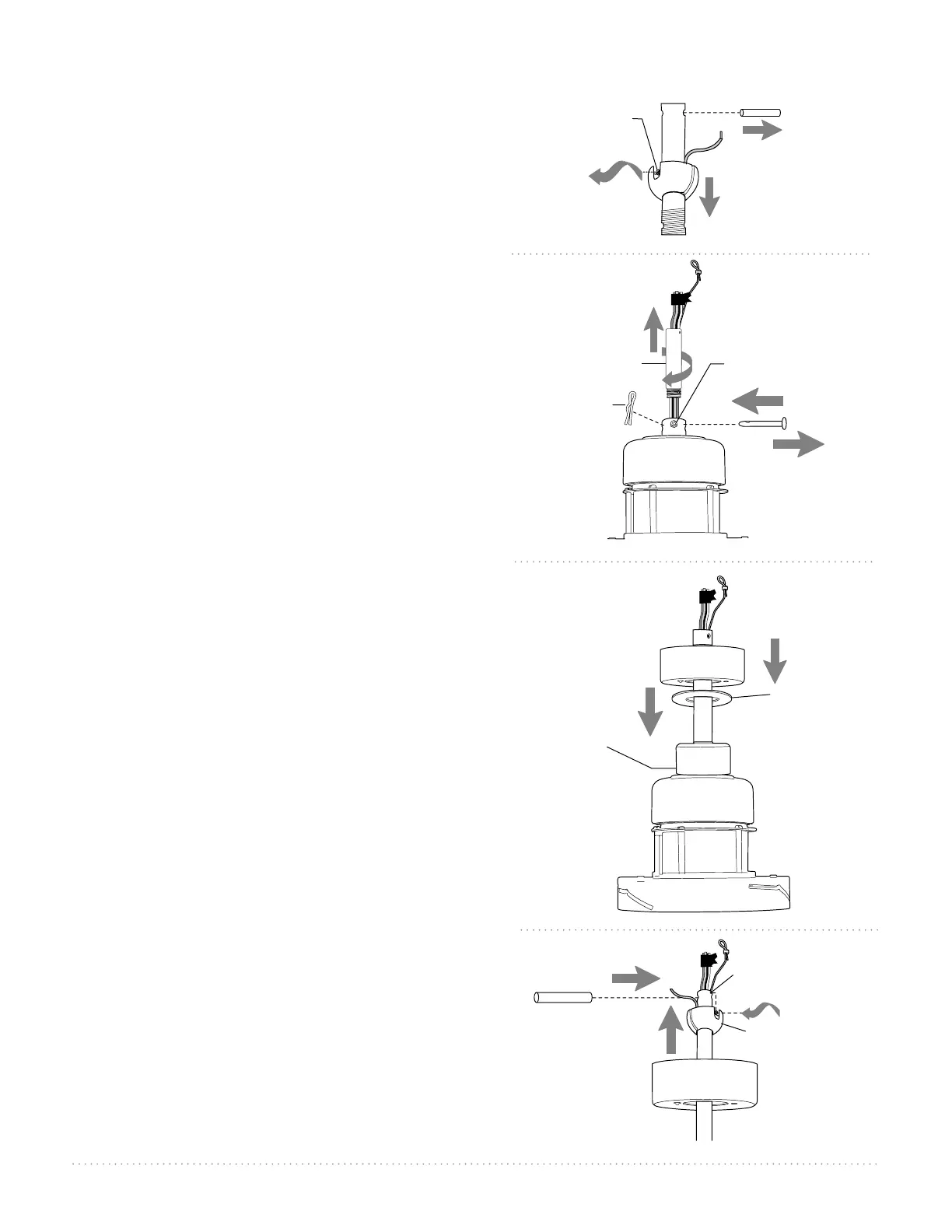

5. Fan Assembly.
Remove hanging ball from downrod provided by
loosening set screw on hanging ball. Lower hanging
ball and remove stop pin and then slide hanging ball
o of the downrod. [Refer to diagram 1.]
Loosen yoke set screws and nuts at top of motor
housing. Remove pin and clip from motor housing
yoke. [Refer to diagram 2.]
Tip: To prepare for threading electrical wires through
downrod, apply a small piece of electrical tape to the
ends of the electrical wires--this will keep the wires
together when threading them through the
downrod. [Refer to diagram 2.]
Determine the length of downrod you wish to use.
Thread safety cable and electrical wires through
threaded end of downrod and pull extra wire slack
from the upper end of the downrod. [Refer to
diagram 2.]
Thread downrod into the motor housing yoke until
holes for pin and clip in downrod align with holes in
yoke--make sure wires do not get twisted. Re-insert pin
and clip that were previously removed. Tighten yoke
set screws and nuts securely. [Refer to diagram 2.]
Locate canopy cover in hardware pack. Slide yoke
cover, canopy cover and canopy over downrod.
[Refer to diagram 3.] (Note: Canopy cover must be
turned with shiny side toward the motor housing.)
Thread safety cable and wires through hanging ball
and then slide hanging ball over downrod--the top of
the downrod should be noted as having a set screw
hole; use this hole when setting the set screw. Insert
stop pin into top of downrod and raise hanging ball.
Be sure stop pin aligns with slots on the inside of the
hanging ball. Tighten set screw securely. [Refer to
diagram 4.]
WARNING: Failure to tighten set screw (on hanging
ball) completely could result in the fan becoming
loose and possibly falling.
["Fan Assembly" continued on next page.]
NOTE: The important safety precautions and
instructions appearing in the manual are not meant to
cover all possible conditions and situations that may
occur. It must be understood that common sense and
caution are necessary factors in the installation and
operation of this fan.
diagram 4
set screw
hanging ball
stop pin
diagram 2
diagram 1
set screw hole
hanging ball
stop pin
downrod
electrical wiring
yoke set screw
and nut
pin
clip
motor
housing
safety cable
motor
housing
canopy
canopy cover
downrod
yoke
cover
diagram 3
