page 8

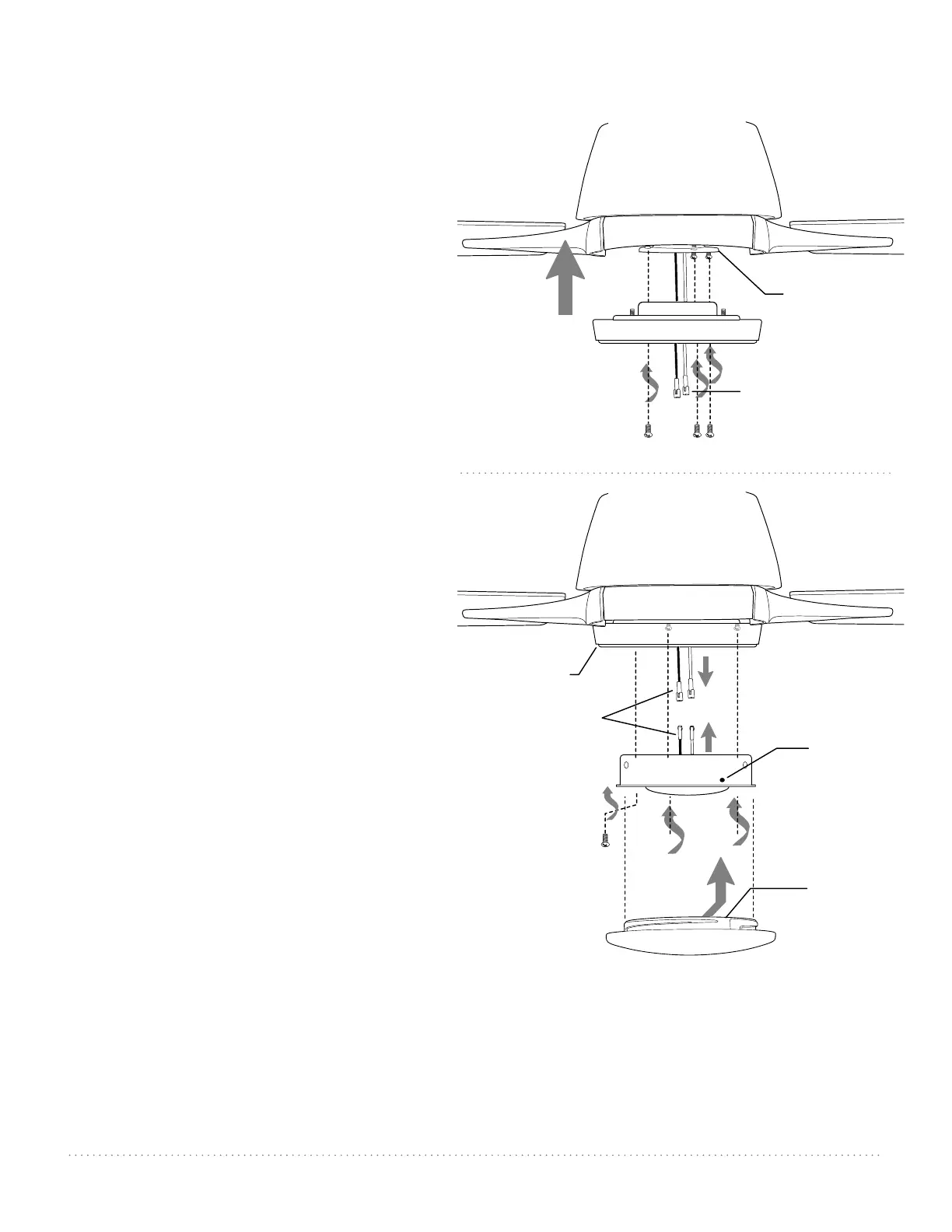

10. LED Light Kit Assembly.
Remove 1 screw from motor plate on
underside of motor housing and partially
loosen the other 2 screws. Align slotted holes
in center of fitter plate with loosened screws
in motor plate, allowing molex connections
from motor housing to come through hole in
middle of fitter plate. Twist fitter plate to lock.
Re-insert screw that was previously removed
and securely tighten all 3 screws with a
Phillips screwdriver.
Remove 1 screw from underside of fitter plate
and partially loosen the other two screws.
Connect WHITE wire from motor housing to
WHITE wire from LED light kit. Connect
BLACK wire from motor housing to BLACK
wire from LED light kit. Be sure molex
connections snap together securely.
Align slotted holes in LED light kit with
loosened screws in fitter plate. Twist LED light
kit to lock. Re-insert screw that was previously
removed and tighten all 3 screws securely.
Align grooves on glass shade with nodules on
inside of LED light kit and push up gently on
glass shade. Twist glass shade to the RIGHT
(clockwise) until glass shade locks into place.
Pull down VERY GENTLY on glass shade to make
sure that glass shade is secure.
motor plate
LED light kit
groove
molex connections
fitter plate
fitter plate
glass shade
molex
connections
nodule
motor housing
motor
housing
