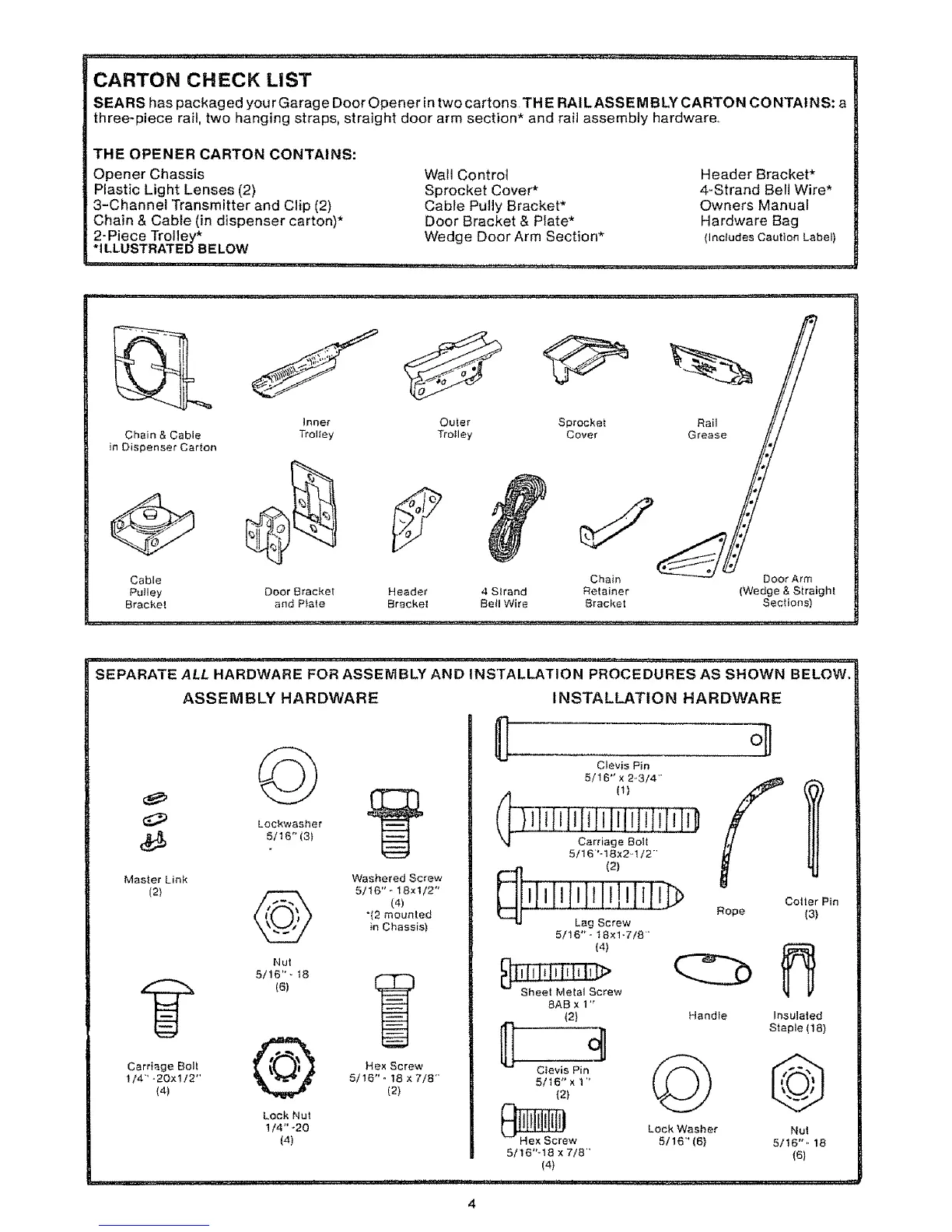

Craftsman 139.53513 - Components View; Check List

CARTON CHECK LiST
SEARS has packaged your Garage Door Opener in two cartons THE RAILASSEMBLY CARTON CONTAINS: a
three-piece rail, two hanging straps, straight door arm section* and rail assembly hardware
THE OPENER CARTON CONTAINS:
Opener Chassis
Plastic Light Lenses (2)
3-Channel Transmitter and Clip (2)
Chain & Cable (in dispenser carton)*
2-Piece Trolley*
*ILLUSTRATED BELOW
Wall Control
Sprocket Cover*
Cable Pully Bracket*
Door Bracket & Plate*
Wedge Door Arm Section*
Header Bracket*
4-Strand Bell Wire*
Owners Manual
Hardware Bag
(Inetudes Caution Label)
Inner
Chain & Cable Trolley
in Dispenser Carton
Cable
Pulley Door Bracket
Bracket and Plate
Outer
Trolley
Header 4 S_rand
Bracket Bell Wire
Sprocket
Cover
J
Chain Door Arm
Retainer (Wedge & Straight
Bracket Sections)
SEPARATE ALL HARDWARE FOR ASSEMBLY AND INSTALLATION PROCEDURES AS SHOWN BELOW,
ASSEMBLY HARDWARE
Lockwasher
(_ 5/16" (3)
Master Link
(2)
Carriage Bolt
1/4"-20xl/2"
(4)
INSTALLATION HARDWARE
@
Nut
5/16" - 18
(e)
@
Lock Nut
1/4"-20
(4)
Washered Screw
5/16" - 18xl/2"
(4)
"(2 mounted
in Chassis)
Hex Screw
5/16 "_ 18 x 7/8'
(2)
Clevis Pin
5/16" x 2,3/4"
(1)
]lqTF[iiilili illD
"%,[ Carriage Bolt
5/16'-18x2,1/2""
(2)
5/16 "° 18xl-7/8"
(4)
BAB x 1"
(2)
Clevis Pin
5/16" x 1 "
(2)
5/16"-18 × 7/8'"
(4)
Coller Pin
Rope (3)
Handle Insulated
Staple (18)
© @
Lock Washer Nut
5/16"(6) 5/16"- 18
(6)
