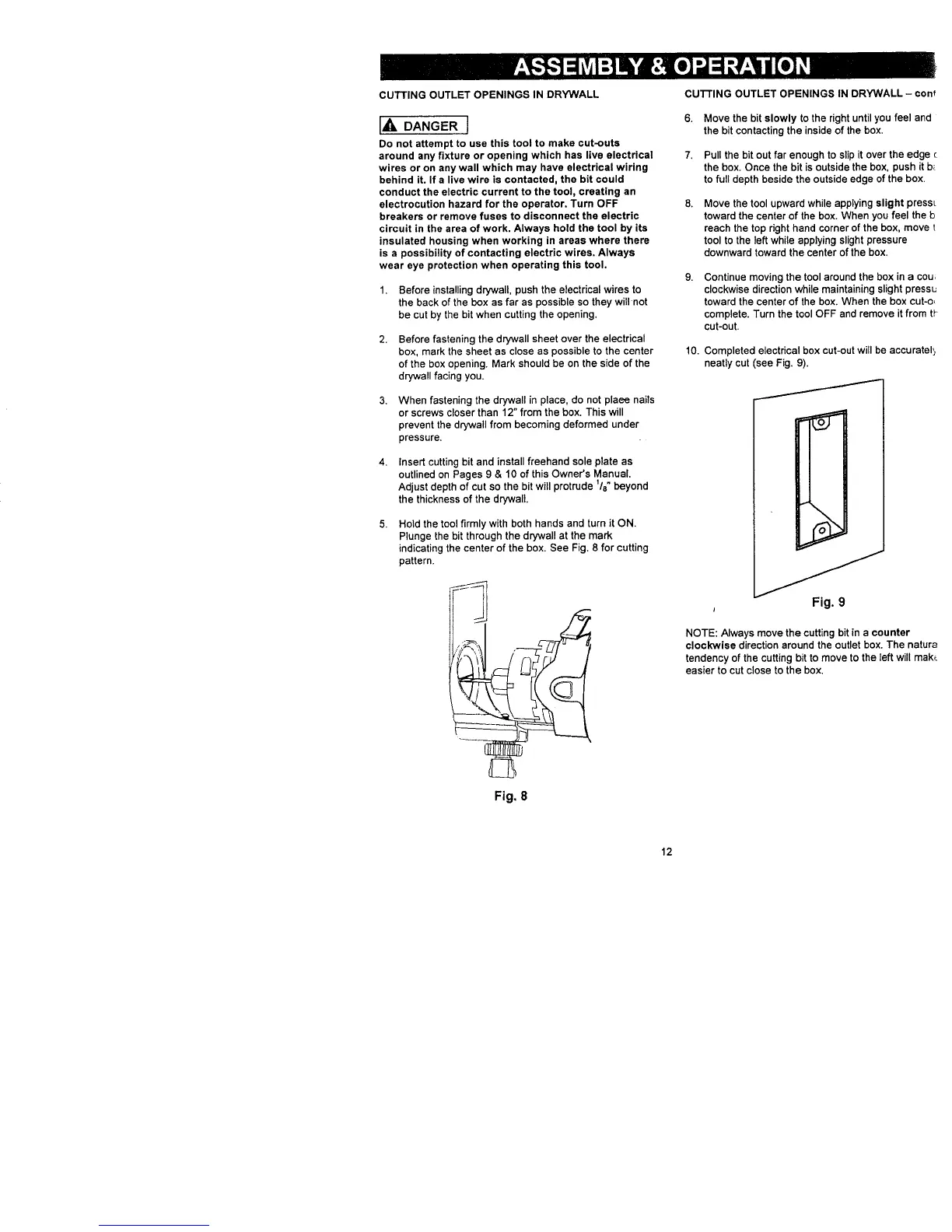

CUTTING OUTLET OPENINGS IN DRYWALL
IA DANGER I
Do not attempt to use this tool to make out-outs
around any fixture or opening which has live electrical
wires or on any wall which may have electrical wiring
behind it. If a live wire is contacted, the bit could
conduct the electric current to the tool, creating an
electrocution hazard for the operator. Turn OFF
breakers or remove fuses to disconnect the electric
circuit in the area of work, Always hold the tool by its
insulated housing when working in areas where there
is a possibility of contacting electric wires. Always
wear eye protection when operating this tool.
4.
Before installing drywall, push the electrical wires to
the back of the box as far as possible so they will not
be cut by the bit when cutting the opening,
Before fastening the drywall sheet over the electrical
box, mark the sheet as close as possible to the center
of the box opening. Mark should be on the side of the
drywall facing you.
When fastening the drywall in place, do not plaee nails
or screws closer than 12" from the box. This will
prevent the drywall from becoming deformed under
pressure.
Insert cutting bit and install freehand sole plate as
outlined on Pages 9 & 10 of this Owner's Manual.
Adjust depth of cut so the bit will protrude 1/8"beyond
the thickness of the drywall.
Hold the tool firmly with both hands and turn it ON.
Plunge the bit through the drywall at the mark
indicating the center of the box. See Fig. 8 for cutting
pattern.
Fig. 8
cu'n'ING OUTLET OPENINGS IN DRYWALL - con_'
6.
7.
Move the bit slowly to the right until you feel and
the bit contacting the inside of the box.
Pull the bit out far enough to slip it over the edge
the box. Once the bit is outside the box, push it b_
to full depth beside the outside edge of the box.
Move the tool upward while applying slight pressL
toward the center of the box. When you feel the b
reach the top right hand corner of the box, move t
tool to the teft while applying slight pressure
downward toward the center of the box,
Continue moving the tool around the box in a cou,
clockwise direction while maintaining slight pressu
toward the center of the box. When the box cut-o_
complete. Turn the tool OFF and remove it from t,_
cut-out.
10.
Completed electrical box cut-out will be accuratel_
neatly cut (see Fig. 9).
Fig. 9
NOTE: Always move the cutting bit in a counter
clockwise direction around the outlet box. The natura
tendency of the cutting bit to move to the left will mak_
easier to cut close to the box.
12
