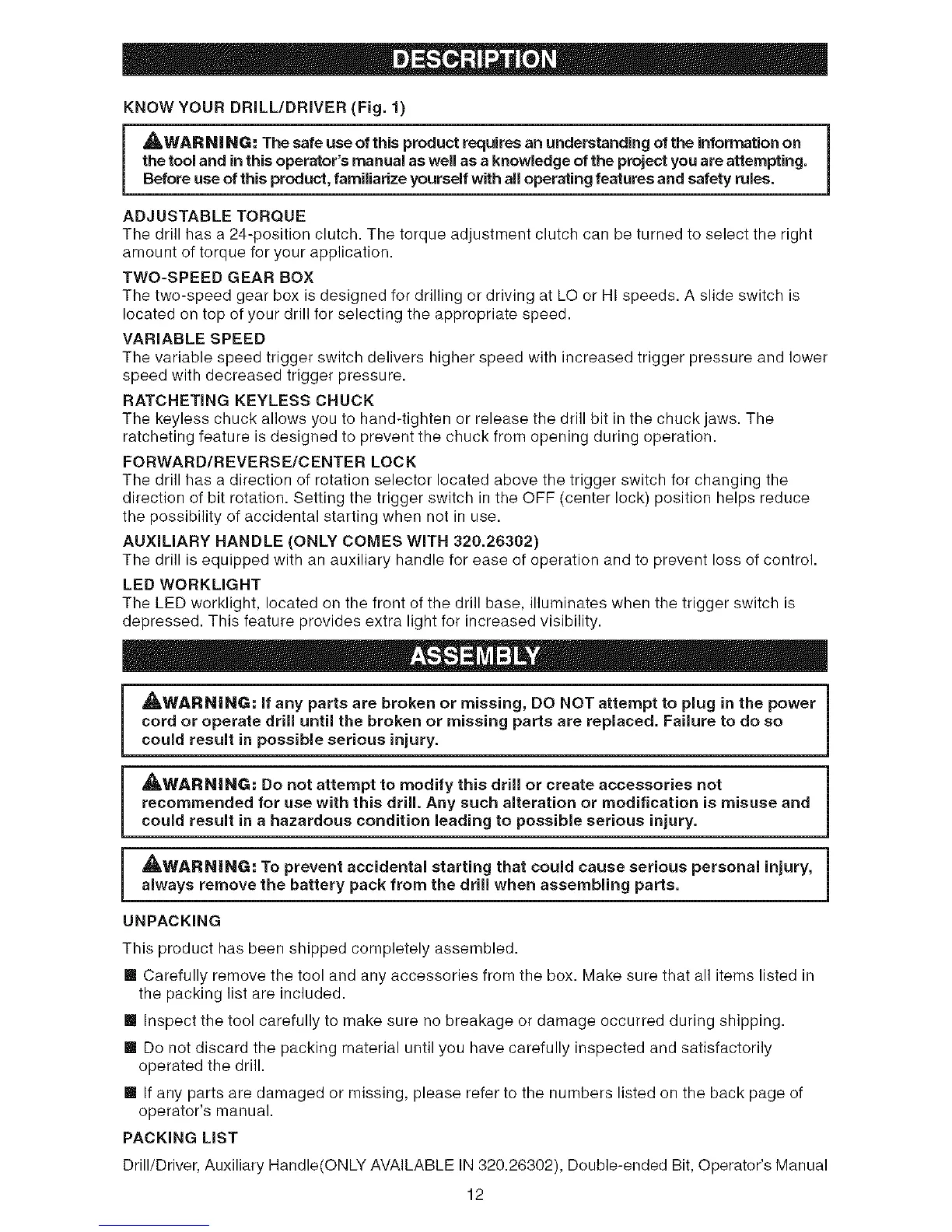

KNOWYOUR DRILL/DRIVER (Fig. 1)
_,WARN|NG:Thesafeuseofthisproductrequiresanunderstandingoftheinformationon
the tool and in this operator's manual as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all operating features and safety rules.
ADJUSTABLE TORQUE
The drill has a 24-position clutch. The torque adjustment clutch can be turned to select the right
amount of torque for your application.
TWO-SPEED GEAR BOX
The two-speed gear box is designed for drilling or driving at LO or HI speeds. A slide switch is
located on top of your drill for selecting the appropriate speed.
VARIABLE SPEED
The variable speed trigger switch delivers higher speed with increased trigger pressure and lower
speed with decreased trigger pressure.
RATCHETING KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release the drill bit in the chuck jaws. The
ratcheting feature is designed to prevent the chuck from opening during operation.
FORWARD/R EVERS E/CENTER LOCK
The drill has a direction of rotation selector located above the trigger switch for changing the
direction of bit rotation. Setting the trigger switch in the OFF (center lock) position helps reduce
the possibility of accidental starting when not in use.
AUXILIARY HANDLE (ONLY COMES WITH 320.26302)
The drill is equipped with an auxiliary handle for ease of operation and to prevent loss of control.
LED WORKLIGHT
The LED worklight, located on the front of the drill base, illuminates when the trigger switch is
depressed. This feature provides extra light for increased visibility.
AWARN|NG: if any parts are broken or missing, DO NOT attempt to plug in the power i
cord or operate drill until the broken or missing parts are replaced. Failure to do so
Jcould result in possible serious injury.
AWARN|NG: Do not attempt to modify this drill or create accessories not i
recommended for use with this drill. Any such alteration or modification is misuse and
Jcould result in a hazardous condition leading to possible serious injury.
_,WARN|NG: To prevent accidental starting that could cause serious personal injury, i
always remove the battery pack from the drill when assembling parts.
!
UNPACKING
This product has been shipped completely assembled.
I!1 Carefully remove the tool and any accessories from the box. Make sure that all items listed in
the packing list are included.
!! Inspect the tool carefully to make sure no breakage or damage occurred during shipping.
I!1 Do not discard the packing material until you have carefully inspected and satisfactorily
operated the drill.
I!1 If any parts are damaged or missing, please refer to the numbers listed on the back page of
operator's manual.
PACKING LIST
Drill/Driver, Auxiliary Handle(ONLY AVAILABLE IN 320.26302), Double-ended Bit, Operator's Manual
12
