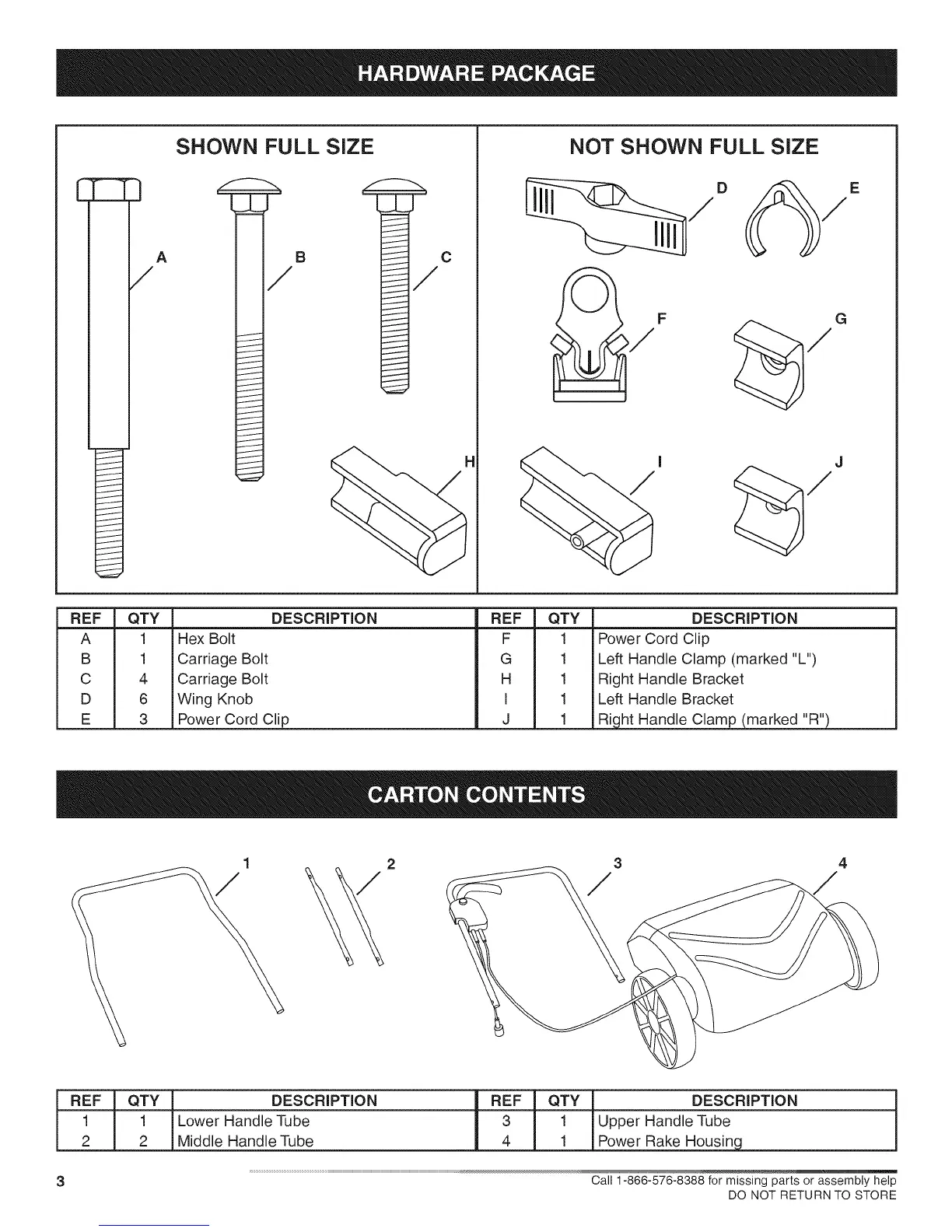

Craftsman 29281 - HARDWARE PACKAGE; CARTON CONTENTS

r-
SHOWN FULL SIZE
/
A B
/
C
H
NOT SHOWN FULL SIZE
/
REF QTY DESCRiPTiON REF QTY
A 1 Hex Bolt F 1
B 1 Carriage Bolt G 1
C 4 Carriage Bolt H 1
D 6 Wing Knob I 1
E 3 Power Cord Clip J 1
DESCRIPTION
Power Cord Clip
Left Handle Clamp (marked "L")
Right Handle Bracket
Left Handle Bracket
Right Handle Clamp (marked "R")
1 3 4
/ /
REF QTY DESCRIPTION REF QTY DESCRIPTION
1 1 Lower Handle Tube 3 1 Upper Handle Tube
2 2 Middle Handle Tube 4 1 Power Rake Housing
3 Call 1-866-576-8388 for missing parts or assembly help
DO NOT RETURN TO STORE
