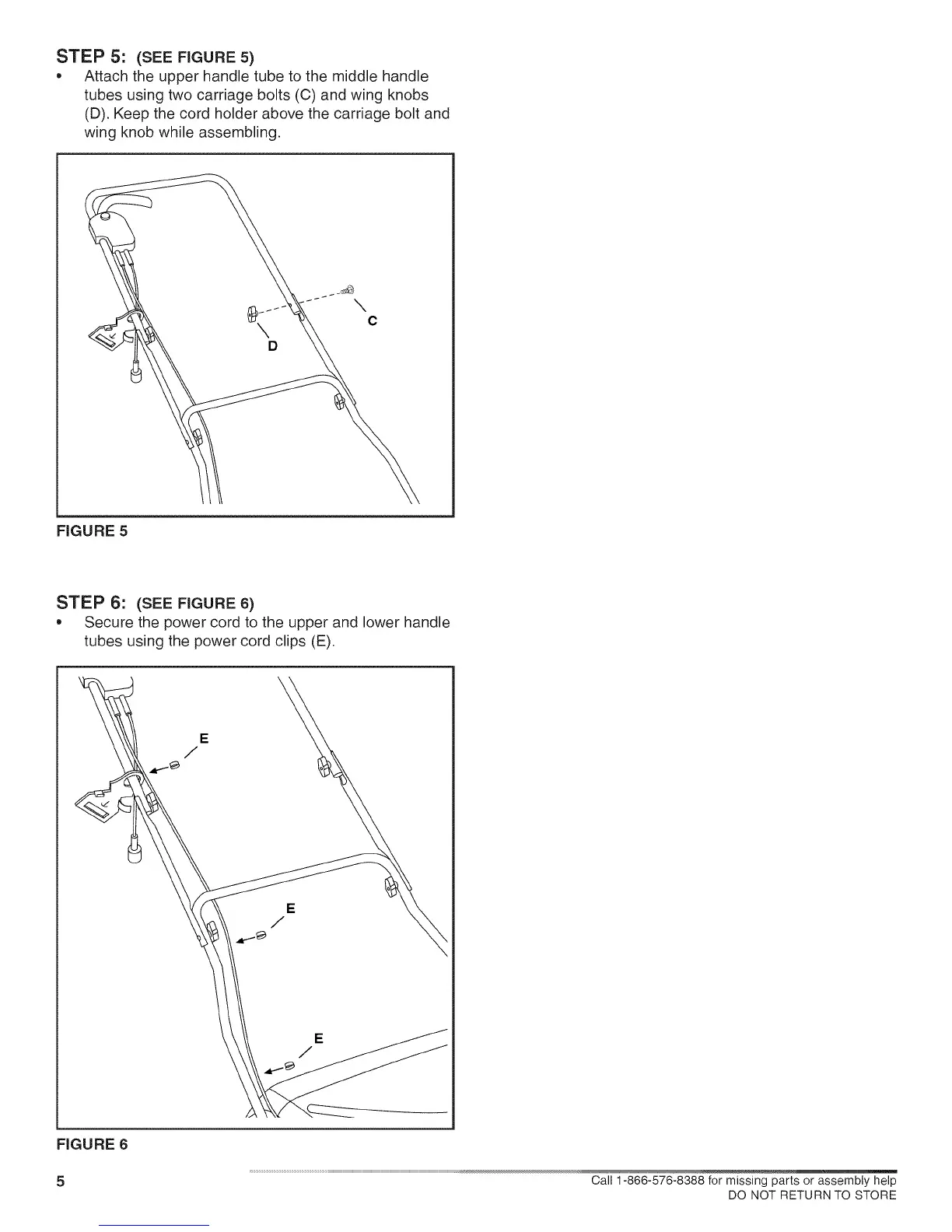

STEP 5: (SEE FIGURE 5)
* Attach the upper handle tube to the middle handle
tubes using two carriage bolts (C) and wing knobs
(D). Keep the cord holder above the carriage bolt and
wing knob while assembling.
c
\
D
FIGURE 5
STEP 6: (SEE FIGURE 6)
* Secure the power cord to the upper and lower handle
tubes using the power cord clips (E).
E
/
E
/
E
/
FIGURE 6
