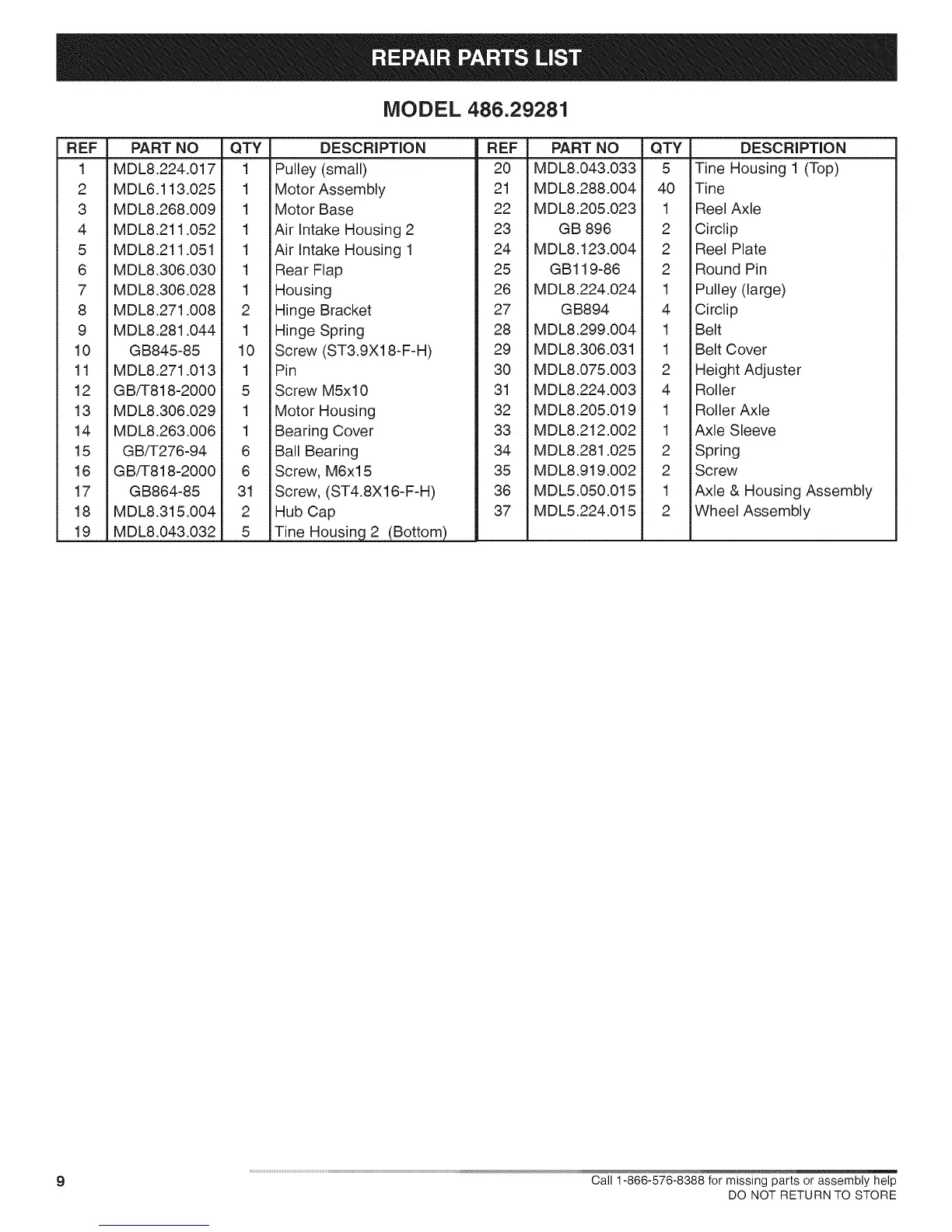

MODEL 486.29281
REF PART NO QTY DESCRiPTiON
1 MDL8.224.017 1 Pulley (small)
2 MDL6.113.025 1 Motor Assembly
3 MDL8.268.009 1 Motor Base
4 MDL8.211.052 1 Air Intake Housing 2
5 MDL8.211.051 1 Air Intake Housing 1
6 MDL8.306.030 1 Rear Flap
7 MDL8.306.028 1 Housing
8 MDL8.271.008 2 Hinge Bracket
9 MDL8.281.044 1 Hinge Spring
10 GB845-85 10 Screw (ST3.9X18-F-H)
11 MDL8.271.01 3 1 Pin
12 GB/T818-2000 5 Screw M5xl0
13 MDL8.306.029 1 Motor Housing
14 MDL8.263.006 1 Bearing Cover
15 GB/T276-94 6 Ball Bearing
16 GB/T818-2000 6 Screw, M6xl 5
17 GB864-85 31 Screw, (ST4.8X16-F-H)
18 MDL8.315.004 2 Hub Cap
19 MDL8.043.032 5 Tine Housing 2 (Bottom)
REF PART NO QTY DESCRiPTiON
20 MDL8.043.033 5 Tine Housing 1 (Top)
21 MDL8.288.004 40 Tine
22 MDL8.205.023 1 Reel Axle
23 GB 896 2 Circlip
24 MDL8.123.004 2 Reel Plate
25 GB119-86 2 Round Pin
26 MDL8.224.024 1 Pulley (large)
27 GB894 4 Circlip
28 MDL8.299.004 1 Belt
29 MDL8.306.031 1 Belt Cover
30 MDL8.075.003 2 Height Adjuster
31 MDL8.224.003 4 Roller
32 MDL8.205.019 1 Roller Axle
33 MDL8.212.002 1 Axle Sleeve
34 MDL8.281.025 2 Spring
35 MDL8.919.002 2 Screw
36 MDL5.050.015 1 Axle & Housing Assembly
37 MDL5.224.015 2 Wheel Assembly
9 Call 1-866-576-8388 for missing parts or assembly help
DO NOT RETURN TO STORE
