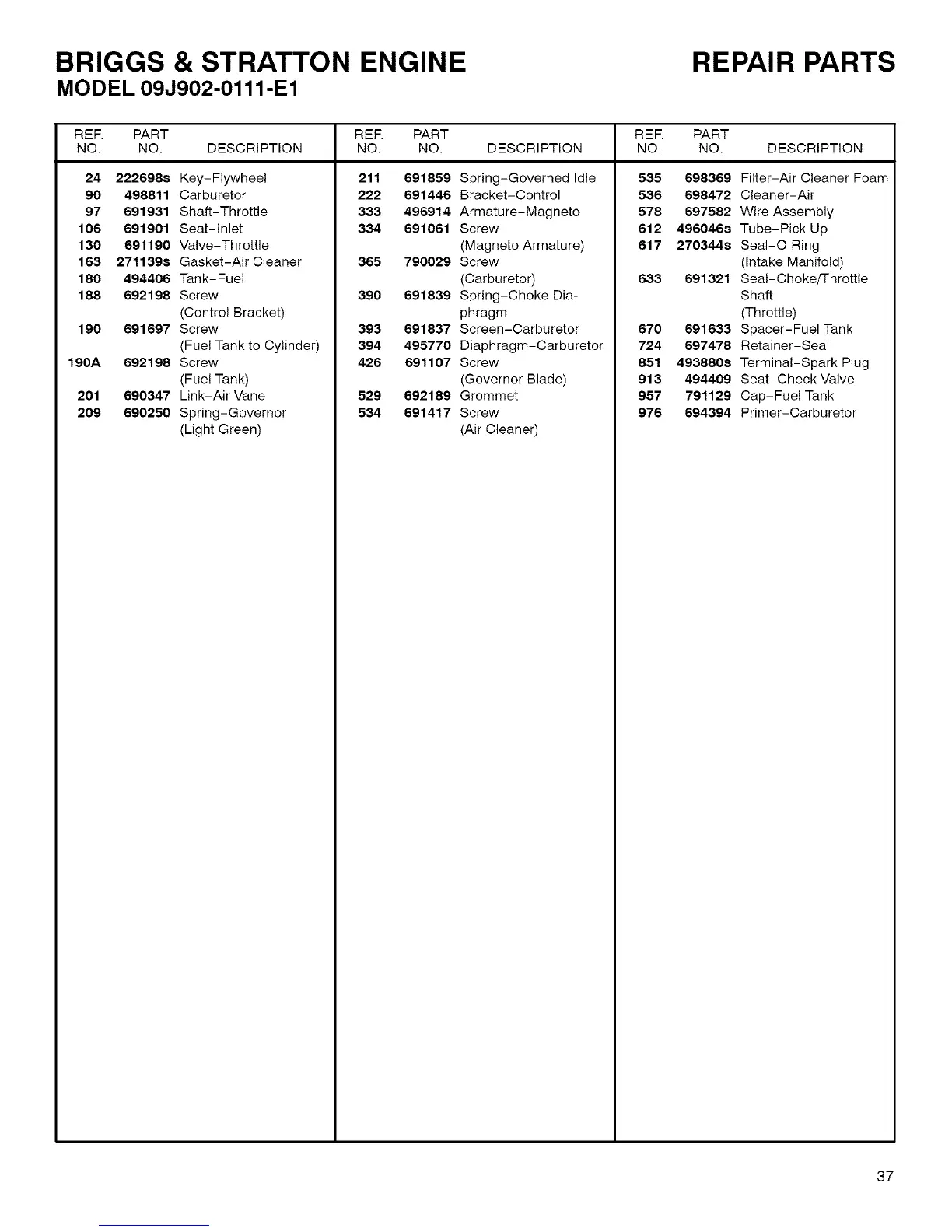

BRIGGS & STRATTON ENGINE
MODEL 09J902-0111-E1
REPAIR PARTS
REF, PART REF. PART REE PART
NO, NO, DESCRIPTION NO, NO. DESCRIPTION NO. NO, DESCRIPTION
24 2226988 Key-Flywheel
90 498811 Carburetor
97 691931 Shaft-Throttle
106 691901 Seat-Inlet
130 691190 Valve-Throttle
163 2711398 Gasket-Air Cleaner
160 494406 Tank-Fue!
186 692196 Screw
(Control Bracket)
190 691697 Screw
(Fuel Tank to Cylinder)
190A 692196 Screw
(Fuel Tank)
201 690347 Link-Air Vane
209 690250 Spring-Governor
(Light Green)
211 691859 Spring-Governed Idle
222 691446 Bracket-Control
333 496914 Armature-Magneto
334 691061 Screw
(Magneto Armature)
365 790029 Screw
(Carburetor)
390 691639 Spring-Choke Dia-
phragm
393 691637 Screen-Carburetor
394 495770 Diaphragm-Carburetor
426 691107 Screw
(Governor Blade)
529 692169 Grommet
534 691417 Screw
(Air Cleaner)
535 698369 Filter-Air Cleaner Foam
536 698472 Cleaner-Air
576 697582 Wire Assembly
612 4960468 Tube-Pick Up
617 2703448 SeaI-O Ring
(Intake Manifold)
633 691321 SeaI-ChokeThrottle
Shaft
(Throttle)
670 691633 Spacer-Fuel Tank
724 697478 Retainer-Seal
851 4938608 Terminal-Spark Plug
913 494409 Seat-Check Valve
957 791129 Cap-Fuel Tank
976 694394 Primer-Carburetor
37
