Air fi lter
Mulcher door
OPERATION

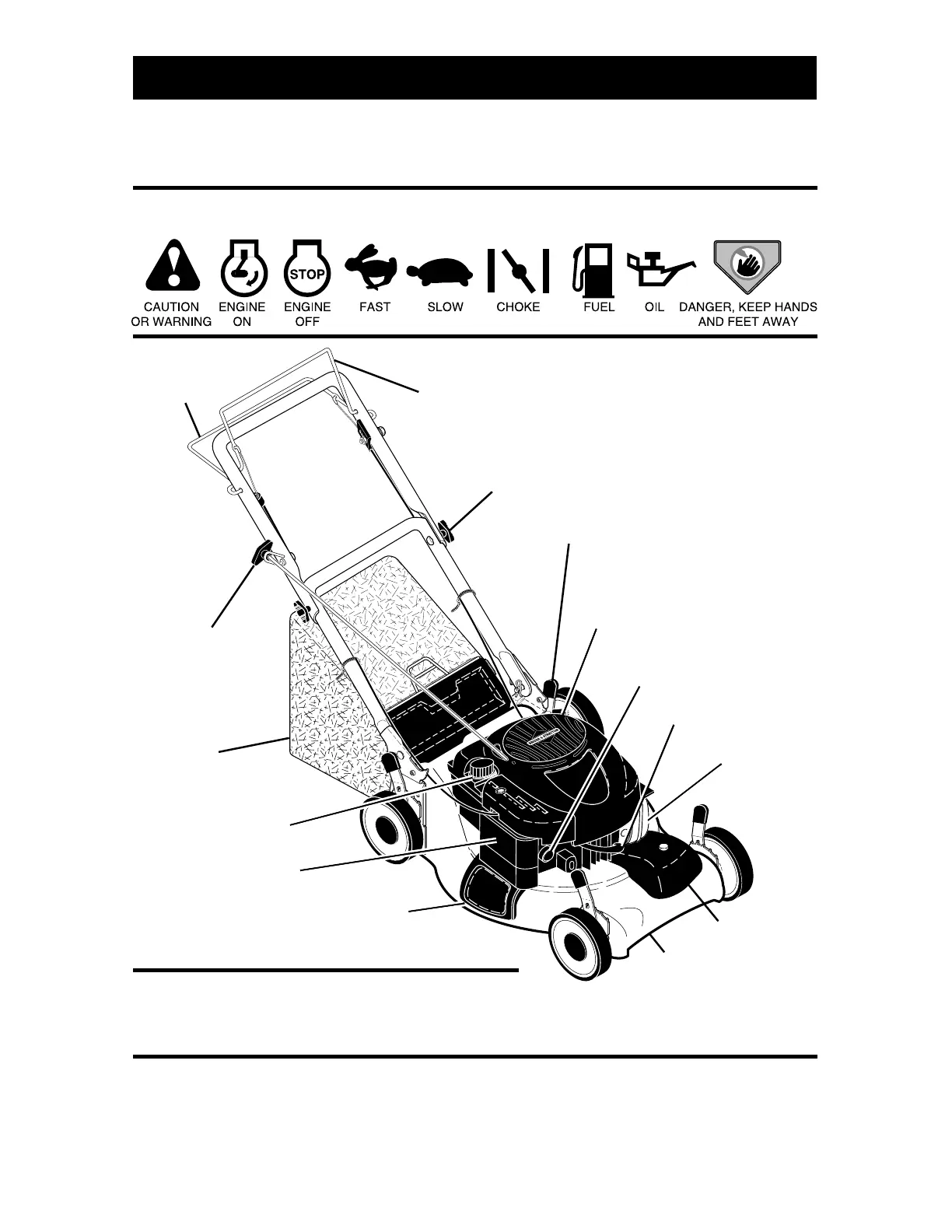

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with
the location of various controls and adjustments. Save this manual for future reference.
Starter
handle
Gasoline fi ller cap
Housing
Wheel adjuster (on each wheel)
Handle knob
Grass
catcher
Engine oil cap with dipstick
Operator presence control bar
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Com-
mis sion. The blade turns when the engine is running.
Operator presence control bar – must
be held down to the handle to start the
engine. Release to stop the engine.
Primer– pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
These symbols may appear on your lawn mower or in literature supplied with the product.
Learn and understand their meaning.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
Drive control bar – used to engage
power-pro pelled forward mo tion of mower.
Starter handle – used for starting the
engine.
Mulcher door – allows con ver sion to
discharging or bagging operation.
Muffl er
Drive
control
bar
Drive cover
Spark plug
Primer
