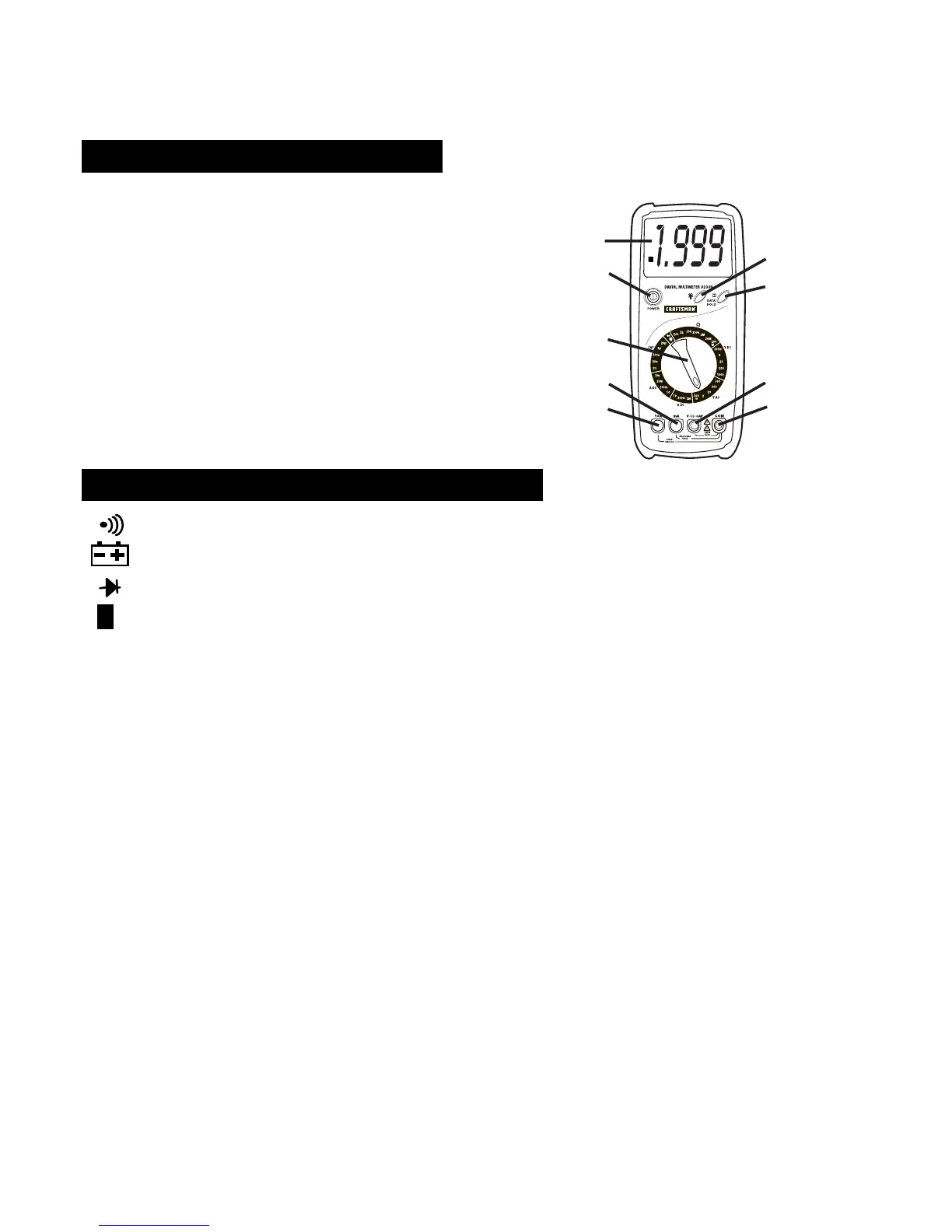

CONTROLS AND JACKS
1. 2000 count Liquid Crystal Display
2. Power switch
3. Function Switch
4. mA current input jack
5. 10A current input jack
6. Backlight pushbutton.
7. Data Hold pushbutton
8. Voltage, resistance and capacitance
positive input jack
9. Common negative input jack
SYMBOLS AND ANNUNCIATORS
Continuity
Low Battery
Diode
H Data Hold
AC Alternating Current or Voltage
DC Direct Current or Voltage
mV, V millivolt, volt (voltage)
!! k!! M! ohm, kilohm, megohm (resistance)
mA, A milliamp, Amp (current)
nF, uF nanofarads, microfarads (capacitance)
