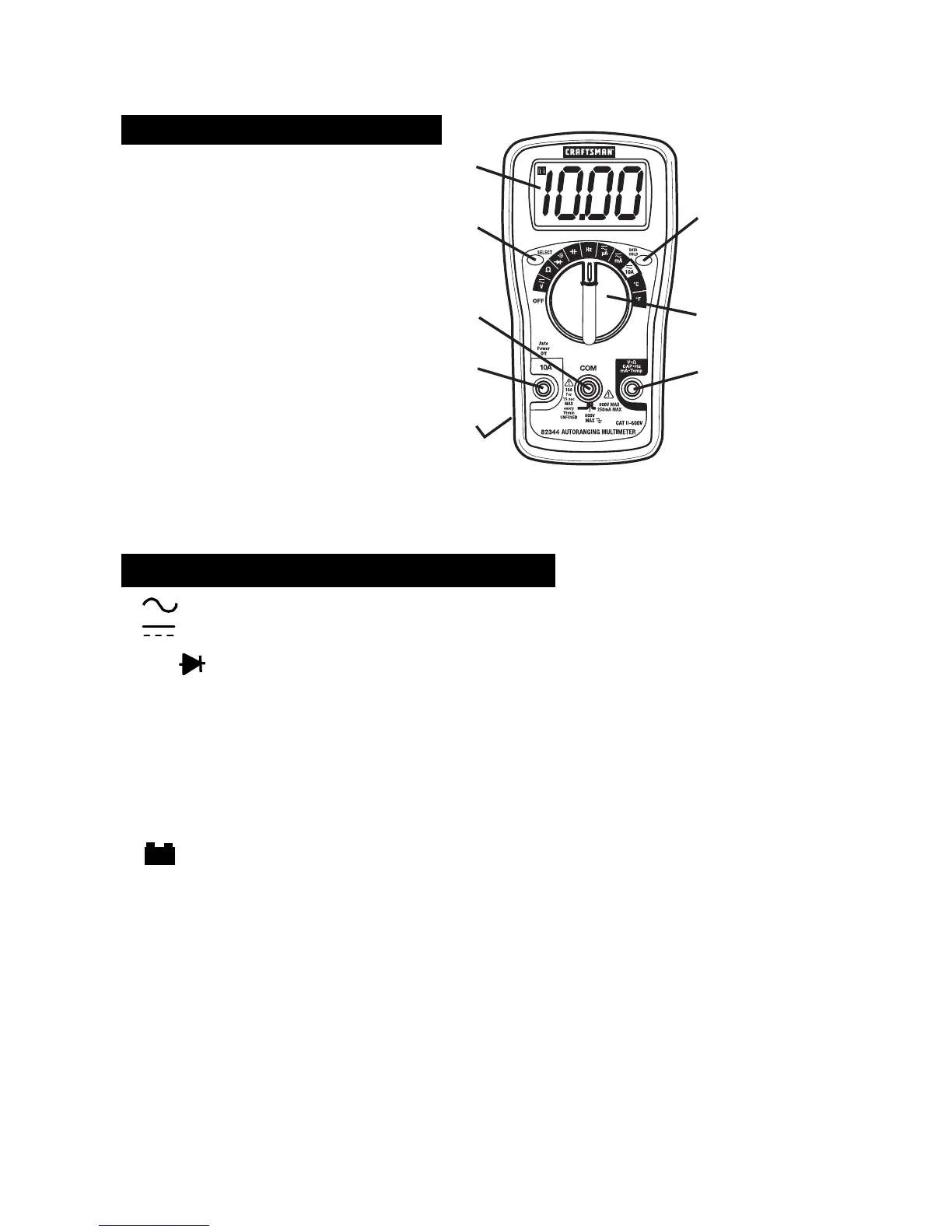

CONTROLS AND JACKS
1. LCD Display
2. DATA HOLD button
3. SELECT button
4. Function switch
5. Positive input jack
6. COM jack
7. 10A jack
8. Rubber boot
Note: Tilt stand and battery
access
is on the rear of unit.
SYMBOLS AND ANNUNCIATORS
AC (voltage)
DC (direct current or voltage)
•))) Continuity and Diode test
mV, V millivolt, volt (voltage)
, k, M ohm, kilohm, megohm (resistance)
mA, A milliamp, Amp (current)
nF, uF nanofarads, microfarads (capacitance)
Hz Hertz (frequency)
º
F,
º
C Degrees Fahrenheit, Centigrade (temperature)
º
Low battery
H Display hold
AUTO Autoranging
