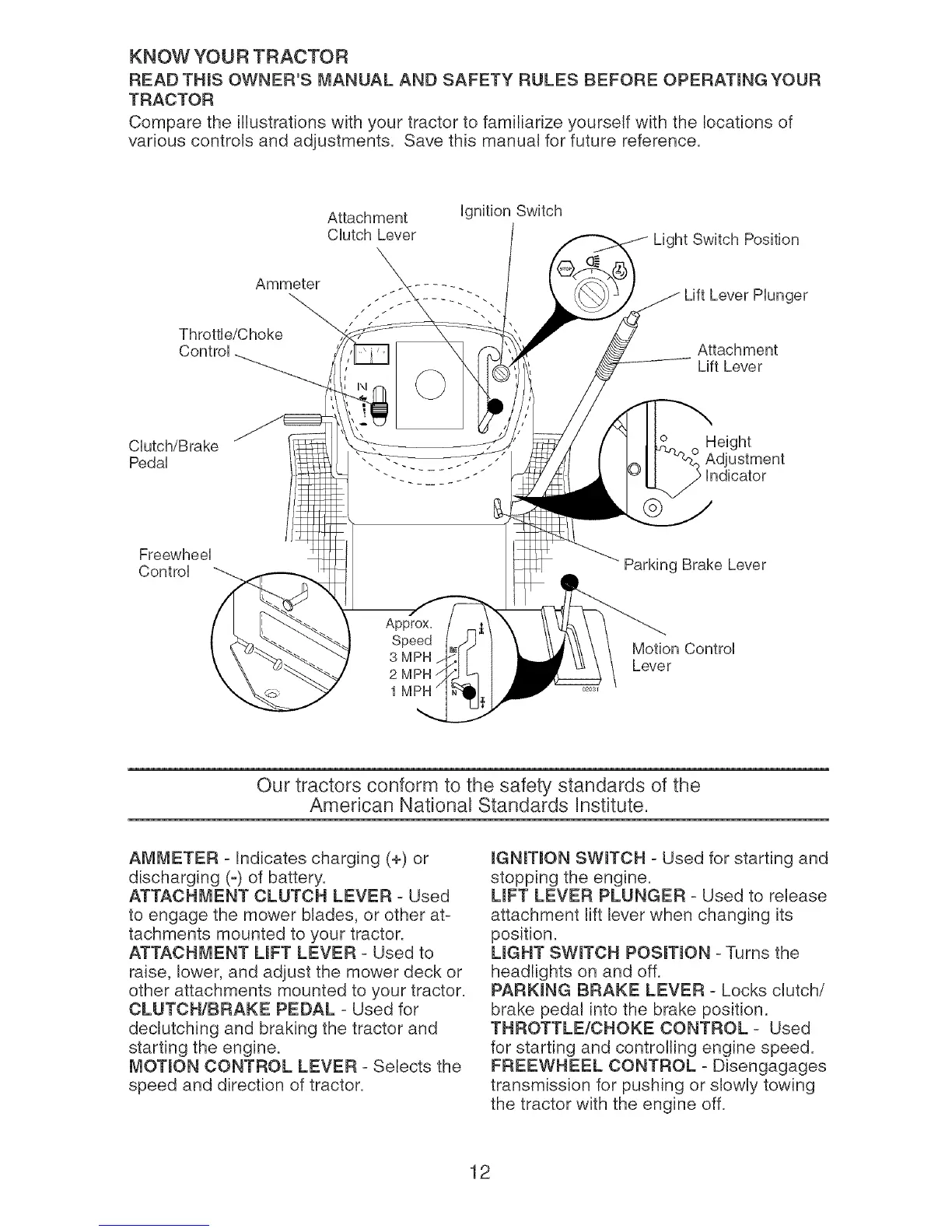

KNOW YOUR TRACTOR
READTHINSOWNER'SMANUALAND SAFETYRULESBEFOREOPERATmNGYOUR
TRACTOR
Comparethe illustrations'withyour tractorto familiarizeyourselfwith the locationsof
variouscontrolsand adjustments.Savethis manualfor future reference.
Attachment
CDtch Lever
ignition Switch
Light Switch Position
Ammeter
.::. --::--.. ger
Throttb/Choke
Control Attachment
Lift Lever
Clutch/Brake
Pedal
Freewheel
Control
Parking Brake Lever
Approx.
Speed Motion Control
3 MPH
Lever
2
1
Our tractors conform to the safety standards of the
American National Standards anstitute.
AMMETER - Indicates charging (+) or
discharging (-) of battery.
ATTACHMENT CLUTCH LEVER - Used
to engage the mower blades, or other at-
tachments mounted to your tractor.
ATTACHMENT UFT LEVER - Used to
raise, lower, and adjust the mower deck or
other attachments mounted to your tractor.
CLUTCH/BRAKE PEDAL - Used for
declutching and braking the tractor and
starting the engine.
MOTmON CONTROL LEVER - Selects the
speed and direction of tractor.
mGNmON SWmTCH - Used for starting and
stopping the engine.
LIFT LEVER PLUNGER - Used to release
attachment lift lever when changing its
position.
UGHT SWmTCH POSITION - Turns the
headlights on and off.
PARKING BRAKE LEVER - Locks clutch/
brake pedal into the brake position.
THROTTLE/CHOKE CONTROL - Used
for starting and controlling engine speed.
FREEWHEEL CONTROL = Disengagages
transmission for pushing or slowly towing
the tractor with the engine off.
12
