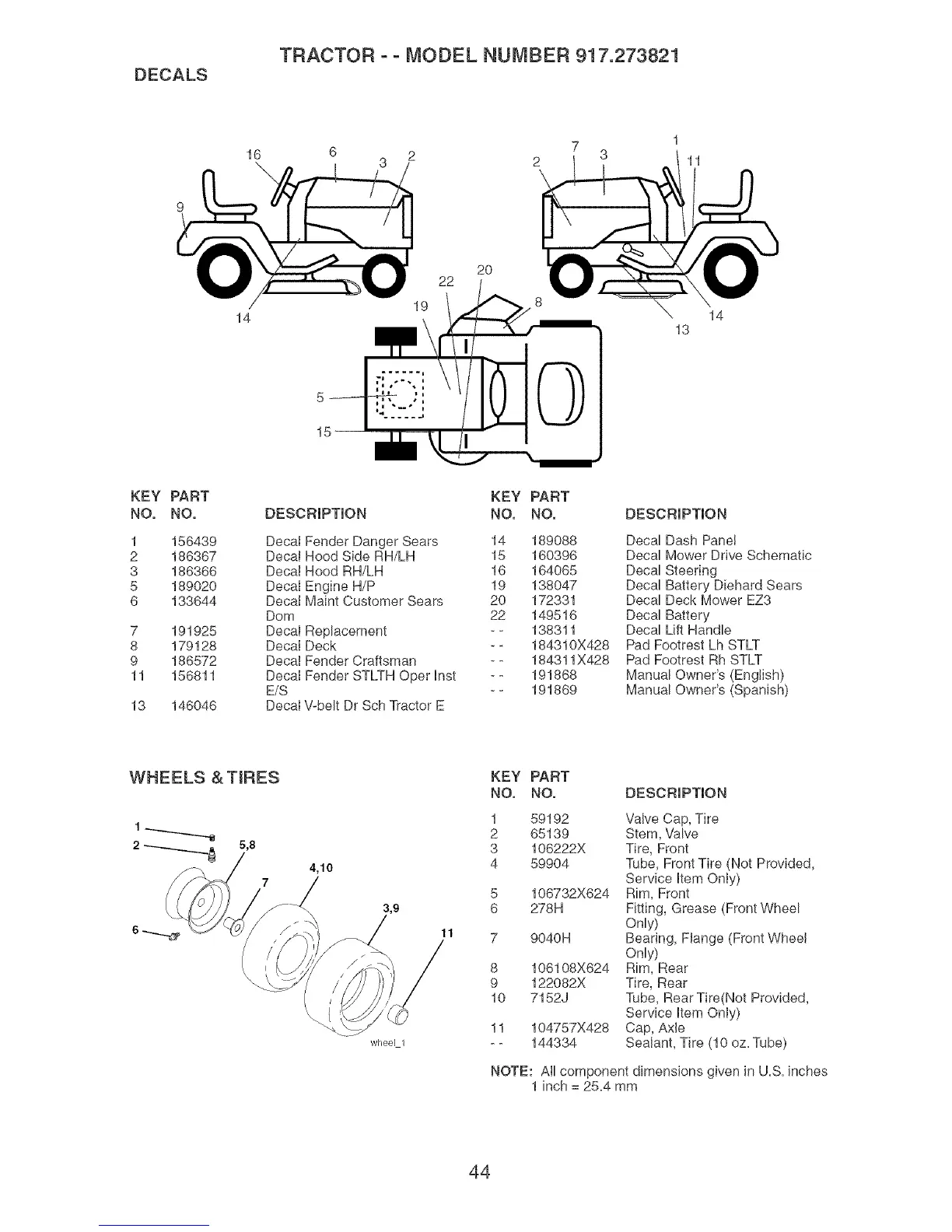

Craftsman 917.273821 - Decals; Wheels & Tires

DECALS
TRACTOR ° ° MODEL NUMBER 917.273821
16
\
7
3 2 2
1
11
14
5
15--
22
19
2O
14
13
KEY PART
NO. NO.
1 156439
2 186367
3 186366
5 189020
6 133644
7 191925
8 179128
9 186572
11 156811
13 146046
DESCRIPTION
Decai Fender Danger Sears
DecaI Hood Side RH/LH
Decal Hood RH/LH
Decal Engine H/P
Decat Maint Customer Sears
Dom
DecaI Replacement
Decal Deck
DecaI Fender Craftsman
Decal Fender STLTH Oper Inst
E/S
Decal V-belt Dr Sch Tractor E
KEY PART
NO. NO.
14 189088
15 160396
16 164065
19 138047
20 172331
22 149516
-- 138311
-- 184310X428
-- 184311X428
-- 191868
-- 191869
DESCRIPTION
Decal Dash Panel
Decal Mower Drive Schematic
Decal Steering
Decal Battery Diehard Sears
Decal Deck Mower EZ3
Decal Battery
Decal Lift Handle
Pad Footrest Lh STLT
Pad Footrest Rh STLT
Manual Owner's (English)
Manual Owner's (Spanish)
4,10
wheeb 1
11
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
8
9
10
11
59192 Valve Cap, Tire
65139 Stem, Valve
106222X Tire, Front
59904 Tube, Front Tire (Not Provided,
Service Item Only)
106732X624 Rim, Front
278H Fitting, Grease (Front Wheel
Only)
9040H Bearing, Flange (Front Wheel
Only)
106108X624 Rim, Rear
122082X Tire, Rear
7152J Tube, Rear Tire(Not Provided,
Service Item Only)
104757X428 Cap, Axle
144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
44
