ELECTRmCAL

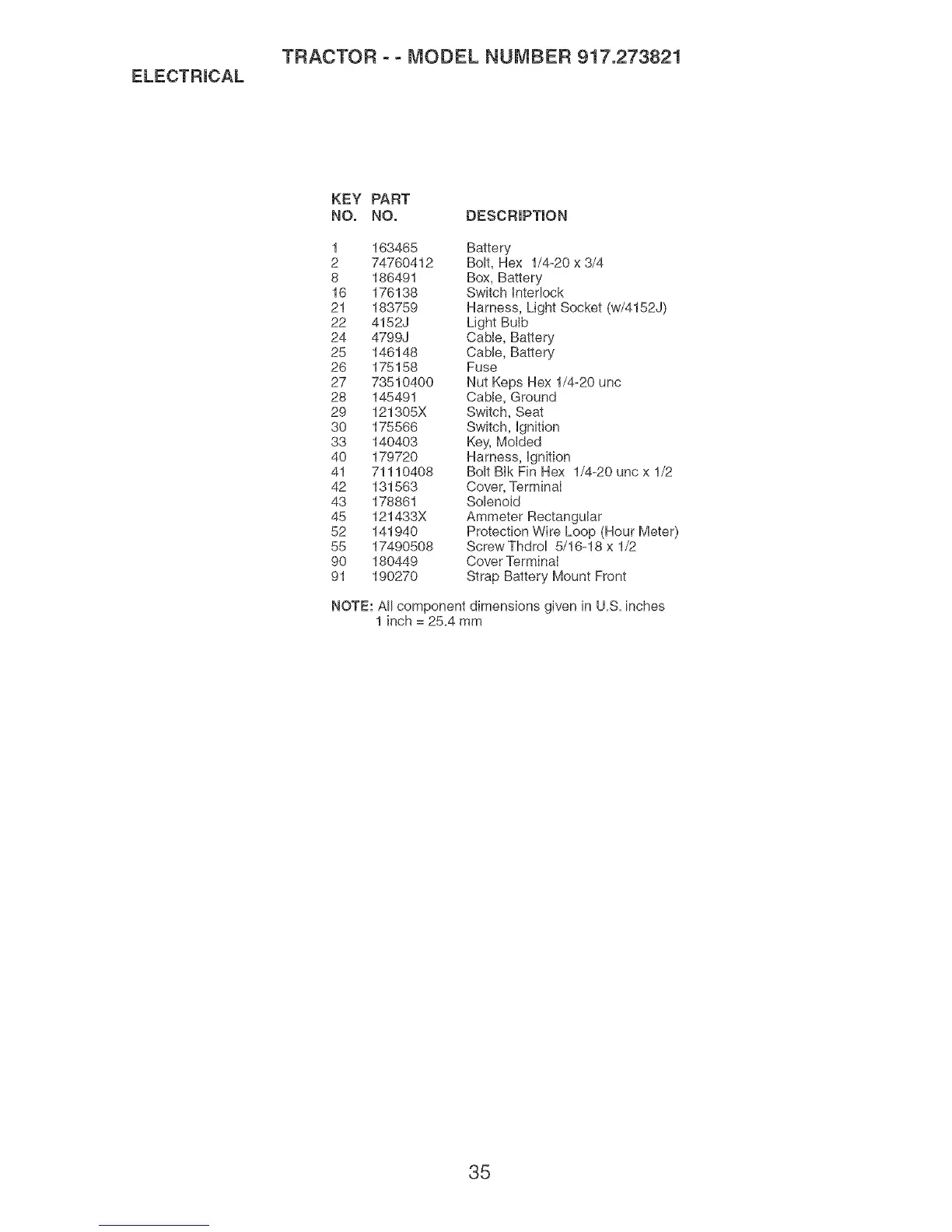

TRACTOR o o MODEL NUMBER 917.273821
KEY PART
NO. NO. DESCRiPTiON
1 163465 Battery
2 74760412 Bolt, Hex 1/4-20 x 3/4
8 186491 Box, Battery
16 176138 Switch Interlock
21 183759 Harness, Light Socket (w/4152J)
22 4152J Light Bulb
24 4799J Cable, Battery
25 146148 Cable, Battery
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 121305X Switch, Seat
30 175566 Switch, Ignition
33 140403 Key, Molded
40 179720 Harness, Ignition
41 71110408 Bolt BIk Fin Hex 1/4-20 unc x 1/2
42 131563 Cover, TerminaI
43 178861 Solenoid
45 121433X Ammeter Rectangular
52 141940 Protection Wire Loop (Hour Meter)
55 17490508 ScrewThdrol 5/16-18 x 1/2
90 180449 Cover Terminal
91 190270 Strap Battery Mount Front
NOTE: All component dimensions given in U=S=inches
1 inch = 25=4 mm
35
