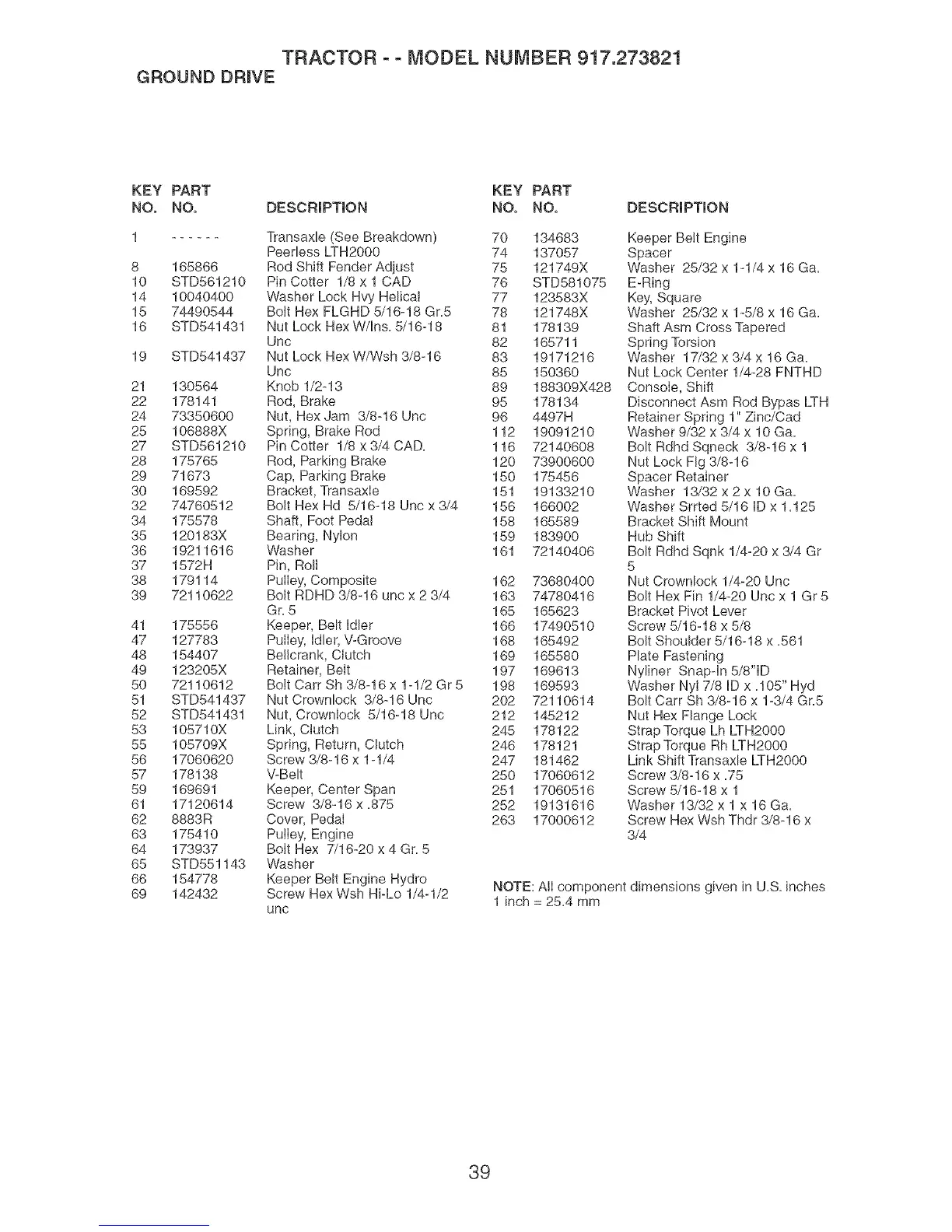

Craftsman 917.273821 - Page 39

TRACTOR o o MODEL NUMBER 917.273821
GROUND DRmVE
KEY PART KEY PART
NO, NO, DESCRiPTiON NO, NO, DESCRiPTiON
1 Transaxle (See Breakdown) 70 134683
Peerless LTH2000 74 137057
8 165866 Rod Shift Fender Adjust 75 121749X
10 STD561210 Pin Cotter 1/8 x 1 CAD 76 STD581075
14 10040400 Washer Lock Hvy Helical 77 123583X
15 74490544 Bolt Hex FLGHD 5/16-18 Gr=5 78 121748X
16 STD541431 Nut Lock Hex W/Ins= 5/16-18 81 178139
Unc 82 165711
19 STD541437 Nut Lock Hex W/Wsh 3/8-16 83 19171216
Unc 85 150360
21 130564 Knob 1/2-13 89 188309X428
22 178141 Rod, Brake 95 178134
24 73350600 Nut, Hex Jam 3/8-16 Unc 96 4497H
25 106888X Spring, Brake Rod 112 19091210
27 STD561210 Pin Cotter 1/8 x 3/4 CAD= 116 72140608
28 175765 Rod, Parking Brake 120 73900600
29 71673 Cap, Parking Brake 150 175456
30 169592 Bracket, TransaxIe 151 19133210
32 74760512 Bolt Hex Hd 5/16-18 Uric x 3/4 156 166002
34 175578 Shaft, Foot Pedal 158 165589
35 120183X Bearing, Nylon 159 183900
36 19211616 Washer 161 72140406
37 1572H Pin, Roll
38 179114 Pulley, Composite 162 73680400
39 72110622 Bolt RDHD 3/8-16 unc x 2 3/4 163 74780416
Gr=5 165 165623
41 175556 Keeper, Belt Idler 166 17490510
47 127783 Pulley, Idler, V-Groove 168 165492
48 154407 Bellcrank, Clutch 169 165580
49 123205X Retainer, Belt 197 169613
50 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 198 169593
51 STD541437 Nut Crownlock 3/8-16 Unc 202 72110614
52 STD541431 Nut, Crownlock 5/16-18 Unc 212 145212
53 105710X Link, Clutch 245 178122
55 105709X Spring, Return, Clutch 246 178121
56 17060620 Screw 3/8-16 x 1-1/4 247 181462
57 178138 V-Belt 250 17060612
59 169691 Keeper, Center Span 251 17060516
61 17120614 Screw 3/8-16 x =875 252 19131616
62 8883R Cover, Pedal 263 17000612
63 175410 PulIey, Engine
64 173937 Bolt Hex 7/16-20 x 4 Gr=5
65 STD551143 Washer
66 154778 Keeper Belt Engine Hydro
69 142432 Screw Hex Wsh Hi-Lo 1/4-1/2
unc
Keeper Belt Engine
Spacer
VVasher 25/32 x 1-1/4 x 16 Ga=
E-Ring
Key, Square
Washer 25/32 x 1-5/8 x 16 Ga=
Shaft Asm Cross Tapered
Spring Torsion
Washer 17/32 x 3/4 x 16 Ga=
Nut Lock Center 1/4-28 FNTHD
Console, Shift
Disconnect Asm Rod Bypas LTH
Retainer Spring 1" Zinc/Cad
Washer 9/32 x 3/4 x 10 Ga=
Bolt Rdhd Sqneck 3/8-16 x 1
Nut Lock Fig 3/8-16
Spacer Retainer
Washer 13/32 x 2 x 10 Ga=
Washer Srrted 5/16 ID x 1=125
Bracket Shift Mount
Hub Shift
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr
5
Nut Crownlock 1/4-20 Unc
Bolt Hex Fin 1/4-20 Uric x 1 Gr 5
Bracket Pivot Lever
Screw 5/16-18 x 5/8
Bolt Shoulder 5/16-18 x =561
Plate Fastening
Nyliner Snapqn 5/8'qD
Washer Nyi 7/8 ID x =105" Hyd
Bolt Cart Sh 3/8-16 x 1-3/4 Gr=5
Nut Hex Flange Lock
Strap Torque Lh LTH2000
Strap Torque Rh LTH2000
Link Shift Transaxle LTH2000
Screw 3/8-16 x =75
Screw 5/16-18 x 1
Washer 13/32 x 1 x 16 Ga=
Screw Hex Wsh Thdr 3/8-16 x
3/4
NOTE: AII component dimensions given in U=S=inches
1 inch = 25=4 mm
39
