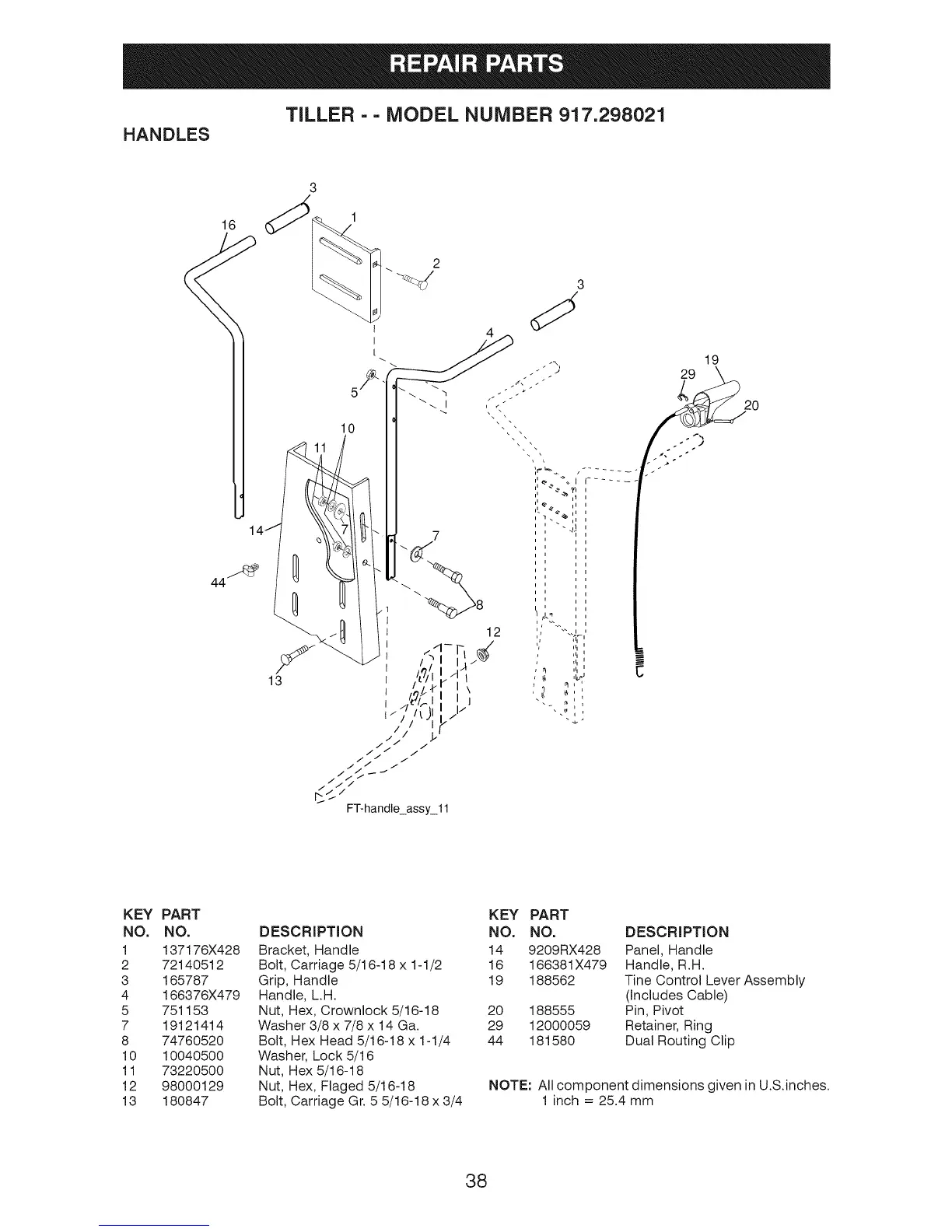

TILLER - - MODEL NUMBER 917.298021
HANDLES
16
1
2
lO
7
19
29
20
KEY
NO.
1
2
3
4
5
7
8
10
11
12
13
PART
NO.
137176X428
72140512
165787
166376X479
751153
19121414
74760520
10040500
73220500
98000129
180847
KEY
DESCRIPTION NO.
Bracket, Handle 14
Bolt, Carriage 5/16-18 x 1-1/2 16
Grip, Handle 19
Handle, L.H.
Nut, Hex, Crownlock 5/16-18 20
Washer 3/8 x 7/8 x 14 Ga. 29
Bolt, Hex Head 5/16-18 x 1-1/4 44
Washer, Lock 5/16
Nut, Hex 5/16-18
Nut, Hex, Flaged 5/16-18
Bolt, Carriage Gr. 5 5/16-18 x 3/4
PART
NO. DESCRiPTiON
9209RX428 Panel, Handle
166381X479 Handle, R.H.
188562 Tine Control Lever Assembly
(Includes Cable)
188555 Pin, Pivot
12000059 Retainer, Ring
181580 Dual Routing Clip
NOTE: All component dimensions given in U.S.inches.
1 inch -- 25.4 mm
