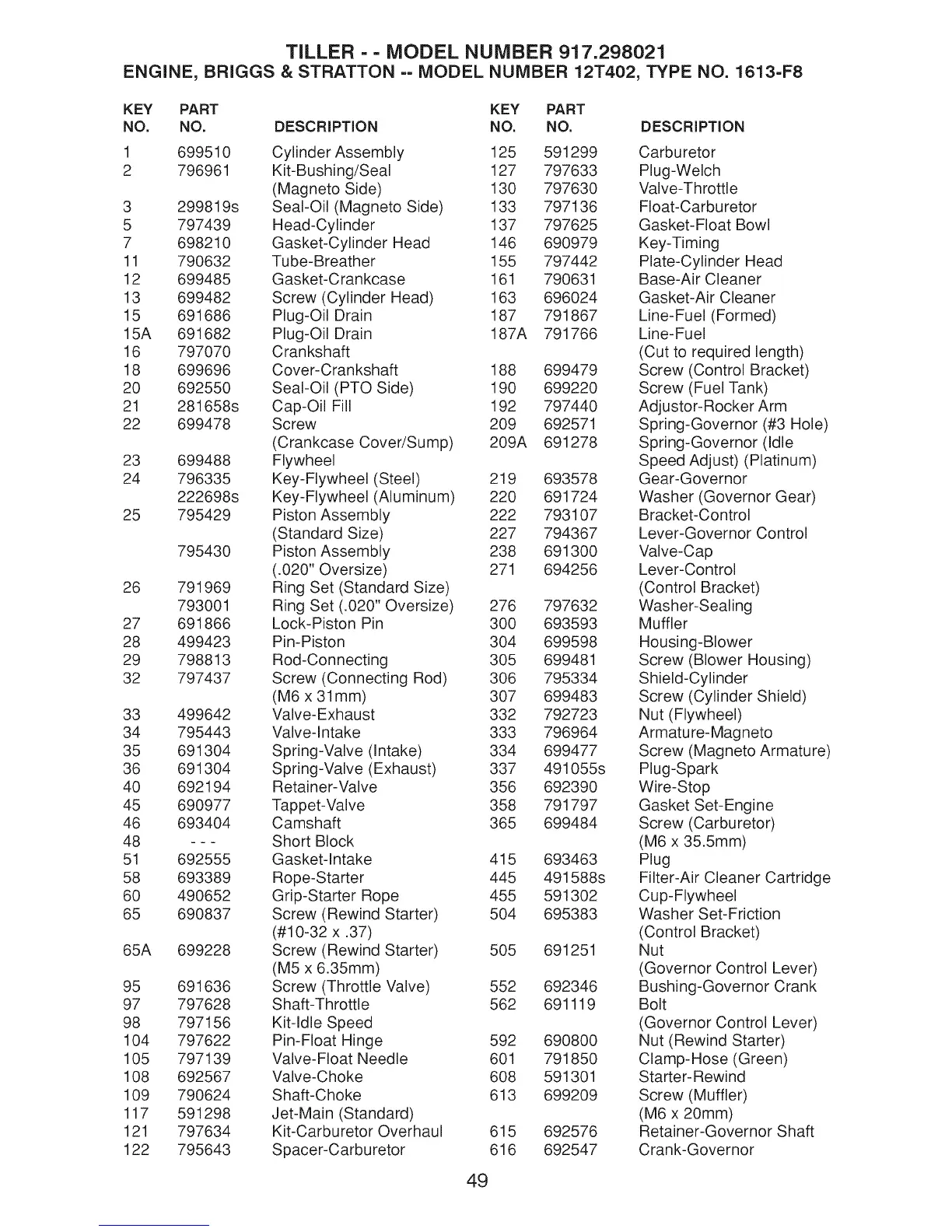

TILLER - =MODEL NUMBER 917.298021
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 12T402, TYPE NO. 1613-F8
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRiPTiON
1 699510 Cylinder Assembly 125 591299 Carburetor
2 796961 Kit-Bushing/Seal 127 797633 Plug-Welch
(Magneto Side) 130 797630 Valve-Throttle
3 299819s Seal-Oil (Magneto Side) 133 797136 Float-Carburetor
5 797439 Head-Cylinder 137 797625 Gasket-Float Bowl
7 698210 Gasket-Cylinder Head 146 690979 Key-Timing
11 790632 Tube-Breather 155 797442 Plate-Cylinder Head
12 699485 Gasket-Crankcase 161 790631 Base-Air Cleaner
13 699482 Screw (Cylinder Head) 163 696024 Gasket-Air Cleaner
15 691686 Plug-Oil Drain 187 791867 Line-Fuel (Formed)
15A 691682 Plug-Oil Drain 187A 791766 Line-Fuel
16 797070 Crankshaft (Cut to required length)
18 699696 Cover-Crankshaft 188 699479 Screw (Control Bracket)
20 692550 Seal-Oil (PTO Side) 190 699220 Screw (Fuel Tank)
21 281658s Cap-Oil Fill 192 797440 Adjustor-Rocker Arm
22 699478 Screw 209 692571 Spring-Governor (#3 Hole)
(Crankcase Cover/Sump) 209A 691278 Spring-Governor (Idle
23 699488 Flywheel Speed Adjust) (Platinum)
24 796335 Key-Flywheel (Steel) 219 693578 Gear-Governor
222698s Key-Flywheel (Aluminum) 220 691724 Washer (Governor Gear)
25 795429 Piston Assembly 222 793107 Bracket-Control
(Standard Size) 227 794367 Lever-Governor Control
795430 Piston Assembly 238 691300 Valve-Cap
(.020" Oversize) 271 694256 Lever-Control
26 791969 Ring Set (Standard Size) (Control Bracket)
793001 Ring Set (.020" Oversize) 276 797632 Washer-Sealing
27 691866 Lock-Piston Pin 300 693593 Muffler
28 499423 Pin-Piston 304 699598 Housing-Blower
29 798813 Rod-Connecting 305 699481 Screw (Blower Housing)
32 797437 Screw (Connecting Rod) 306 795334 Shield-Cylinder
(M6 x 31 mm) 307 699483 Screw (Cylinder Shield)
33 499642 Valve-Exhaust 332 792723 Nut (Flywheel)
34 795443 Valve-Intake 333 796964 Armature-Magneto
35 691304 Spring-Valve (Intake) 334 699477 Screw (Magneto Armature)
36 691304 Spring-Valve (Exhaust) 337 491055s Plug-Spark
40 692194 Retainer-Valve 356 692390 Wire-Stop
45 690977 Tappet-Valve 358 791797 Gasket Set-Engine
46 693404 Camshaft 365 699484 Screw (Carburetor)
48 - - - Short Block (M6 x 35.5mm)
51 692555 Gasket-intake 415 693463 Plug
58 693389 Rope-Starter 445 491588s Filter-Air Cleaner Cartridge
60 490652 Grip-Starter Rope 455 591302 Cup-Flywheel
65 690837 Screw (Rewind Starter) 504 695383 Washer Set-Friction
(#10-32 x .37) (Control Bracket)
65A 699228 Screw (Rewind Starter) 505 691251 Nut
(M5 x 6.35mm) (Governor Control Lever)
95 691636 Screw (Throttle Valve) 552 692346 Bushing-Governor Crank
97 797628 Shaft-Throttle 562 691119 Bolt
98 797156 Kit-Idle Speed (Governor Control Lever)
104 797622 Pin-Float Hinge 592 690800 Nut (Rewind Starter)
105 797139 Valve-Float Needle 601 791850 Clamp-Hose (Green)
108 692567 Valve-Choke 608 591301 Starter- Rewind
109 790624 Shaft-Choke 613 699209 Screw (Muffler)
117 591298 Jet-Main (Standard) (M6 x 20mm)
121 797634 Kit-Carburetor Overhaul 615 692576 Retainer-Governor Shaft
122 795643 Spacer-Carbu retor 616 692547 Crank-Governor
49
