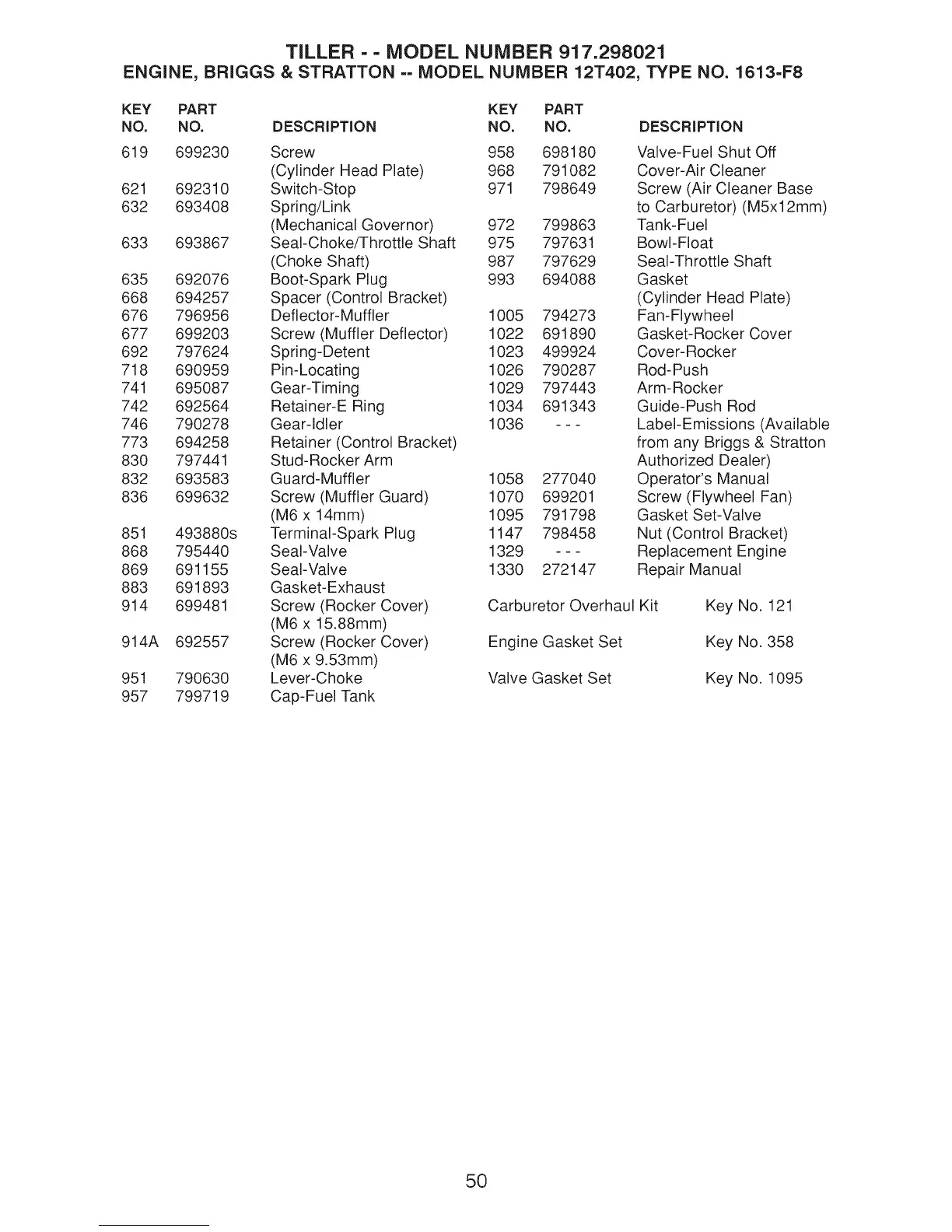

TILLER - - MODEL NUMBER 917.298021
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 12T402, TYPE NO. 1613-F8
KEY PART KEY PART
NO. NO. DESCRiPTiON NO. NO.
619 699230 Screw 958 698180
(Cylinder Head Plate) 968 791082
621 692310 Switch-Stop 971 798649
632 693408 Spring/Link
(Mechanical Governor) 972 799863
633 693867 Seal-Choke/Throttle Shaft 975 797631
(Choke Shaft) 987 797629
635 692076 Boot-Spark Plug 993 694088
668 694257 Spacer (Control Bracket)
676 796956 Deflector-Muffler 1005 794273
677 699203 Screw (Muffler Deflector) 1022 691890
692 797624 Spring-Detent 1023 499924
718 690959 Pin-Locating 1026 790287
741 695087 Gear-Timing 1029 797443
742 692564 Retainer-E Ring 1034 691343
746 790278 Gear-Idler 1036 - - -
773 694258 Retainer (Control Bracket)
830 797441 Stud-Rocker Arm
832 693583 Guard-Muffler 1058 277040
836 699632 Screw (Muffler Guard) 1070 699201
(M6x14mm) 1095 791798
851 493880s Terminal-Spark Plug 1147 798458
868 795440 Seal-Valve 1329 - - -
869 691155 Seal-Valve 1330 272147
883 691893 Gasket-Exhaust
914 699481 Screw (Rocker Cover) Carburetor Overhaul Kit
(M6 x 15.88mm)
914A 692557 Screw (Rocker Cover) Engine Gasket Set
(M6 x 9.53mm)
951 790630 Lever-Choke Valve Gasket Set
957 799719 Cap-Fuel Tank
DESCRIPTION
Valve-Fuel Shut Off
Cover-Air Cleaner
Screw (Air Cleaner Base
to Carburetor) (M5x12mm)
Tank-Fuel
Bowl-Float
Seal-Throttle Shaft
Gasket
(Cylinder Head Plate)
Fan-Flywheel
Gasket-Rocker Cover
Cover-Rocker
Rod-Push
Arm-Rocker
Guide-Push Rod
Label-Emissions (Available
from any Briggs & Stratton
Authorized Dealer)
Operator's Manual
Screw (Flywheel Fan)
Gasket Set-Valve
Nut (Control Bracket)
Replacement Engine
Repair Manual
Key No. 121
Key No. 358
Key No. 1095
50
