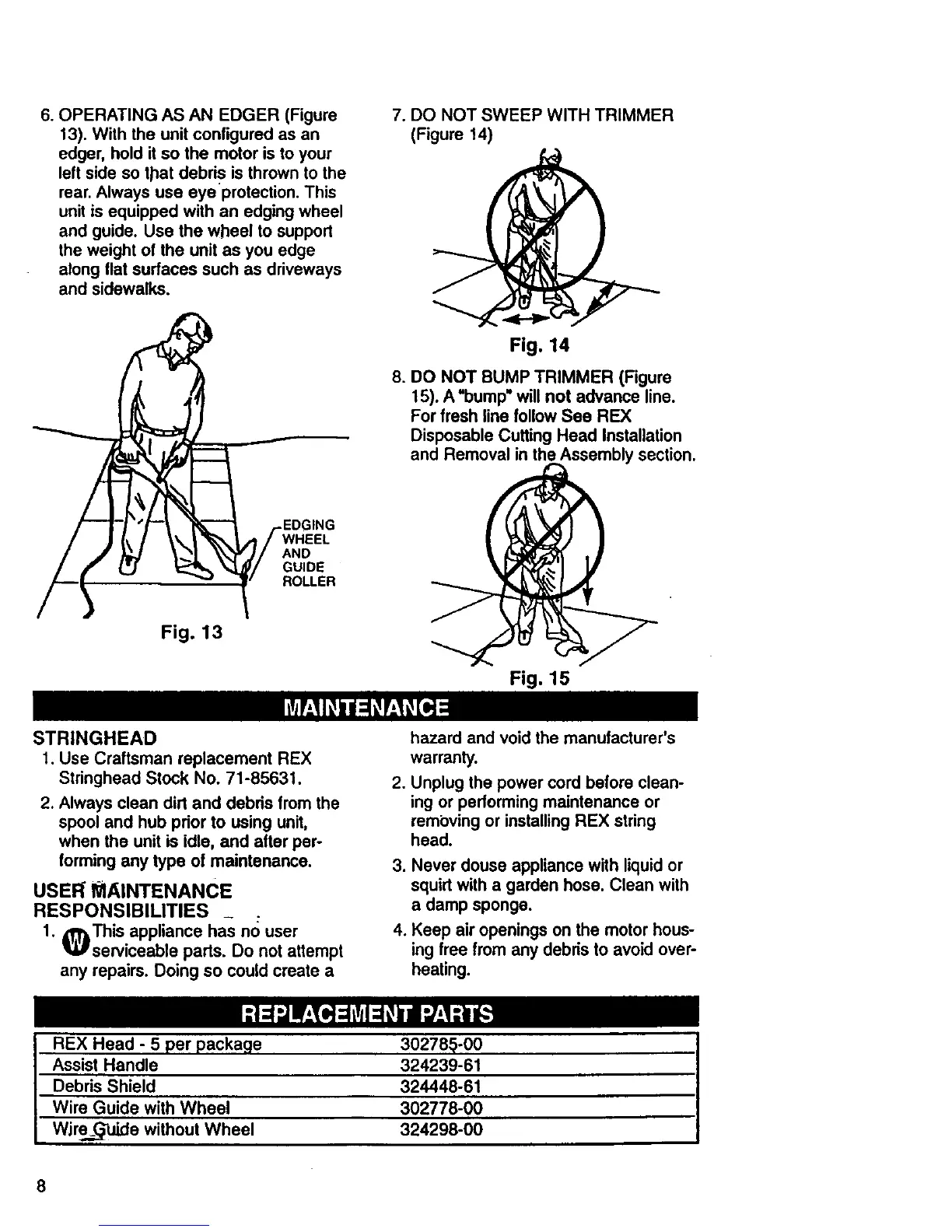

6.OPERATINGAS AN EDGER(Figure
13).Withthe unit configured as an
edger, hold it so the motor is to your
left side so that debris is thrown to the
rear. Always use eyeprotection. This
unit is equipped with an edging wheel
and guide. Use the wheel to support
the weight of the unit as you edge
along flat surfaces such as driveways
and sidewalks.
Fig. 13
7. DO NOT SWEEP WITH TRIMMER
(Figure 14)
Fig. 14
8. DO NOT BUMP TRIMMER (Figure
15). A "bump" will not advance line.
For fresh line follow See REX
Disposable Cutting Head Installation
and Removal in the Assembly section.
Fig. 15
STRINGHEAD
1. Use Craftsman replacement REX
Stringhead Stock No. 71-85631.
2. Always clean dirt and debris from the
spool and hub prior to using unit,
when the unit is idle, and after per-
forming any type of maintenance.
USER MAINTENANCE
RESPONSIBILITIES
1. _LThis appliance ha_sno user
_gF
serviceable pads. Do not attempt
any repairs. Doing so could create a
hazard and void the manufacturer's
warranty.
2. Unplug the power cord before clean-
ing or performing maintenance or
removing or installing REX string
head.
3. Never douse appliance with liquidor
squid with a garden hose. Clean with
a damp sponge.
4. Keep airopenings on the motor hous-
ing free from any debris to avoid over-
heating.
REX Head - 5 per package
Assist Handle
Debris Shield
Wire Guide with Wheel
Wjr_e without Wheel
30278_-00
324239-61
324448-61
302778-00
324298-00
8
