Sears Canada Inc., 290 Yonge Street, Toronto, On M5B 2C3
Visit our web site: sears.ca
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.

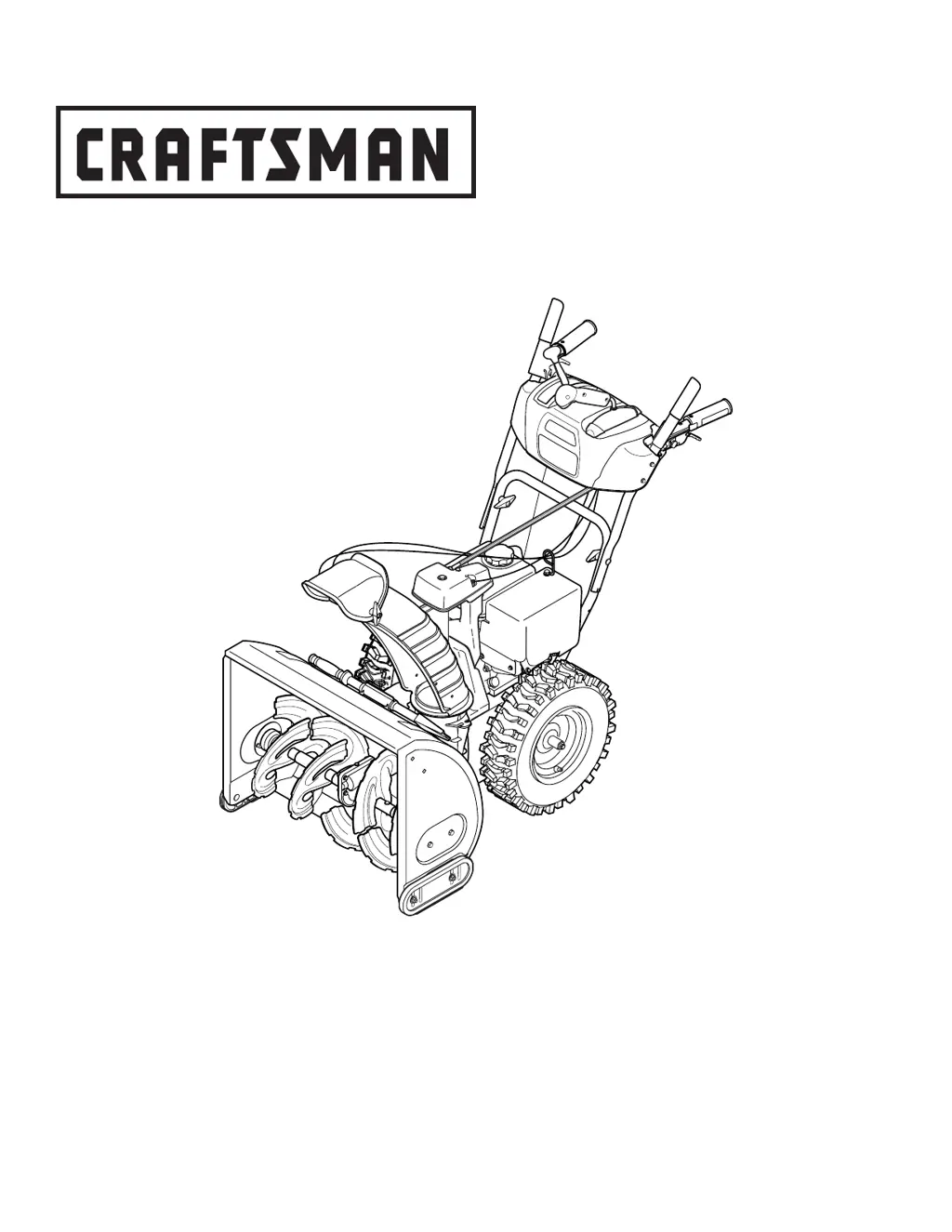

Operator’s Manual
24” SNOW THROWER
Model No. C459-52222 (24 po)
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
®
10/8/13
769-09329

Table of Contents

Questions and Answers

  • D
    Dr. Trevor WeissAug 10, 2025
    What to do if my Craftsman C459-52222 engine is running erratically?
    • S
      Suzanne FloresAug 10, 2025
      If your Craftsman Snow Blower's engine is running erratically, with inconsistent RPM (hunting or surging), here's what you can do: * Ensure the engine isn't running on CHOKE by moving the choke lever to the RUN position. * If the fuel is stale, fill the tank with clean, fresh gasoline. * If there's water or dirt in the fuel system, drain the fuel tank and refill it with fresh fuel. * If the engine is over-governed, contact an authorized Service Center.
  • G
    ghollandAug 14, 2025
    Why is my Craftsman Snow Blower losing power?
    • D
      dustin90Aug 14, 2025
      Your Craftsman Snow Blower might be losing power because the spark plug wire is loose; connect and tighten the spark plug wire. Another possible cause is a plugged gas cap vent hole; remove any ice and snow from the gas cap, and ensure the vent hole is clear.
  • J
    jason01Aug 18, 2025
    What to do if my Craftsman Snow Blower unit fails to discharge snow?
    • C
      Cheryl RobinsonAug 18, 2025
      If your Craftsman Snow Blower fails to discharge snow, here are some possible solutions: * If the chute assembly is clogged, stop the engine immediately, disconnect the spark plug wire, and clean the chute assembly and inside of the auger housing with a clean-out tool or a stick. * If there is a foreign object lodged in the auger, stop the engine immediately, disconnect the spark plug wire, and remove the object from the auger with a clean-out tool or a stick. * For the auger control cable in need of adjustment, refer to Auger Control Test. * For the auger belt loose or damaged, refer to Maintenance & Adjustments section. * If the shear pins are sheared, replace them with new ones.
  • D
    Deborah ColemanAug 22, 2025
    Why does my Craftsman C459-52222 Snow Blower have excessive vibration?
    • R
      Rebecca HamiltonAug 23, 2025
      If your Craftsman Snow Blower is experiencing excessive vibration, it may be due to loose parts or a damaged auger. Immediately stop the engine and disconnect the spark plug wire. Then, tighten all bolts and nuts. If the vibration continues, have the unit serviced by an authorized Service Center.
  • S
    spearskevinAug 27, 2025
    What to do if my Craftsman C459-52222 Snow Blower unit fails to propel itself?
    • S
      Samantha MoralesAug 27, 2025
      If your Craftsman Snow Blower unit fails to propel itself, it could be due to several reasons: * The drive control cable may need adjustment; refer to the Maintenance & Adjustments section to adjust the drive control cable. * The drive belt might be loose or damaged; refer to the Service section to replace the drive belt. * The friction wheel could be worn; refer to the Service section to replace the friction wheel.
  • D
    Donna MooreAug 31, 2025
    How to fix a Craftsman C459-52222 chute that won't rotate?
    • M
      Mr. Seth LeeAug 31, 2025
      If the chute on your Craftsman Snow Blower fails to easily rotate 180 degrees, it might be assembled incorrectly. Disassemble the chute control and reassemble it as directed in the Assembly & Set-up section.
  • K
    Kathy BryantNov 5, 2025
    Why does my Craftsman C459-52222 engine fail to start?
    • A
      Alexa LeeNov 5, 2025
      Your Craftsman Snow Blower might fail to start due to several reasons: * The choke may not be in the CHOKE position, so move the choke to the CHOKE position. * The spark plug wire might be disconnected; connect the wire to the spark plug. * There could be a faulty spark plug; in this case, clean, adjust the gap, or replace the spark plug. * The fuel tank might be empty or contain stale fuel; fill the tank with clean, fresh gasoline. * The engine might not be primed; prime the engine as instructed in the Operation section. * The key might not be in the ignition; insert the key fully into the switch. * The extension cord might not be connected (when using the electric start button); connect one end of the extension cord to the electric starter outlet and the other end to a thr...

Summary

Safety Instructions

Safe Handling of Gasoline

Precautions for fueling and storing gasoline safely.

Clearing a Clogged Discharge Chute

Steps to safely clear a blocked snow chute using the clean-out tool.

Safety Symbols

Explains safety symbols found on the product and their meaning.

Assembly

Auger Control

Test and adjustment procedure to ensure proper auger engagement and disengagement.

Operation

Shift Lever

Starting the Engine

Step-by-step instructions for starting the engine using electric or recoil start.

Replacing Shear Pins

Procedure for checking and replacing auger shear pins if they shear.

Service and Maintenance

Maintenance Schedule

Chart outlining recommended service intervals and tasks.

Engine Maintenance

Checking Engine Oil

How to check the engine oil level before each operation.

Changing Engine Oil

Checking Spark Plug

Adjustments

Belt Replacement

Steps to remove and replace the auger and drive belts.

Troubleshooting

Craftsman C459-52222 Specifications

General IconGeneral
BrandCraftsman
ModelC459-52222
CategorySnow Blower
LanguageEnglish
