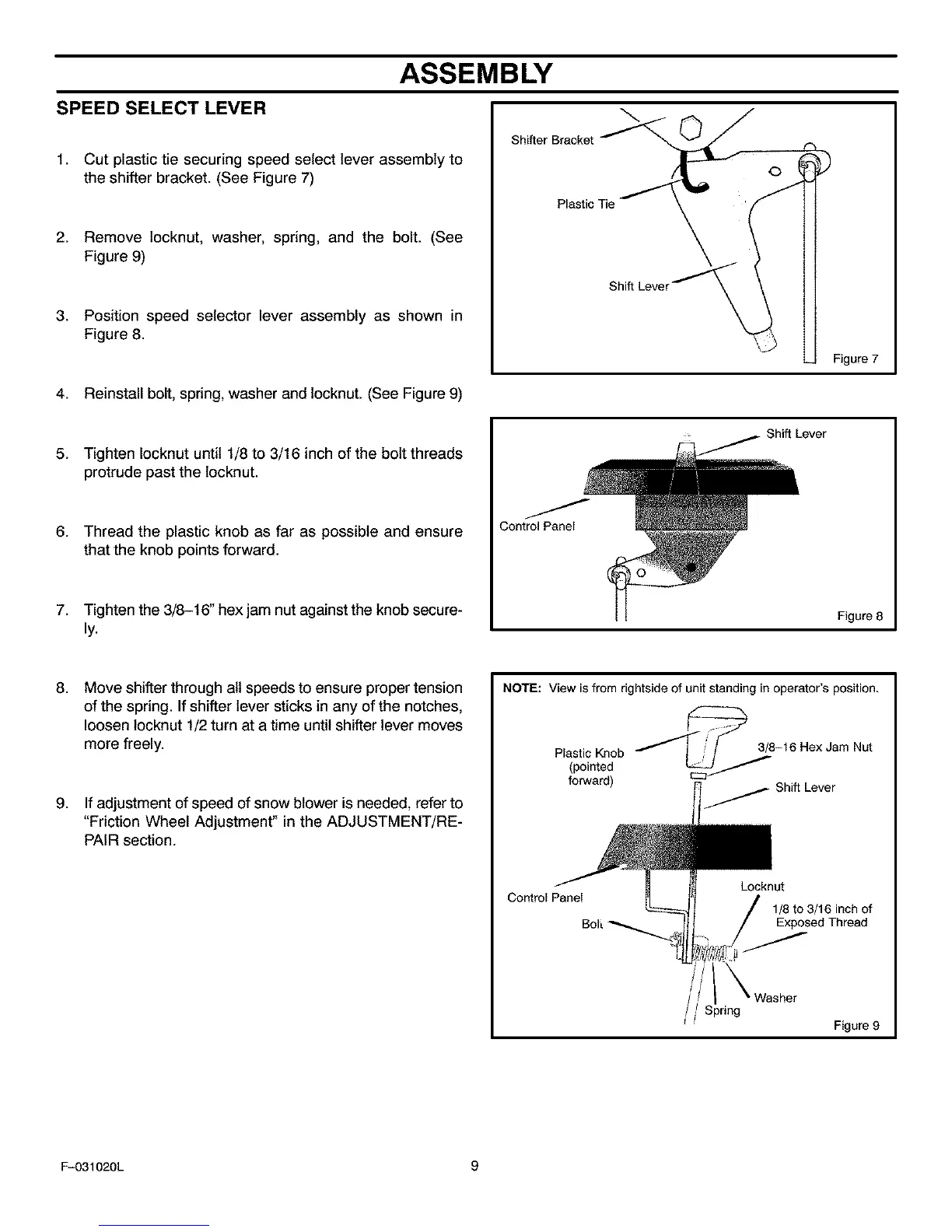

ASSEMBLY
SPEED SELECT LEVER
1. Cut plastic tie securing speed select lever assembly to
the shifter bracket. (See Figure 7)
2. Remove locknut, washer, spring, and the bolt. (See
Figure 9)
3. Position speed selector lever assembly as shown in
Figure 8.
Shifter Bracket
Plastic Tie
4. Reinstall bolt, spring, washer and locknut. (See Figure 9)
Figure 7
Shift Lever
5. Tighten Iocknut until 1/8 to 3/16 inch of the bolt threads
protrude past the locknut.
6. Thread the plastic knob as far as possible and ensure
that the knob points forward.
7. Tighten the 3/8-16" hexjam nut against the knob secure-
ly.
Control Panel
Figure 8
NOTE: View is from rightside of unit standing in operator's position.8. Move shifter through all speeds to ensure proper tension
of the spring. If shifter lever sticks in any of the notches,
loosen locknut 1/2 turn at a time until shifter lever moves
more freely.
9. If adjustment of speed of snow blower is needed, refer to
"Friction Wheel Adjustment" in the ADJUSTMENT/RE-
PAIR section.
Plastic Knob _8-16 Hex Jam Nut
(pointed
forward)
Shift Lever
Control Panel
Locknut
1_to3/16inchof
Exposed Thread
i I Figure 9
F-031020L 9
