Accessories
WARNING: Since accessories, other than those
offered by CRAFTSMAN, have not been tested with
this product, use of such accessories with this tool
could be hazardous. To reduce the risk of injury, only
CRAFTSMAN recommended accessories should be
used with thisproduct.
Recommended accessories for use with your tool are
available at extra cost from your local dealer or authorized
Replacing the Sanding Pad and the Belt
(Fig. H)
Your sander is equipped with a replaceable belt
11
which
is located between the sanding pad
4
and the sander
body. It is designed to control the pad speed while the unit
is off the work surface. The belt and the sanding pad are
designed to be consumable parts and will occasionally need
to be replaced. The sanding pad needs replacement when
signs of wear become evident. Replacement of the belt is
necessary when the pad speed increases very dramatically
when the unit is lifted from the work surface. These parts are
available at extra cost from your local dealer or authorized
service center.
1. Holding the platen firmly, remove the four screws
12
from the bottom of the sanding pad.
2. Remove the sanding pad
4
.
3. Replace worn or damaged belt
11
by wrapping it
around the shoulder screw
14
and bearing retainer
13
.
4. Reinstall pad (replace with new pad if necessary).
Replace the four screws. Be careful not to over-
tightenscrews.

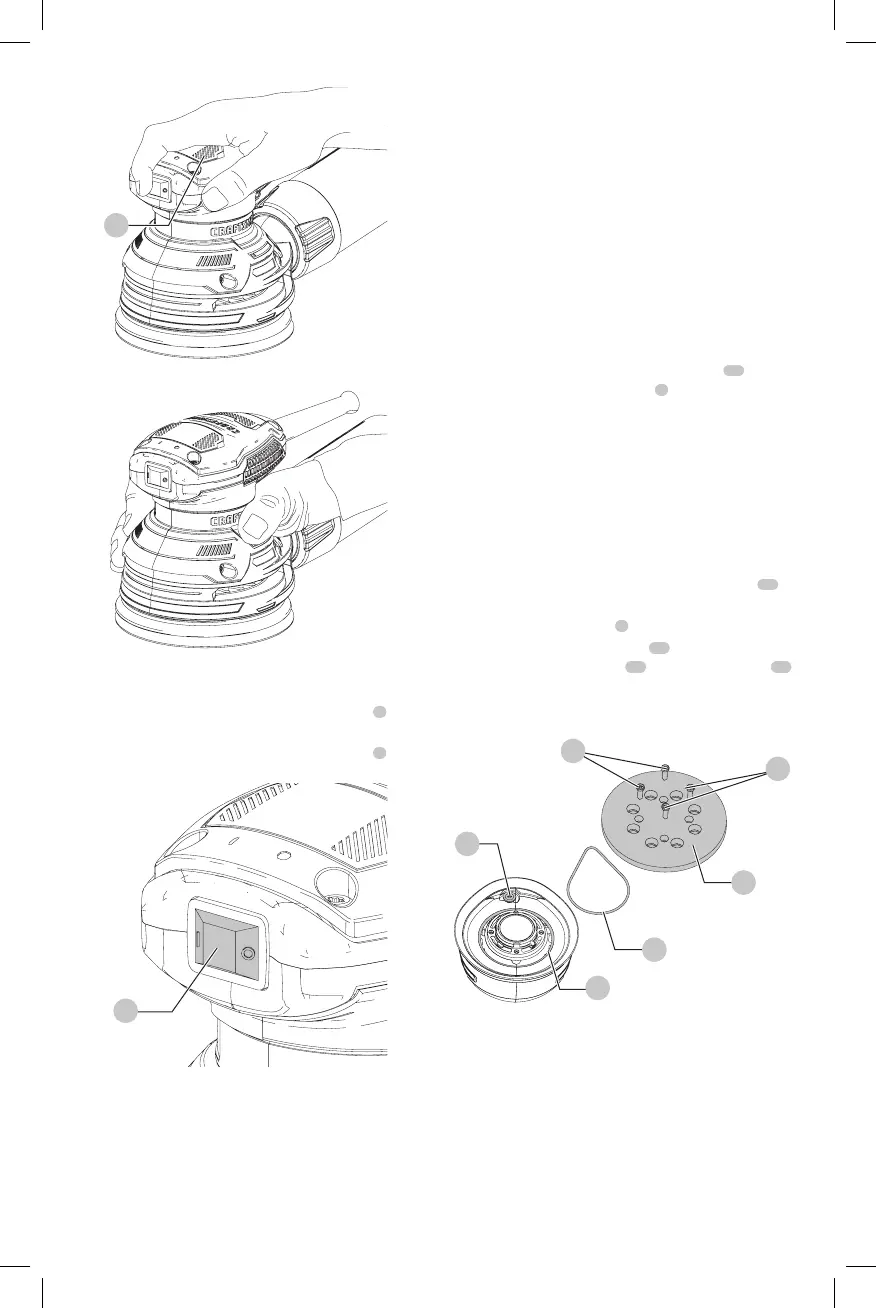

Fig. H
12
12
4
11
14
13
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Fig. E
7
Fig. F
On/Off Switch (Fig. G)
• To switch the tool on, depress the on/off switch
1
at
the “I” position.
• To switch the tool off, depress the on/off switch
1
at
the ”O” position.
Fig. G
1
Sander Operation
WARNING: Let the tool work at its own pace. Do
not overload.
Grasp the sander and turn it ON. Move it in long, sweeping
strokes along the surface, letting it do the work. Pushing
Versatrack Variables
1ST_Figure 1ST_Callout 2ND_Callout
H 15 16
down on the tool while sanding actually slows the removal
rate and produces an inferior quality finish.
Check your work often. This sander is capable of removing
material rapidly.
