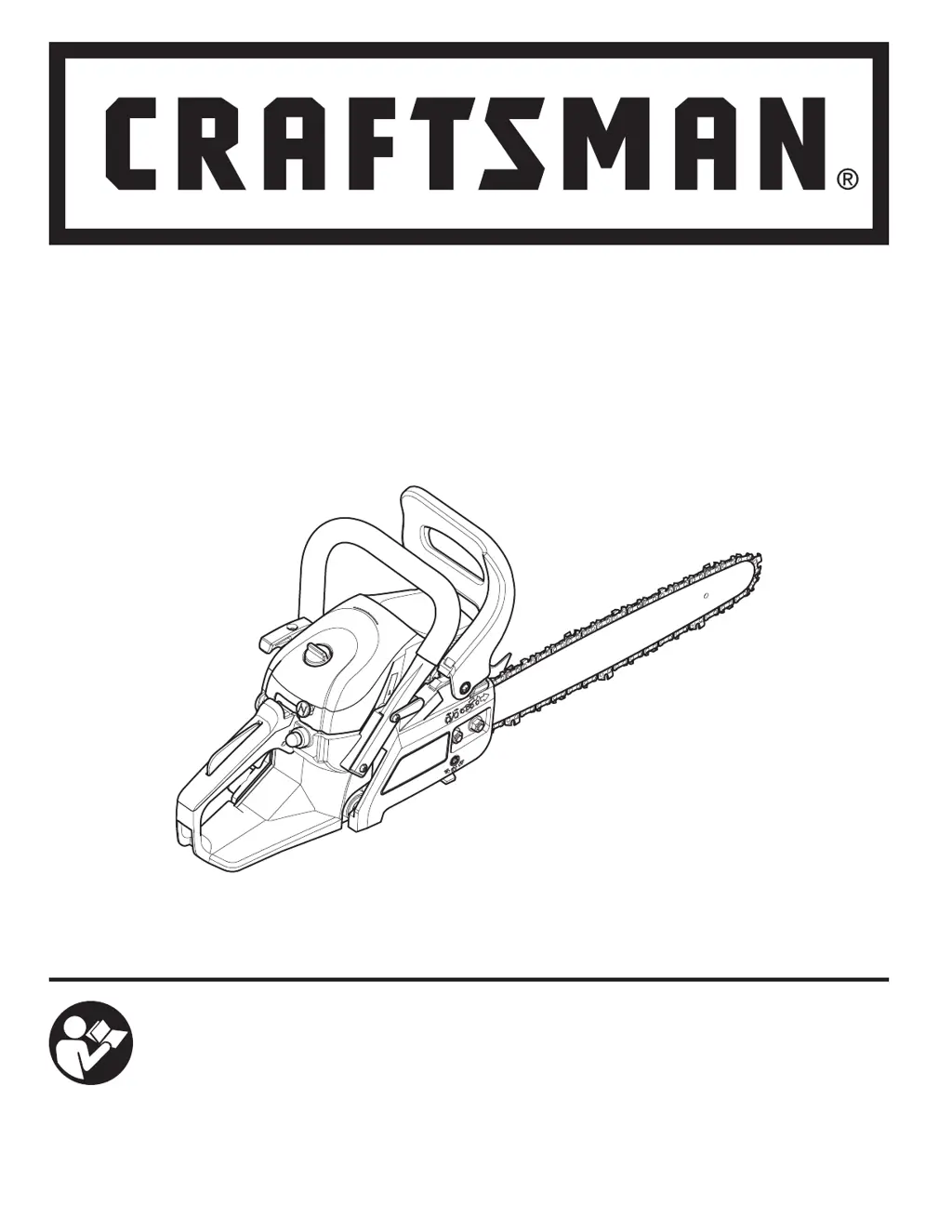

769-20650 / 00 02/19
2-CYCLE GAS CHAINSAW
MOTOSIERRA DE GAS DE 2 TIEMPOS
OPERATOR’S MANUAL | MANUAL DEL OPERADOR
S145 | S160 | S180
CMXGSAMNN4214 | CMXGSAMNN4216 | CMXGSAMCX4218
1-888-331-4569 WWW.CRAFTSMAN.COM
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
ORIGINAL INSTRUCTIONS | TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES

Table of Contents

Other manuals for Craftsman S160

Preview: Operator's Manual
Operator's Manual64 pages

Questions and Answers

  • T
    Timothy BuchananAug 19, 2025
    Why won't my Craftsman Chainsaw engine start?
    • T
      Tammy KingSep 12, 2025
      Several factors can prevent your Craftsman Chainsaw engine from starting. It could be due to an empty fuel tank, which requires filling with properly-mixed fuel. If the primer bulb hasn't been pressed enough, press it 10 times or until fuel is visible. A flooded engine can also be the culprit; in this case, move the choke knob to Position 2, press the throttle lockout, squeeze the throttle control, and pull the starter rope. Old or improperly mixed fuel (over 30 days) necessitates draining the tank and adding fresh fuel. Finally, the spark plug might not be working properly, so refer to the section on maintaining the spark plug.
  • U
    uwilliamsAug 21, 2025
    What to do if my Craftsman S160 guide bar and saw chain are running hot and smoking?
    • A
      Amanda SchmidtAug 21, 2025
      If the guide bar and saw chain of your Craftsman Chainsaw are running hot and smoking, several issues could be responsible. First, the saw chain tension might be too tight; in this case, adjust the saw chain tension. Also, the chain oil reservoir may be empty, so refill it. Another potential cause is dirty guide bar grooves and oil passages, which require cleaning. Lastly, the automatic oiler flow might be too low, so increase the oil flow.
  • N
    Nicole HaasAug 23, 2025
    Why does my Craftsman S160 Chainsaw engine lack power or stall?
    • K
      Kenneth NelsonAug 25, 2025
      If your Craftsman Chainsaw engine lacks power or stalls, the issue might be old or improperly mixed fuel (over 30 days). In this case, drain the fuel tank and add fresh, properly-mixed fuel. A dirty air filter can also cause these problems, so clean or replace the air filter. The spark plug might not be working properly, so refer to the section on maintaining the spark plug.
  • C
    Cassandra HallAug 26, 2025
    What to do if the saw chain on my Craftsman Chainsaw comes off the guide bar?
    • R
      russellgaryAug 26, 2025
      If the saw chain keeps coming off the guide bar on your Craftsman Chainsaw, it could be that the saw chain tension is too loose, so adjust it. Also, the guide bar and saw chain may be assembled incorrectly, so refer to the section on removing and installing the guide bar and saw chain.
  • J
    James HicksAug 28, 2025
    Why won't my Craftsman S160 Chainsaw engine idle?
    • N
      Nicole GreeneAug 28, 2025
      If your Craftsman Chainsaw engine won't idle, it could be due to a dirty air filter, so clean or replace it. Another cause might be old or improperly mixed fuel (over 30 days); in that case, drain the fuel tank and add fresh, properly-mixed fuel. Finally, the idle speed could be incorrect, so adjust the idle speed.
  • C
    Christopher McbrideAug 30, 2025
    What to do if the saw chain rotates but doesn't cut on my Craftsman S160 Chainsaw?
    • W
      William WatsonAug 30, 2025
      If the saw chain on your Craftsman Chainsaw rotates but doesn't cut, the saw chain is likely dull, so sharpen or replace it. Also, the saw chain might be on backwards, so check and correct the saw chain direction.
  • L
    lsuarezSep 1, 2025
    What to do if my Craftsman S160 Chainsaw engine lacks power or stalls?
    • A
      Adam WhiteSep 2, 2025
      If your Craftsman Chainsaw engine lacks power or stalls, it could be due to: * Old or improperly mixed fuel: Drain the fuel tank and add fresh, properly-mixed fuel. * A dirty air filter: Clean or replace the air filter.
  • L
    laura54Sep 4, 2025
    What to do if the Craftsman S160 Chainsaw guide bar and saw chain are running hot and smoking?
    • K
      Kristine NelsonSep 4, 2025
      If the guide bar and saw chain are running hot and smoking, consider the following: * The saw chain tension might be too tight; adjust the saw chain tension. * The chain oil reservoir could be empty; refill it. * The guide bar groove and oil passages may be dirty; clean them. * The automatic oiler flow might be too low; increase the oil flow.
  • N
    Natalie AtkinsSep 6, 2025
    Why Craftsman S160 engine will not accelerate?
    • T
      Tina MartinezSep 6, 2025
      If your Craftsman Chainsaw engine will not accelerate, the possible causes are: * The fuel is old (over 30 days) and/or improperly mixed, so drain the fuel tank and add fresh, properly-mixed fuel. * The air filter is dirty, so clean or replace the air filter.
  • T
    Timothy HoSep 8, 2025
    What to do if my Craftsman S160 saw chain does not rotate?
    • R
      rwardSep 8, 2025
      If the saw chain on your Craftsman Chainsaw does not rotate, check the following: * The saw chain tension might be too tight; adjust it. * The chain brake may be engaged; disengage the chain brake. * Inspect the guide bar and saw chain for damage. Replace them if necessary.

Summary

Important Safety Instructions

Read All Instructions Before Operating

Essential safety guidelines for operating the unit safely and preventing accidents.

Safety Warnings for Gas Units

Specific precautions when handling and using gasoline-powered units.

While Operating

Key safety practices and procedures to follow during unit operation.

Kickback Safety

Understanding Kickback

Kickback Safety Precautions

Other Safety Warnings

Oil and Fuel

Oil and Fuel Mixing Instructions

Details on the correct gasoline and oil mixture ratio and procedures.

Fueling the Unit

Safe procedures for filling the fuel tank, including precautions and steps.

Starting and Stopping

Starting Instructions

Step-by-step guide on how to safely start the chainsaw engine.

Stopping Instructions

Procedures for safely stopping the engine and the chain.

Operation

General guidelines and precautions for operating the chainsaw safely.

Preparing the Work Area

Holding the Unit

Cutting Procedure Basics

Felling

Felling Safety

Safety precautions to reduce risk of injury and damage during tree felling.

Felling Procedure

Step-by-step guide on how to safely fell a tree, including root removal and cuts.

Bucking

Bucking Safety

Bucking Procedure

Maintenance

Maintenance Schedule

Customer Responsibility

Adding Bar and Chain Oil

Adjusting the Chain Tension

Removing and Installing the Guide Bar and Saw Chain

Maintaining the Saw Chain

Sharpening the Saw Chain

Maintaining the Guide Bar

Replacing the Guide Bar and Saw Chain

Maintaining the Air Filter

Adjusting the Idle Speed

Maintaining the Spark Plug

Cleaning and Storage

Cleaning

Storage

Troubleshooting

Craftsman S160 Specifications

General IconGeneral
Engine Displacement42 cc
Bar Length16 inches
Power SourceGasoline
Chain Pitch3/8 inch
Chain Gauge0.050 in
TypeGas Chainsaw
Oil Capacity6.8 oz
