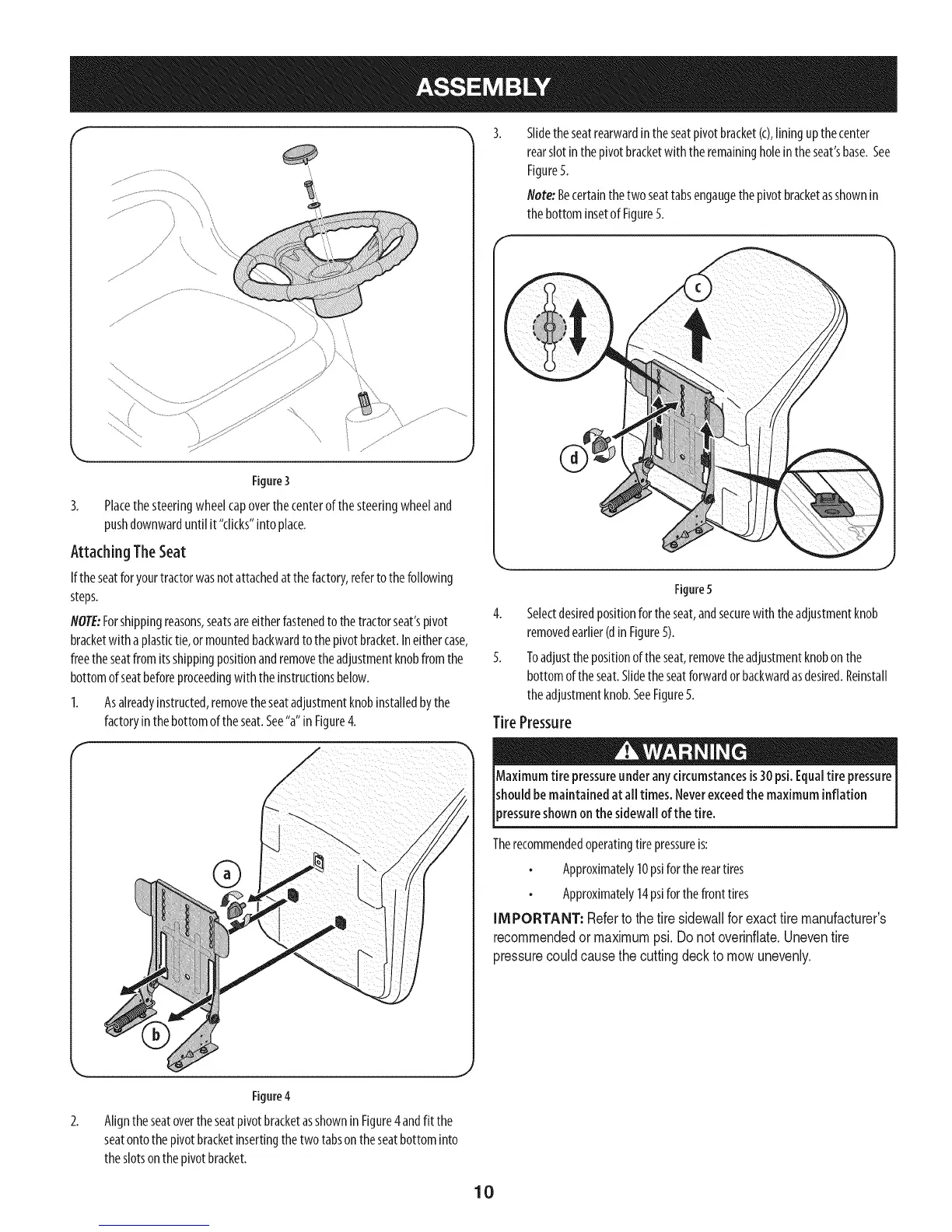

F
\
Figure3
3.
Placethesteeringwheelcapoverthecenterofthesteeringwheeland
pushdownwarduntilit"clicks"intoplace.
Attaching TheSeat
If theseatforyourtractorwasnotattachedatthefactory,referto thefollowing
steps.
NOTE:Forshippingreasons,seatsareeitherfastenedtothetractorseat'spivot
bracketwith a plastictie,ormountedbackwardto thepivotbracket.Ineithercase,
freetheseatfromitsshippingpositionandremovetheadjustmentknobfromthe
bottomofseatbeforeproceedingwith theinstructionsbelow.
1. Asalreadyinstructed,removetheseatadjustmentknobinstalledbythe
factoryin thebottomoftheseat.See"a"in Figure4.
®
Slidetheseatrearwardin theseatpivotbracket(c),liningupthecenter
rearslotinthepivotbracketwith theremainingholeintheseat'sbase.See
Figure5.
Note:Becertainthetwo seattabsengaugethepivotbracketasshownin
thebottominsetof Figure5.
Figure5
4. Selectdesiredpositionfortheseat,andsecurewith theadjustmentknob
removedearlier(din Figure5).
5. Toadjustthepositionof theseat,removetheadjustmentknobonthe
bottomof theseat.Slidetheseatforwardor backwardasdesired.Reinstall
theadjustmentknob.SeeFigure5.
Tire Pressure
Maximumtire pressureunder anycircumstancesis30psi.Equaltire pressure
shouldbemaintained atall times. Neverexceedthe maximuminflation
)ressureshownonthe sidewallof the tire,
Therecommendedoperatingtirepressureis:
Approximately10psiforthereartires
Approximately14psiforthefronttires
IMPORTANT: Referto thetire sidewallfor exacttire manufacturer's
recommendedormaximumpsi.Donotoverinflate.Uneventire
pressurecouldcausethe cuttingdeckto mowunevenly.
2.
Figure4
Aligntheseatovertheseatpivotbracketasshownin Figure4andfit the
seatontothepivotbracketinsertingthetwo tabsontheseatbottominto
theslotsonthepivotbracket.
10
