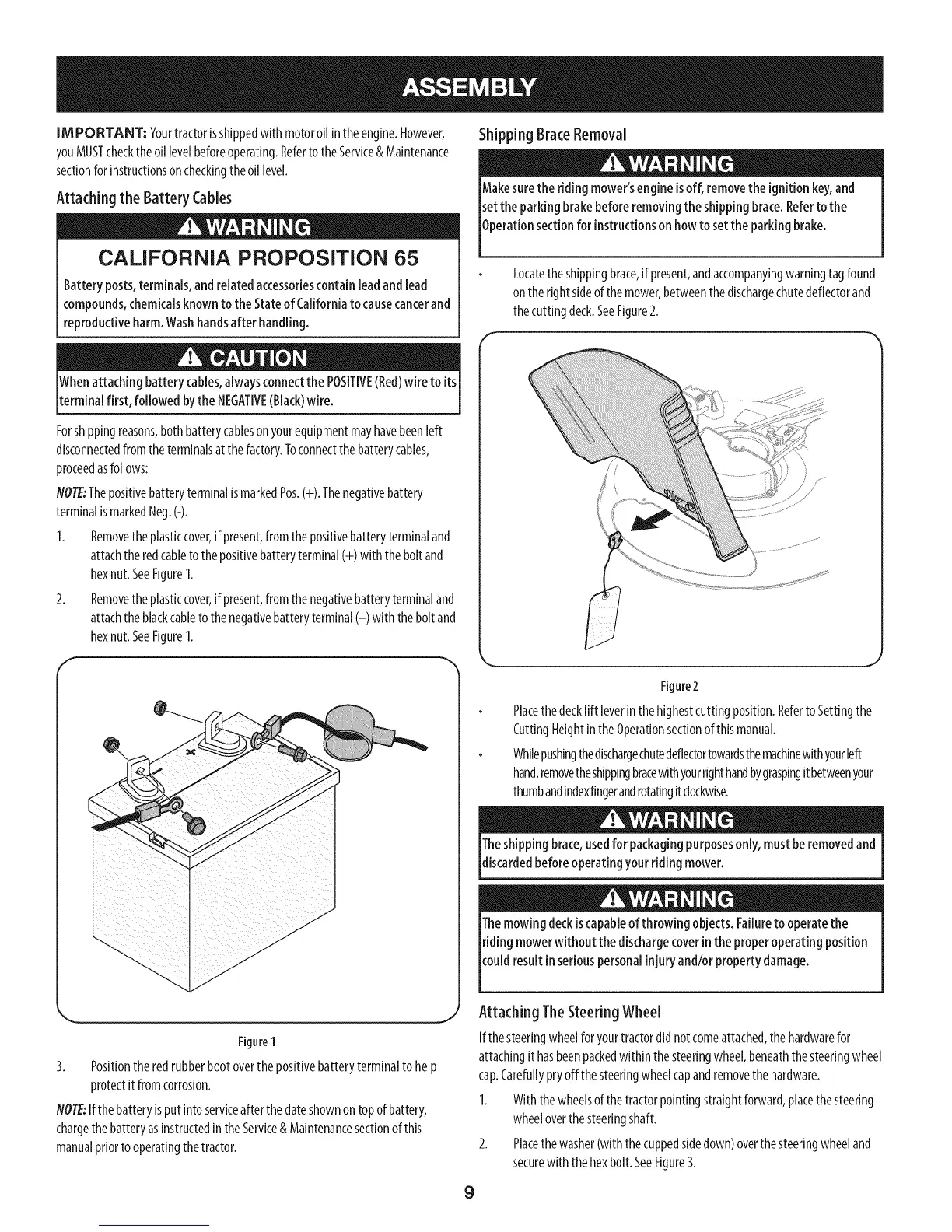

Page #9 background imageLoading...
Page #9 background image
IM PORTANT: Yourtractorisshippedwith motoroil intheengine.However,
youMUSTchecktheoillevelbeforeoperating.RefertotheService& Maintenance
sectionforinstructionsoncheckingtheoillevel.
Attaching the Battery Cables
CALIFORNIA PROPOSITION 65
Batteryposts,terminals,andrelatedaccessoriescontain leadandlead
compounds,chemicalsknown tothe Stateof Californiato causecancerand
reproductiveharm.Washhandsafter handling.
Shipping BraceRemoval
Makesurethe ridingmower'sengineisoff, removethe ignition key,and
setthe parkingbrakebeforeremovingthe shippingbrace.Refertothe
Operatonsect onfor nstructonsonhow to set the park ng brake.
Locatetheshippingbrace,if present,andaccompanyingwarningtagfound
ontherightsideof themower,betweenthedischargechutedeflectorand
thecuttingdeck.SeeFigure2.
Whenattaching battery cables,alwaysconnectthe POSITIVE(Red)wire to its
terminal first, followed bythe NEGATIVE(Black)wire.
Forshippingreasons,bothbatterycablesonyourequipmentmayhavebeenleft
disconnectedfromtheterminalsat thefactory.Toconnectthe batterycables,
proceedasfollows:
NOTE:ThepositivebatteryterminalismarkedPos.(+).Thenegativebattery
terminalismarkedNeg.(-).
1. Removetheplasticcover,ifpresent,fromthepositivebatteryterminaland
attachtheredcableto thepositivebatteryterminal(+) with theboltand
hexnut.SeeFigure1.
2. Removetheplasticcover,ifpresent,fromthenegativebatteryterminaland
attachtheblackcabletothenegativebatteryterminal(-) with theboltand
hexnut.SeeFigure1.
f
J
J
J
J
J
Figure1
3. Positionthe redrubberbootoverthepositivebatteryterminaltohelp
protectit fromcorrosion.
NOTE:Ifthebatteryisput intoserviceafterthedateshownontopofbattery,
chargethe batteryasinstructedin theService& Maintenancesectionofthis
manualpriorto operatingthetractor.
J
Figure2
Placethedecklift leverin thehighestcutting position.Referto Settingthe
CuttingHeightintheOperationsectionof thismanual.
Whilepushingthedischargechutedeflectortowardsthemachinewithyourleft
hand,removetheshippingbracewithyourrighthandbygraspingitbetweenyour
thumbandindexfingerandrotatingitclockwise.
9
Theshipping brace,usedfor packagingpurposesonly,must beremovedand
discardedbeforeoperatingyour riding mower.
Themowing deckiscapableof throwing objects.Failureto operatethe
ridingmowerwithout the dischargecoverinthe properoperating position
coud resut n setouspersona njury and/or property damage.
Attaching TheSteeringWheel
Ifthesteeringwheelforyourtractordid notcomeattached,thehardwarefor
attachingit hasbeenpackedwithin thesteeringwheel,beneaththesteeringwheel
cap.Carefullypryoffthe steeringwheelcapandremovethehardware.
I. Withthewheelsof thetractorpointingstraightforward,placethesteering
wheeloverthesteeringshaft.
2. Placethewasher(withthecuppedsidedown)overthesteeringwheeland
securewith thehexbolt.SeeFigure3.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Craftsman T1000 and is the answer not in the manual?

Craftsman T1000 Specifications

General IconGeneral
EngineBriggs & Stratton
Engine Displacement540cc
Horsepower19 HP
Cutting Width42 inches
Engine Type4-Cycle
Transmission TypeHydrostatic
Warranty2 years
