INSTALLING AND ADJUSTING THE HANDLE
Installing the Handle
1. Push the handle down onto the upper shaft housing (Fig. 8 or
Fig. 9). Make sure the bolt hole faces to the right (Fig. 8 or Fig. 9).
2. Insert the bolt into the bolt hole and push it through (Fig. 8 or
Fig. 9). Tighten the bolt with a flat-head screwdriver, but do not
tighten the bolt completely .
3. Hold the unit in the operating position (Fig. 13). Move the handle
up or down the upper shaft housing to a comfortable location
(Fig. 8 or Fig. 9). Make sure the handle is positioned beyond the
end of the safety label (Fig. 8 or Fig. 9).
4. Tighten the bolt with a flat-head screwdriver until the handle is
secure.
Adjusting the Handle
If the handle requires adjustment:
1. Loosen the bolt with a flat-head screwdriver (Fig. 8 or Fig. 9).
2. Hold the unit in the operating position (Fig. 13). Move the handle
up or down the upper shaft housing to a comfortable location
(Fig. 8 or Fig. 9). Make sure the handle is positioned beyond the
end of the safety label (Fig. 8 or Fig. 9).
3. Tighten the bolt with a flat-head screwdriver until the handle is
secure.

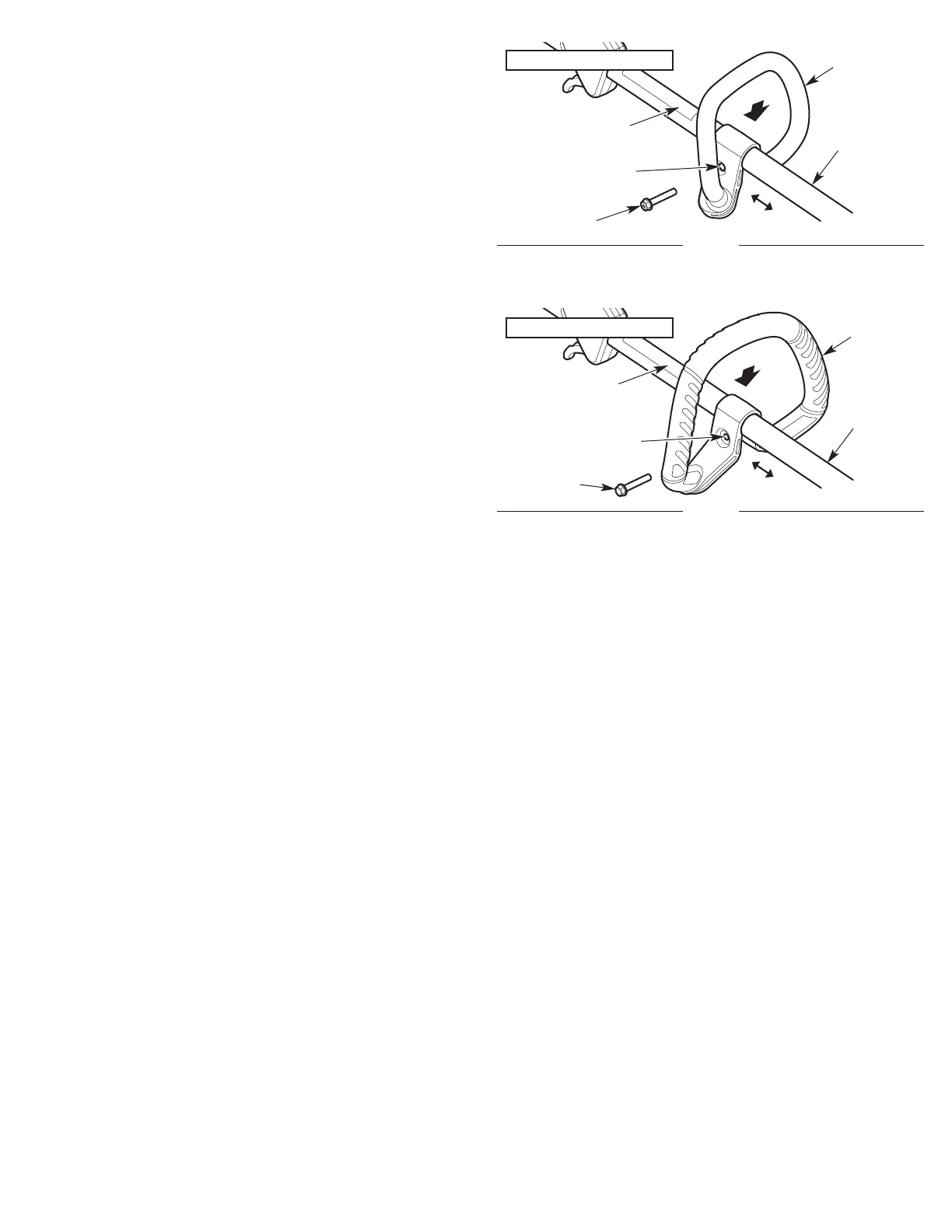

Fig. 8
Bolt Hole
Handle
Upper Shaft
Housing
Bolt
Safety Label
Fig. 9
Bolt Hole
Handle
Upper Shaft
Housing
Bolt
Safety Label
WC215 / CMXGTAMDZ20C
WS215 / CMXGTAMDZ22C
