3. Pivotshielduntilboltpasses
throughholeinbracket.
4. Securelytightenwingnutontobolt.
Slot
Bracket
PIVOT
Shield

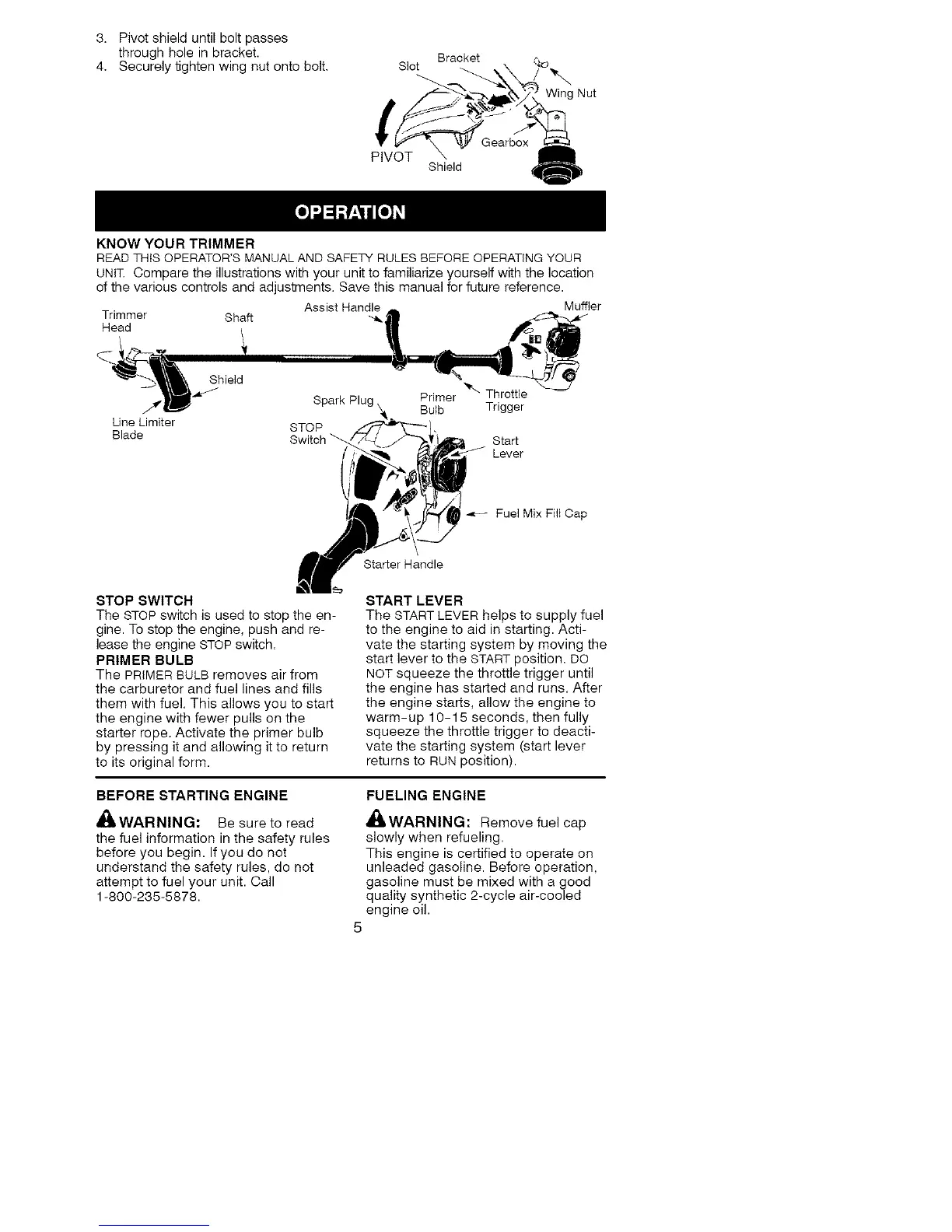

KNOW YOUR TRIMMER
READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location
of the various controls and adjustments. Save this manual for future reference.
Assist Handle Muffler
Trimmer Shaft "-_
Head _,
,,,,,_'_J_ Primer _ Throttle
Bulb Trigger
Line Limiter STOP
Blade
Start
Lever
Fuel Mix Fill Cap
Starter Handle
STOP SWITCH
The STOP switch is used to stop the en-
gine. To stop the engine, push and re-
lease the engine STOP switch.
PRIMER BULB
The PRIMER BULB removes air from
the carburetor and fuel lines and fills
them with fuel. This allows you to start
the engine with fewer pulls on the
starter rope. Activate the primer bulb
by pressing it and allowing it to return
to its original form.
START LEVER
The START LEVER helps to supply fuel
to the engine to aid in starting. Acti-
vate the starting system by moving the
start lever to the START position. DO
NOT squeeze the throttle trigger until
the engine has started and runs. After
the engine starts, allow the engine to
warm-up 10-15 seconds, then fully
squeeze the throttle trigger to deacti-
vate the starting system (start lever
returns to RUN position).
BEFORE STARTING ENGINE
_WARNING: Be sure to read
the fuel information in the safety rules
before you begin. If you do not
understand the safety rules, do not
attempt to fuel your unit. Call
1-800-235-5878.
FUELING ENGINE
_,WARNING: Remove fuel cap
slowly when refueling.
This engine is certified to operate on
unleaded gasoline. Before operation,
gasoline must be mixed with a good
quality synthetic 2-cycle air-cooled
engine oil.
5
