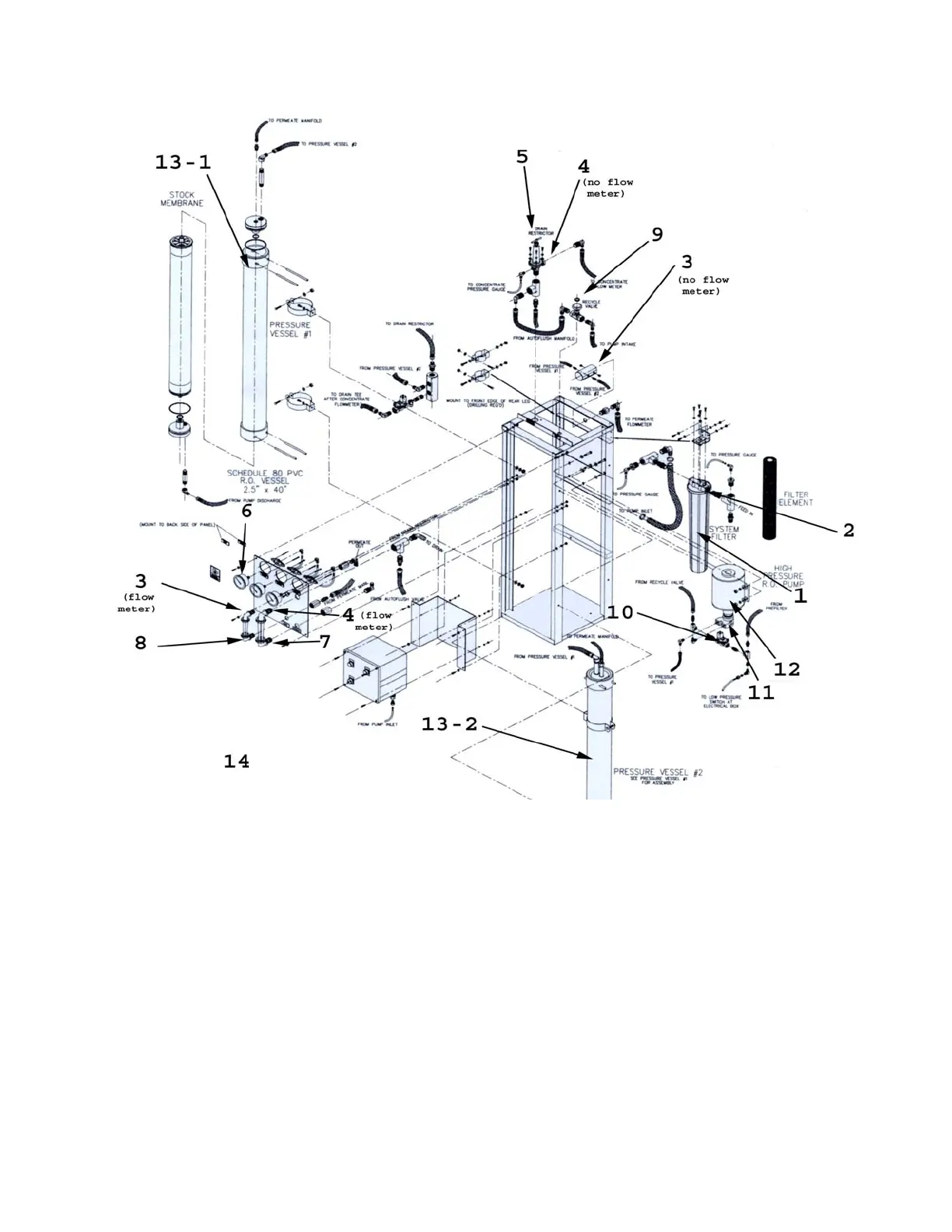

FIG. 3: EPRO-150 to 1200 Diagram
1. PRE-FILTER HOUSING
2. FEED WATER INLET
3. PERMEATE OUTLET
4. CONCENTRATE OUTLET
5. CONCENTRATE CONTROL VALVE
6. CONCENTRATE PPRESSURE VALVE
7.* CONCENTRATE FLOW METER
8.* PERMEATE FLOW METER
9.* WASTE RECYCLE VALVE
10. INLET SOLENOID VALVE
11. PUMP
12. MOTOR
13. PRESSURE VESSEL (SEE BELOW)
14.* CONTROL BOX (LOW PRESSURE
OPTIONS / FLOAT SWITCH
* INDICATES THAT THE ITEM IS OPTIONAL.
NOTE:
THE SIZE AND NUMBER OF THE PRESSURE VESSLES VARIES ACCORDING TO
EPRO MODEL.
EPRO 150-8000 O&M MANUAL Rev.04/03 Page 16 of 55
