Assembly Instructions (cont)
Step 2
(44) M8*20 screw - 4pcs
(36) OD20*ID8.5* 1.5T
5MM allen wrench

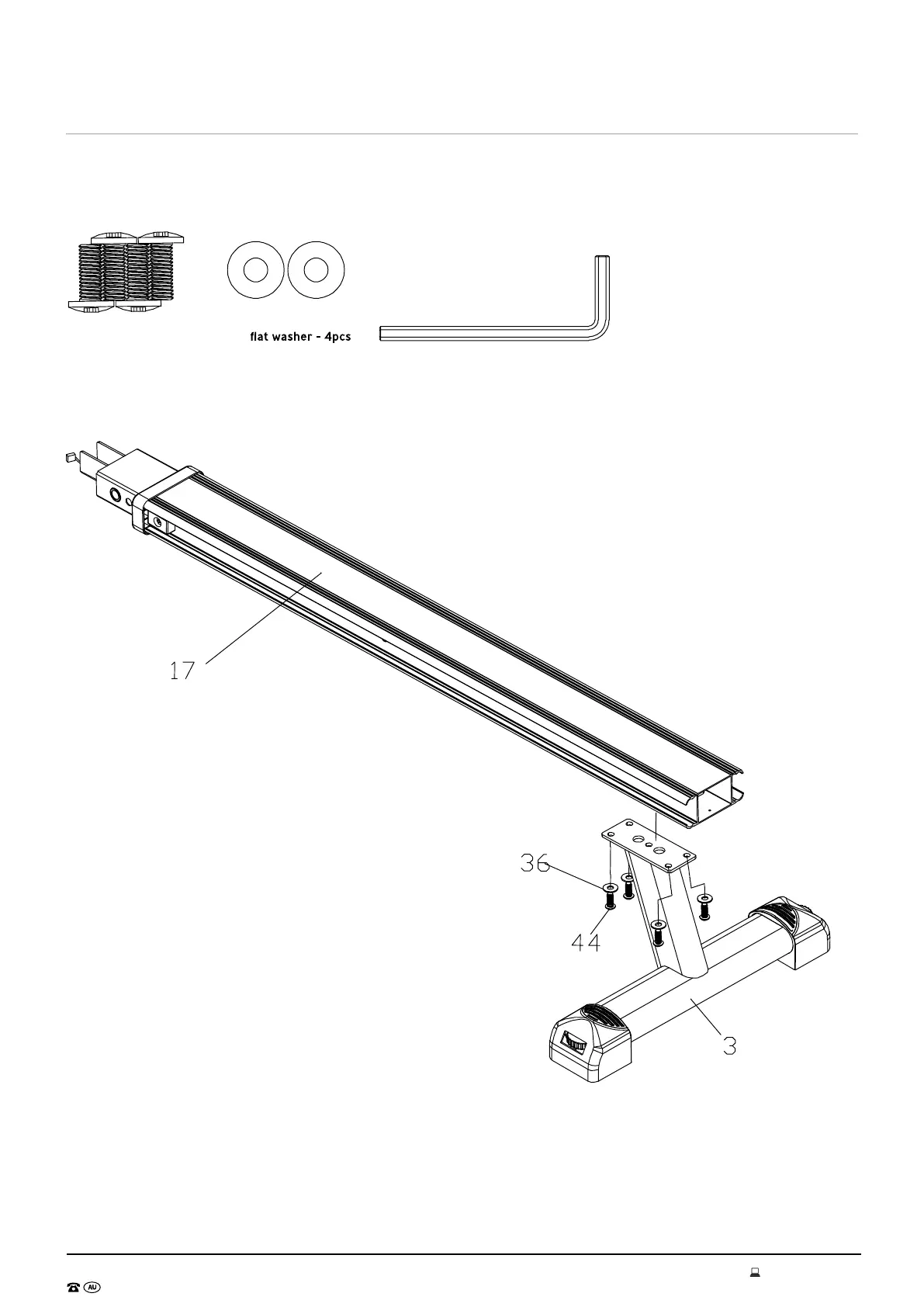

Insert 2 x M8*20 screws (44) and 2 x washers (20) through the holes of the Rear Support (3). Lock
them up tight to the rear underneath of the Sliding rail (17) with the 5mm Allen wrench.
