How To Store the Rower
Step 1

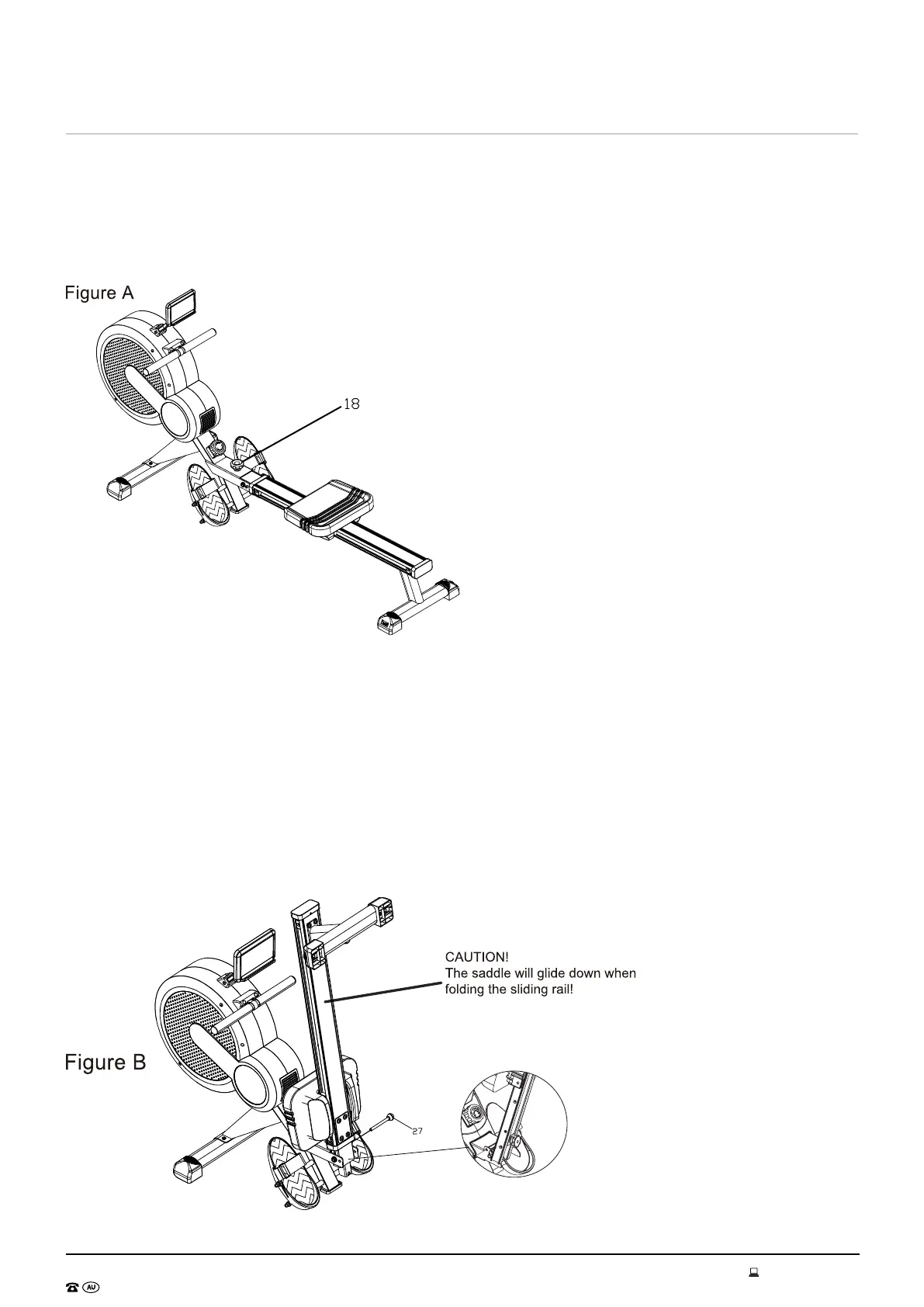

Disassemble Adjust knob (18), M12 nut (32), washer(31) and Pull pin (27). Fold the sliding rail to vertical
angle (Figure A).
NOTE: The saddle will glide down when folding the rail.
CAUTION! Move with caution when you vertically fold the Sliding rail(17) as your head may touch the
Rear Support (3)
Step 2
Insert Pull pin (27) into the hole on the main frame as shown so that sliding rail could be blocked.
Then place Adjust knob (18), M12 nut (32), washer(31) somewhere before you use them. (Figure B)
To Next Page
