MODEL: S002391 PRODUCT CODE: 14498 06/2020
Assembly Instructions (cont)

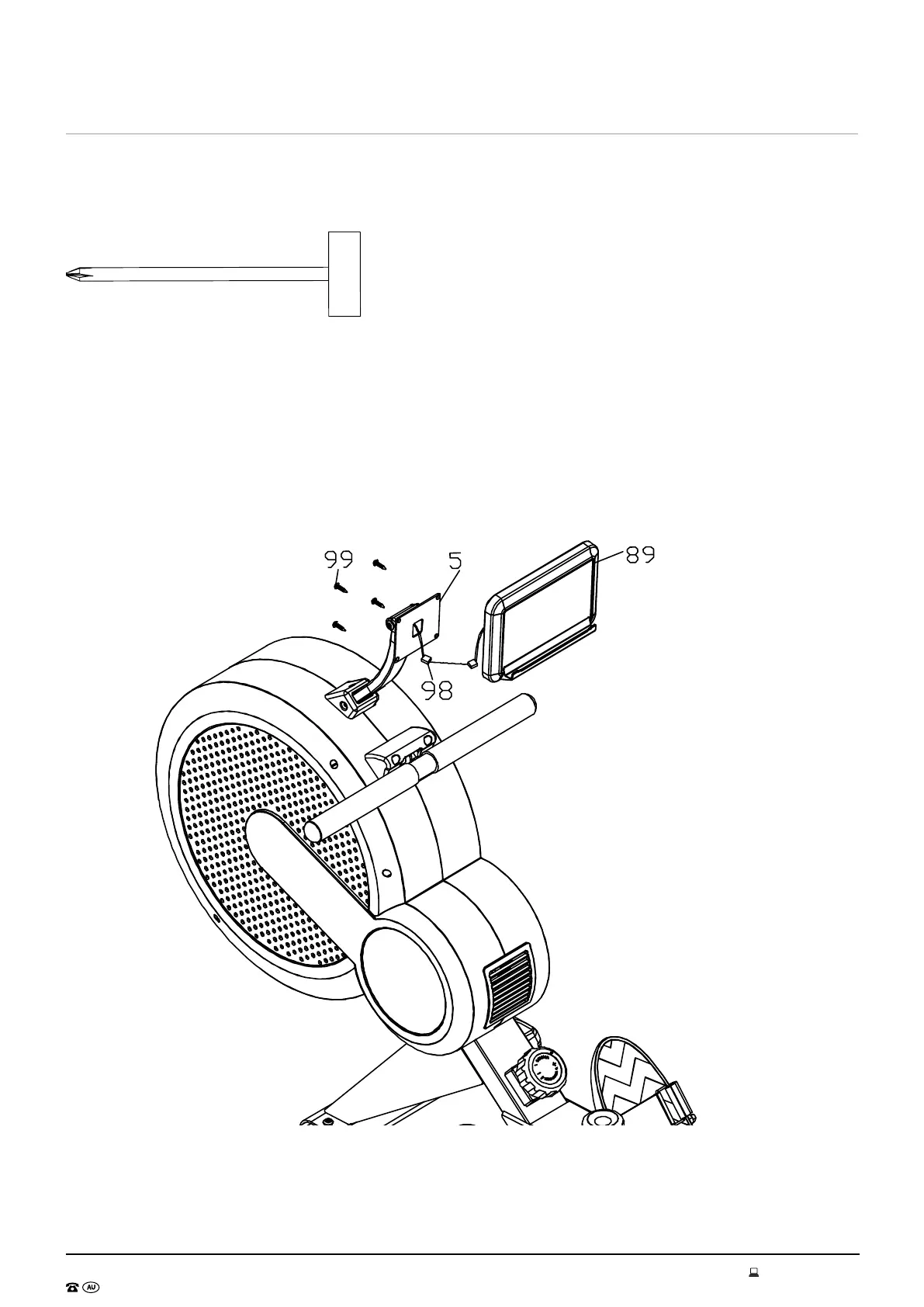

Step 7
Remove 4 x M5*10 flat screws (99) which are pre-assembled on the back of the console (89).
Connect the Console wire (98) out of the Console plate (5) with the wire out of back of console.
Use the removed screws to lock the console firm on the plate.
Spanner screw driver
