Crate CA125D User Manual

CA125D Acoustic Amplifier
5
3536 34 32 31 30 29 2833

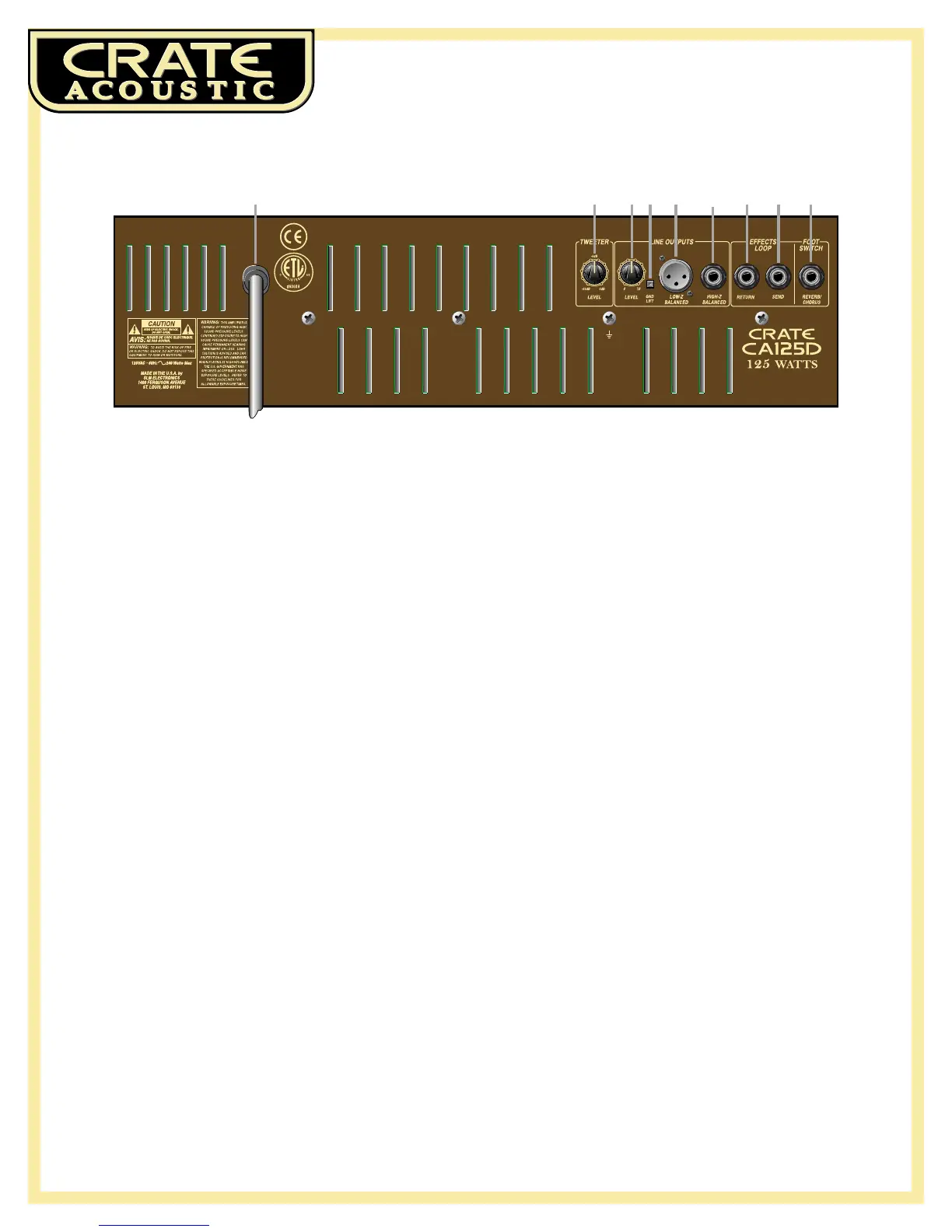

The Rear Panel:
28: Footswitch. Connect the supplied two-button footswitch here for
remote on/off control of the internal reverb and chorus. (When con-
nected, the footswitch overrides the front panel chorus on/off
switch.)
Note: This is a STEREO jack: tip controls the chorus, ring controls the
reverb, sleeve is ground. Use only a footswitch equipped with a stereo
1/4” plug.
29: Effects Loop Send. When using an external signal processor, connect
this jack to the input of the effect by means of a shielded signal cable.
30: Effects Loop Return. When using an external signal processor, con-
nect this jack to the output of the effect by means of a shielded signal
cable.
31: High Z Balanced Line Output. Use this jack to connect a high imped-
ance, line level signal to a house sound board, a recording console or
an external power amplifier by means of an 1/4” stereo plug-termi-
nated cable. (Ring is signal +, tip is signal -, and sleeve is ground.)
32: Low Z Balanced Line Output. Use this jack to connect a low imped-
ance, line level signal to a house sound board, a recording console or
an external power amplifier by means of an XLR-terminated cable.
(Pin 1 is ground, pin 2 is signal +, and pin 3 is signal -.)
33: Gnd Lift. This switch, when depressed, electronically disconnects the
Low Z Balanced Output jack’s chassis ground connection. If you
experience excessive noise when using the Low Z Balanced Output
jack, depress this switch.
34: Line Output Level. Use this control to adjust the output level of the
line out signal. (This control works independently from the amplifi-
er’s master level control.)
35: Tweeter Level. Use this control to adust the signal output level from
the CA125D’s internal tweeter. Rotating this control counter-clock-
wise reduces the tweeter’s output level.
36: AC Line Cord. The grounded power cord should only be plugged
into a grounded power outlet that meets all applicable electrical
codes and is compatible with the voltage, power and frequency
requirements stated on the rear panel. Do not attempt to defeat the
safety ground connection!

Crate CA125D Specifications

Power

output power rating	125 watts RMS
woofer amp	2 x 50 watts RMS @1% THD
tweeter amp	25 watts RMS @1% THD

Input Specifications

input impedance (active)	25k ohm
input impedance (piezo)	2.2M ohm
input sensitivity (active)	22mV RMS
input sensitivity (piezo)	9mV RMS

Voc./Mic Channel

input impedance (Lo-Z)	3k ohm
input impedance (Hi-Z)	20k ohm
input sensitivity (Lo-Z)	3mV RMS
input sensitivity (Hi-Z)	15mV RMS

Auxiliary Channel

input impedance	20k ohm
input sensitivity	15mV RMS
max input signal	10V RMS

Internal Components

internal woofers	2 x 8” w/polypropylene cones, rubber surrounds, 30oz magnet, 1” voice coil, 8 ohms, 50w RMS, 95dB 1w 1m
internal tweeter	High efficiency Piezo, 110dB 1w 1m
internal crossover	Active electronic type

Power Requirements

power requirement (100VAC)	50/60Hz, 160VA
power requirement (120VAC)	60Hz, 160VA
power requirement (230VAC)	50Hz, 160VA

Size and Weight

height	16-3/4”
width	21”
depth	10-1/2”
weight	42 lbs
